Kenmerken:
UTP onafgeschermde LAN-kabel met stugge (solid) geleiders
CCA geleiders
Categorie 5E
Specificaties:

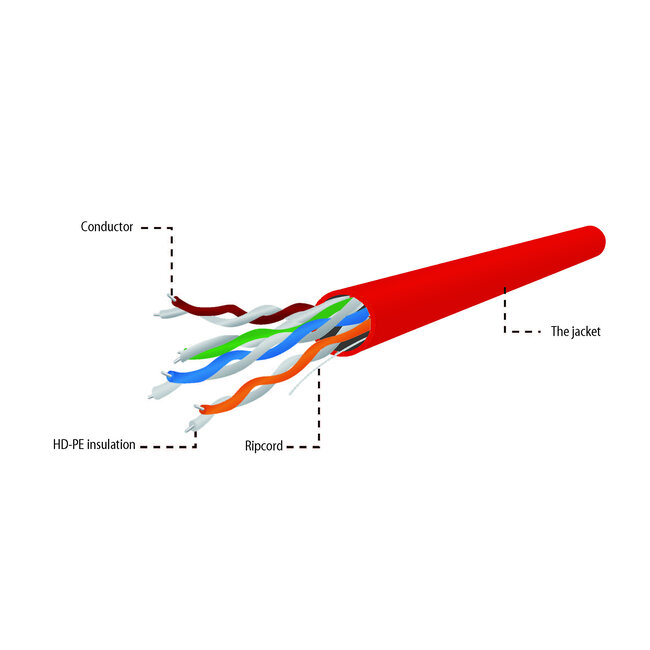

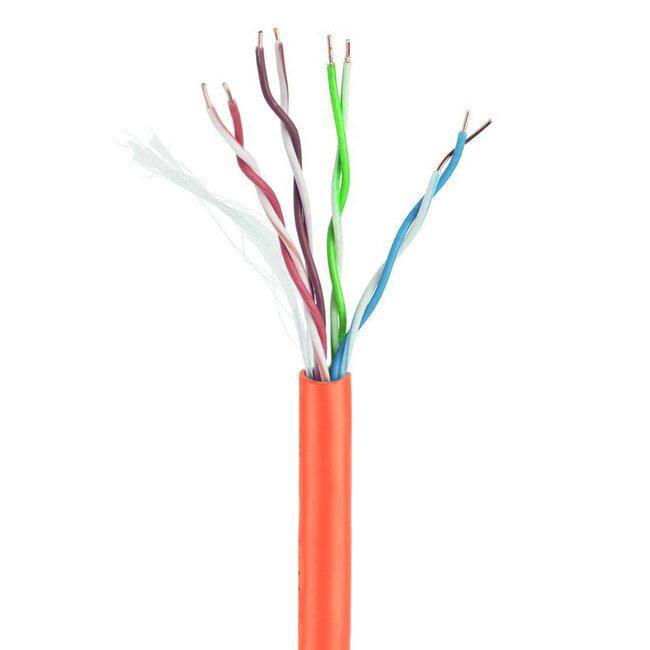

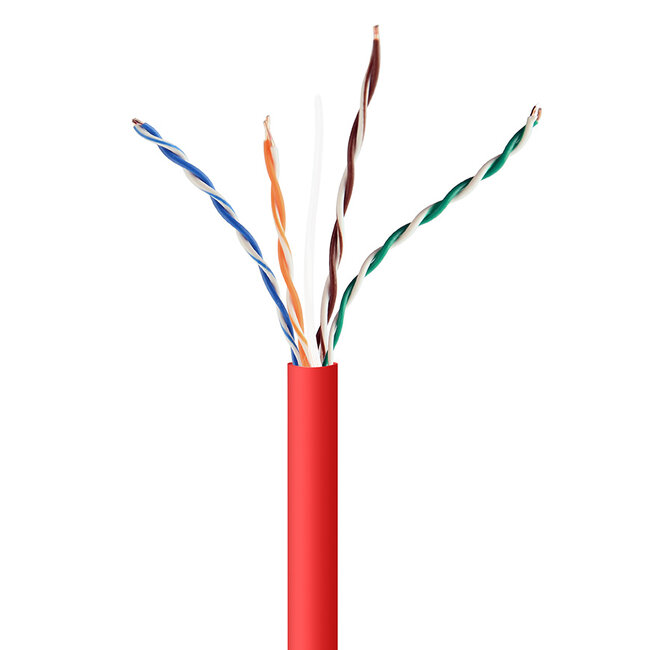

Unshielded twisted pair (UTP) LAN cable
Category 5E
Conductor material: AWG24 solid CCA
Length: 1000 ft (305 m)

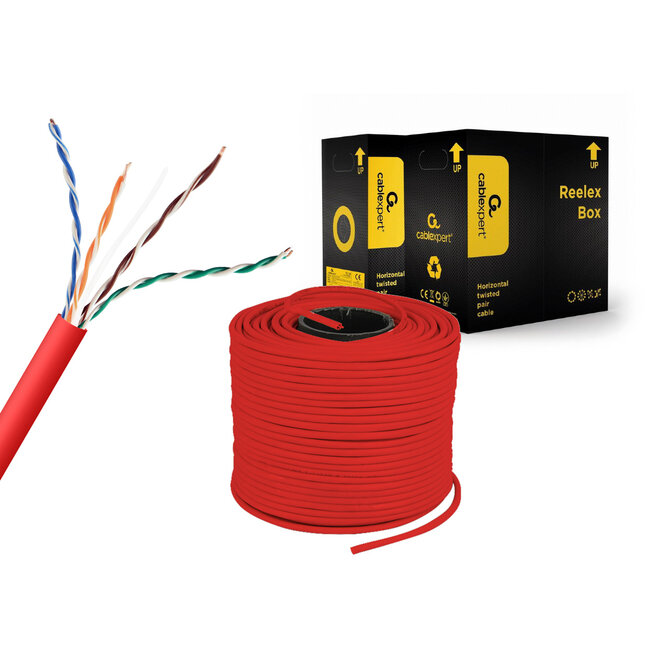

Package: Reelex box
Color: red
Conductor resistance (max): 250 ohm/1000m
Insulation resistance (min): 5M ohm/km
Pair-to-Ground capacitance: < 330PF / 100m
Characteristic impedance: < 100Ohm (+/- 15)
Transport and storage temperature: 0 - 60 degrees
Operating temperature: -20 - 70 degrees
Working distance: <50m
