Description

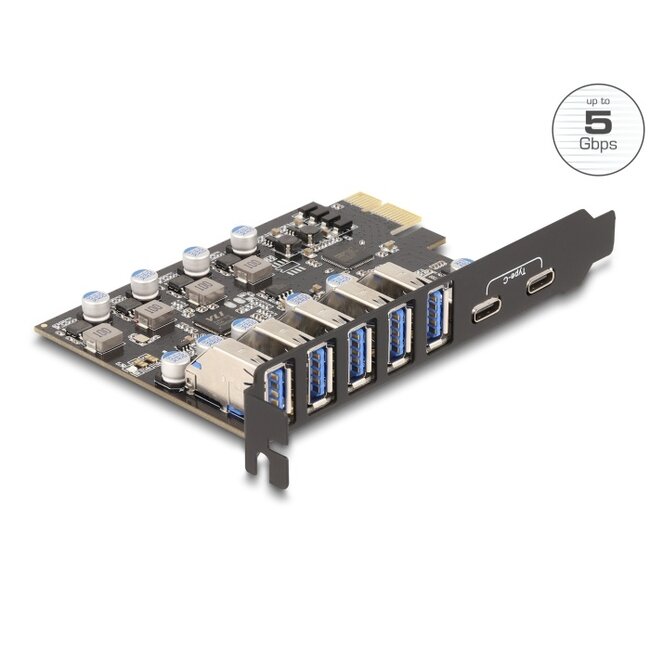

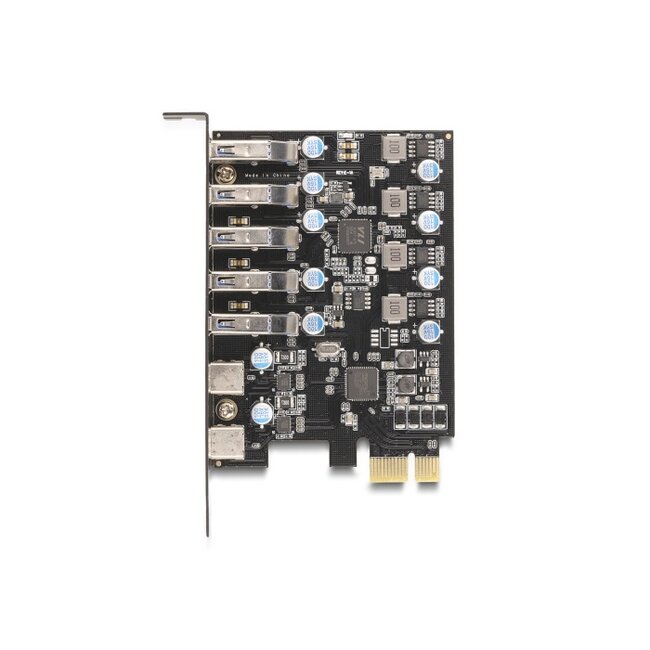

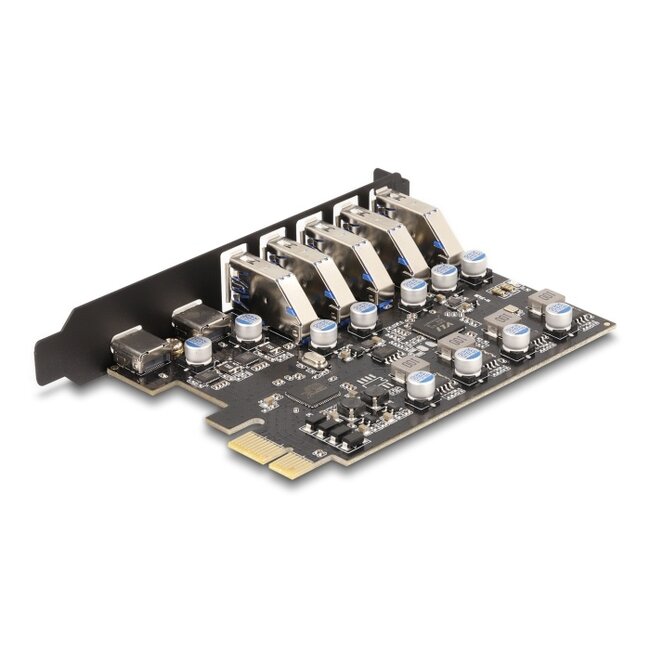

This PCI Express card by Delock expands the PC by five external Type-A and two external USB Type-C™ ports. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected. A maximum data transfer rate of up to 5 Gbps can be reached.

Power supply via PCI Express interface
The card does not need an additional power supply. The power is supplied exclusively via the PCI Express interface.

Specification

• Connectors:
external:
5 x USB 5 Gbps Type-A female
2 x USB 5 Gbps USB Type-C™ female
internal:
1 x PCI Express x1, V2.0
• Chipset: VIA VL817, Fresco Logic FL1100
• Data transfer rate up to 5 Gbps
• Power supply via PCI Express interface
• Electrical power per port: max. 5 watt (5 V / 1 A)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports UASP
• Supports Multiple INs
• Bootable

System requirements

• Linux Kernel 6.5 or above
• Windows 10/10-64/11
• PC with one free PCI Express slot

Package content

• PCI Express card USB 5 Gbps
• User manual
