Kenmerken:
Automatische output voltage regulatie (AVR)
USB interface
LCD status indicatie
Hoor- en zichtbaar alarm
Bescherming tegen kortsluiting alsook blikseminslag
Bescherming tegen stroompieken en -schommelingen
Bescherming tegen overbelasting en -ontlading
Specificaties:
UPS type: line interactive
Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%
Output: 220V AC ± 10%, 50Hz / 60Hz ± 0.5% (on battery)
Switching time: no more than 10 ms (typically 6 ms)
Backup time: 8...20 mins (depends on the load)
Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.5 kg x 2 pcs
Charge time: up to 12 hours

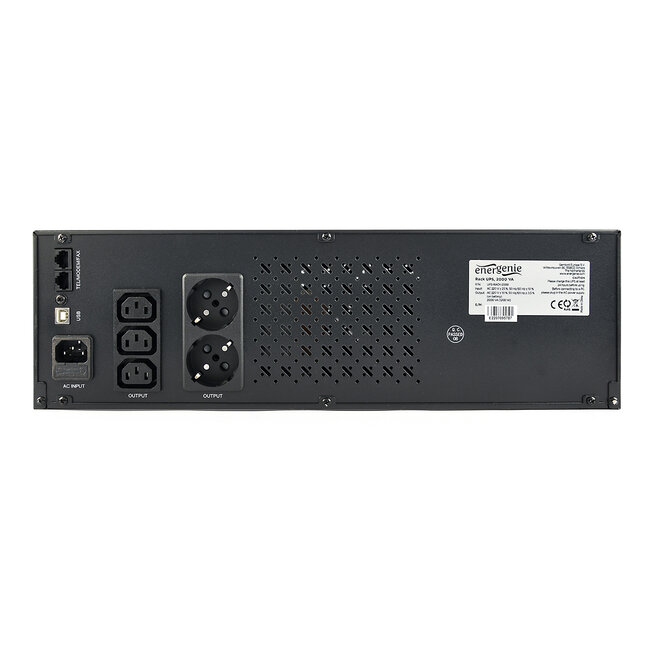

Sockets: IEC13 output x 2 pcs, german Shuko ? 2 pcs; input IEC14, USB-BF control interface, telephone input\output
Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing
Noise: < 45 dB (at 1 meter distance)
Power: 2000 VA (1200 W)
Dimensions: 480 x 150 x 350 mm
Product weight: 16.5 kg
''Cold-start'' function
Systemeisen:
In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
Inhoud:
UPS
Power cord
USB cable
Software CD
Spare fuse
