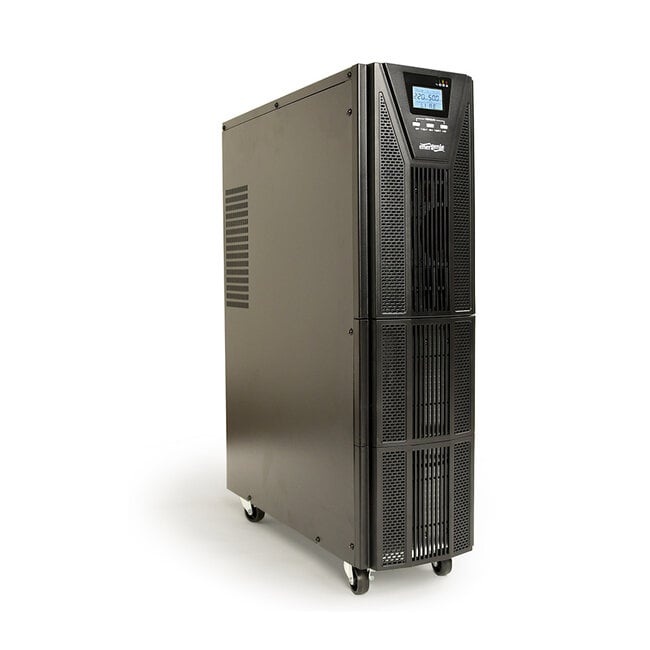

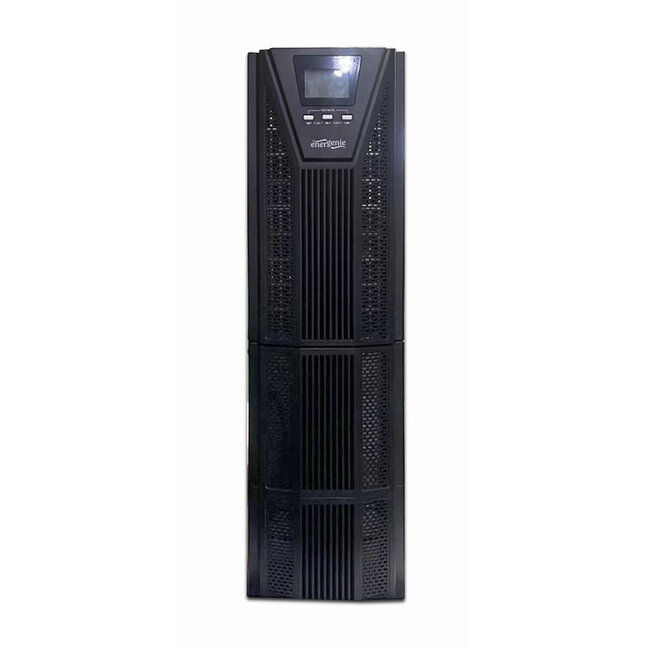

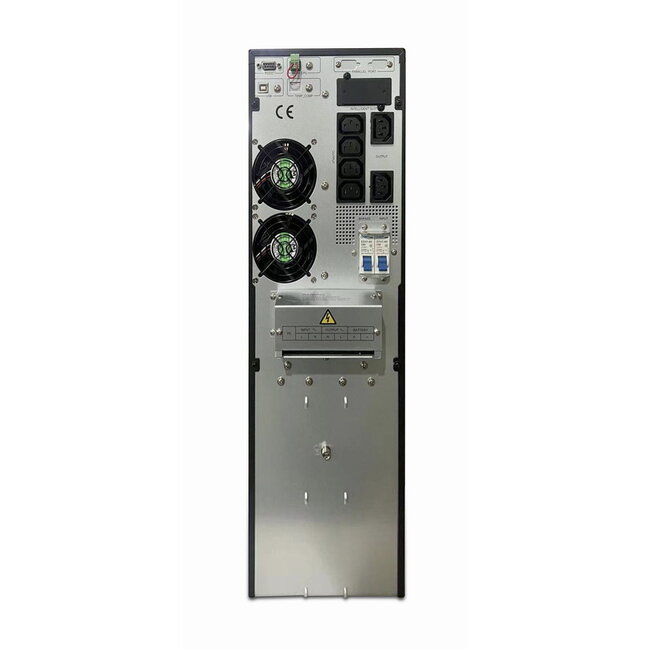

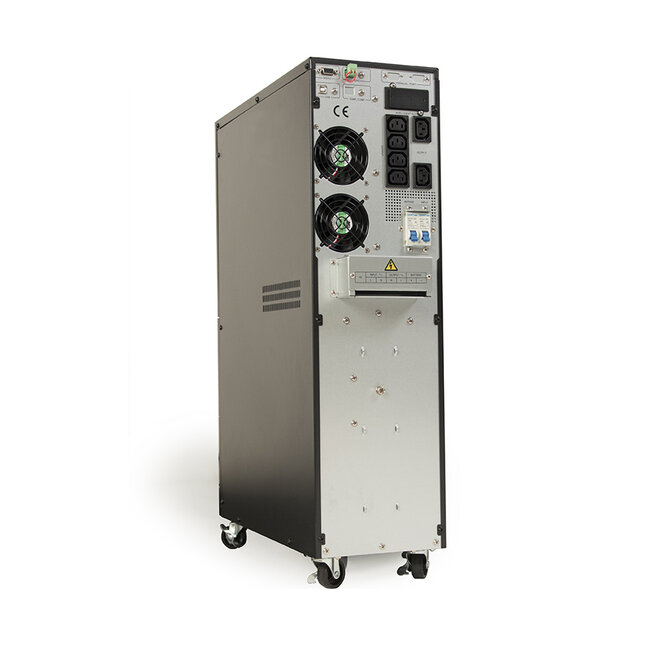

Kenmerken: Online type UPS: double voltage conversion with pure sine wave output without switching the power USB interface Automatic AC voltage regulation (AVR) Intelligent overload- and short-circuit protection Audible and visual alarms LCD display and LED status indication Internal battery with overcharge and over-discharge protection
Specificaties: Type: online Waveform: sine, <2% distortion at linear load (<5% non-linear), PF > 0.99 Input: AC 176 ~ 288 V, 40 - 70 Hz autodetect Output: AC 208 V / 220 V / 230 V / 240 V (settable) ±1%, 45Hz/65Hz autosense Switching time: near 0 ms Backup time: 30 mins (depends on the load) Battery: UPS with sealed lead-acid 12V/7Ah 16 pcs; 192 V DC Charge time: 90% capacity restored in 8 hours Input Sockets: Terminal block input - Single-phase three-wire (1F + N + PE); Output Sockets: Terminal block input; 6x C13 socket outputs Interface communication: USB; optional slots: RS485 / dry contacts / SNMP / battery temperature compensation Operating conditions: 0°C~40°C, at humidity 20~90%RH non condensing Power: 6000 VA (~6000 W) Noise: < 55 dB at 1 m distance Dimensions: 310 x 685 x 941 mm Product weight: 53 kg 'Cold-start' function
Systemeisen: In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
Inhoud: UPS without cords
Specificaties
SKU
UC-G-EG-UPSO-6000
