Kenmerken:
Automatische output voltage regulatie (AVR)
USB interface

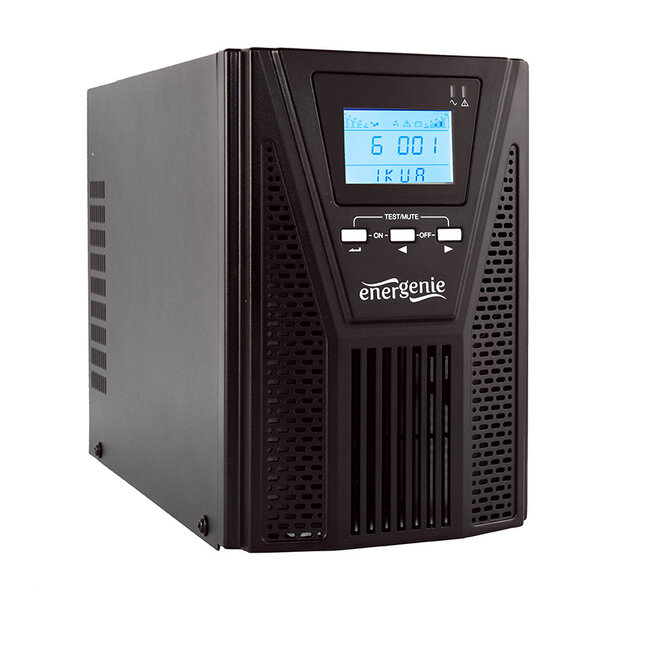

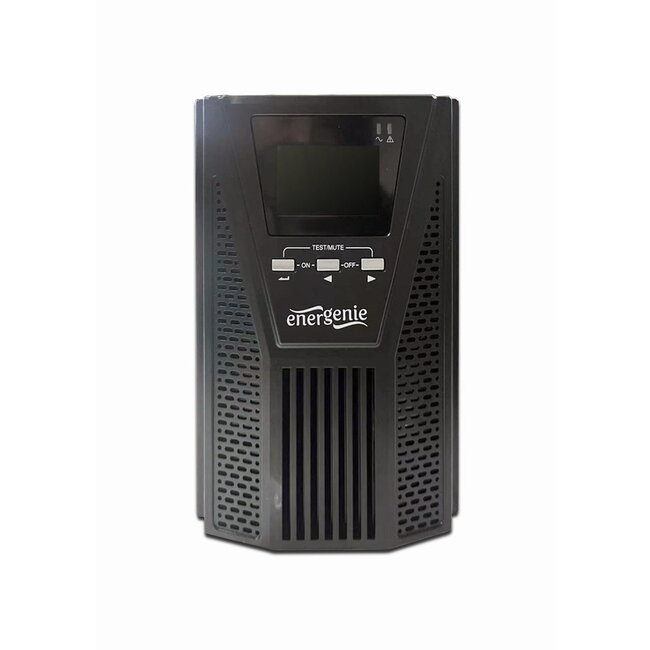

LCD status indicatie
Hoor- en zichtbaar alarm
Bescherming tegen kortsluiting alsook blikseminslag
Bescherming tegen stroompieken en -schommelingen
Bescherming tegen overbelasting en -ontlading
Specificaties:
UPS type: online, pure sine wave
Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%
Output: 220V AC ± 1%, 50Hz / 60Hz ± 0.5% (on battery)
Output power factor: > 0.99
Inverter output efficiency (resistive load): 85%, any load type is allowed
Switching time: zero
Backup time: 8...20 mins (depends on the load)
Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.35 kg x 2 pcs, 24VDC
Charge time: 90% capacity restored in 3 hours
External battery connectors: yes

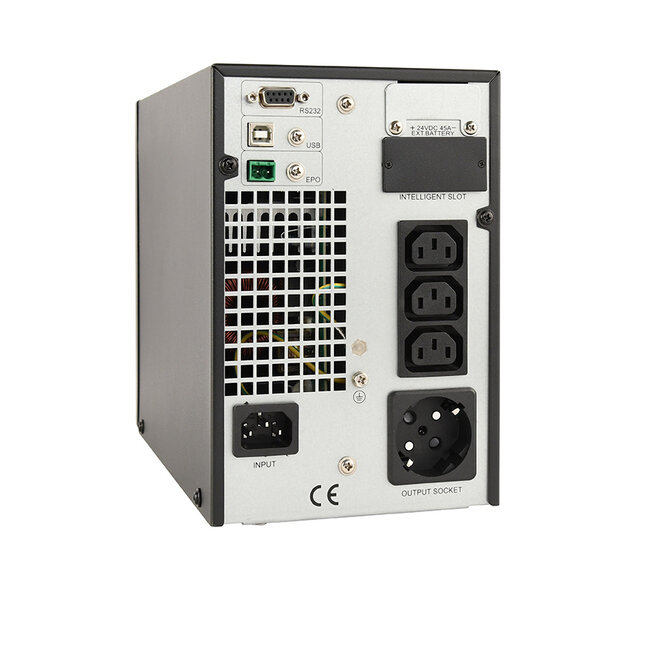

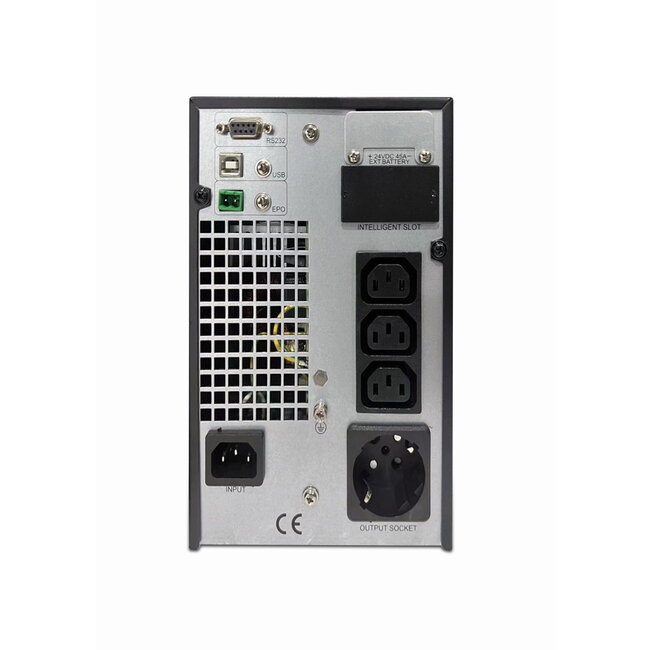

Sockets: input IEC C14, outputs: 1x schuko sockets + 3x IEC sockets
Interface communication: USB; optional slots: RS485 / dry contacts / SNMP
Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing
Noise: < 45 dB (at 1 meter distance)
Power: 1000 VA (900 W)
Dimensions: 144 x 312 x 216 mm
Product weight: 11 kg
''Cold-start'' function
Systemeisen:
In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
Inhoud:
UPS
Power cord
USB cable
Software CD
Spare fuse
