The USB GPS receiver based on u-blox 7 chipset has a built-in antenna for high sensitivity. It is possible to use this GPS receiver with a laptop and suitable routing software for navigation. Due to its compact design it is the ideal companion on every tour.

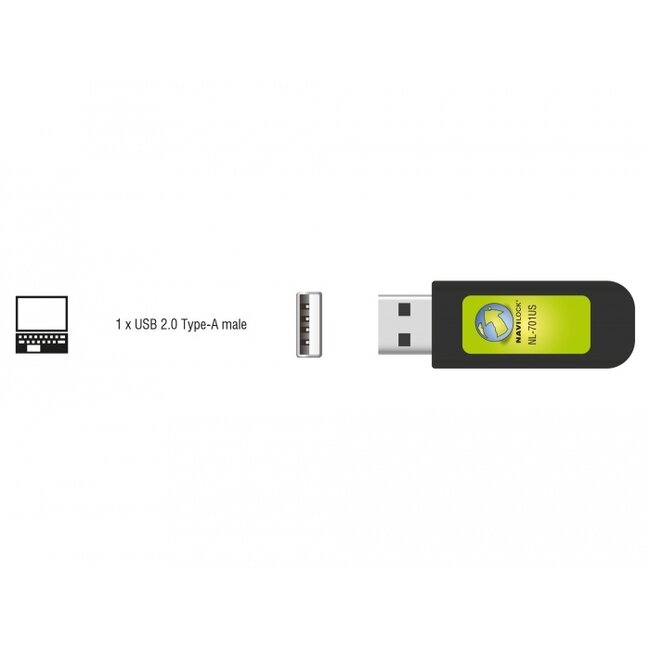

Specification• Connector: 1 x USB 2.0 Type-A male
• Chipset: u-blox UBX-G7020-KT
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602 (k x 0.5625) MHz
QZSS: L1, 1575.4200 MHz
• Accepts the signals of up to 56 satellites at the same time
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG, TXT
• Baud Rate: 9600 bps
• Update rate: 1 Hz
• Sensibility: -162 dBm tracking / -148 dBm acquisition (GPS)
• Operating temperature: -20 °C ~ 60 °C
• Power supply: 5 V DC
• Current consumption: max. 40 mA
• Cold start in ca. 29 seconds
• Hot start in ca. 1 second
• Positioning accuracy:
2.5 m CEP (Circular Error Probable)
2.0 m CEP with SBAS (Circular Error Probable)
• Dimensions (LxWxH): ca. 65.5 x 23.0 x 11.0 mm
• Linux Kernel 2.6 or above
• Windows 10/10-64/11
• Laptop or tablet with a free USB Type-A port
Package content

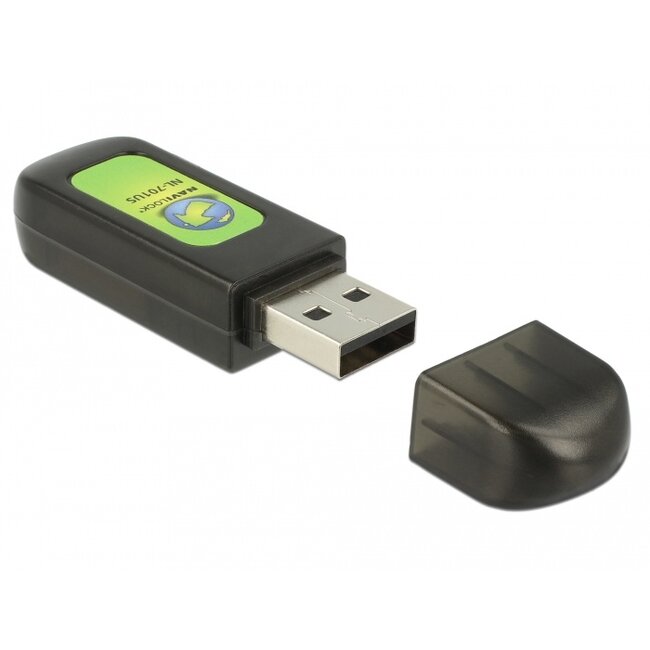

• USB 2.0 receiver

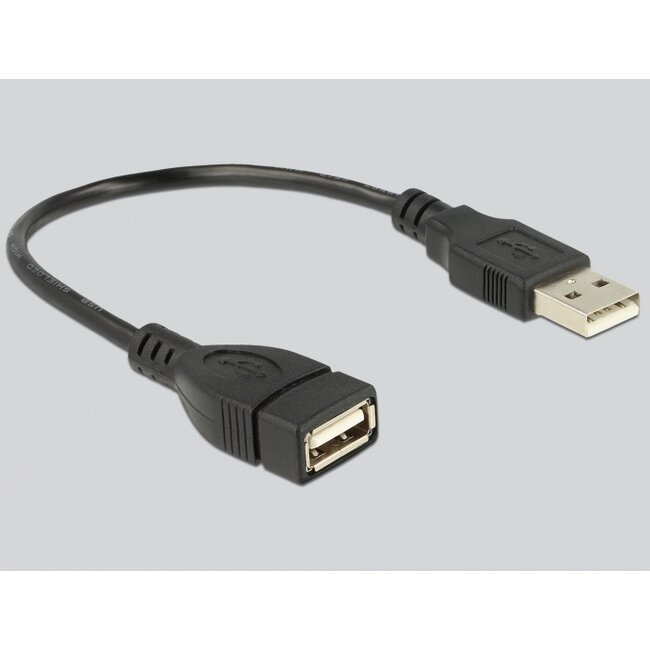

• USB extension cable
• Navilock support CD incl. driver and user manual
