This GNSS antenna from Navilock can be used on an existing GNSS receiver, car radio or vehicle multimedia receiver with FAKRA C connection. The antenna is waterproof and can therefore be used temporarily outside the vehicle.
Specification• Connector: 1 x FAKRA C Jack
• FAKRA C: RAL 5005 Signal blue
• Frequency range: 1575.42 MHz
• GALILEO: E1 1,5754200 GHz, GPS: L1, 1.5754200 GHz
• Band width: 2 MHz

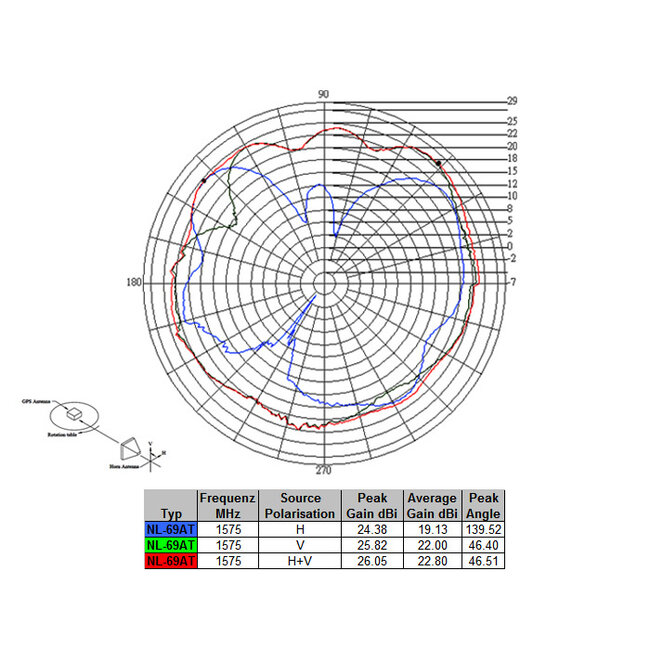

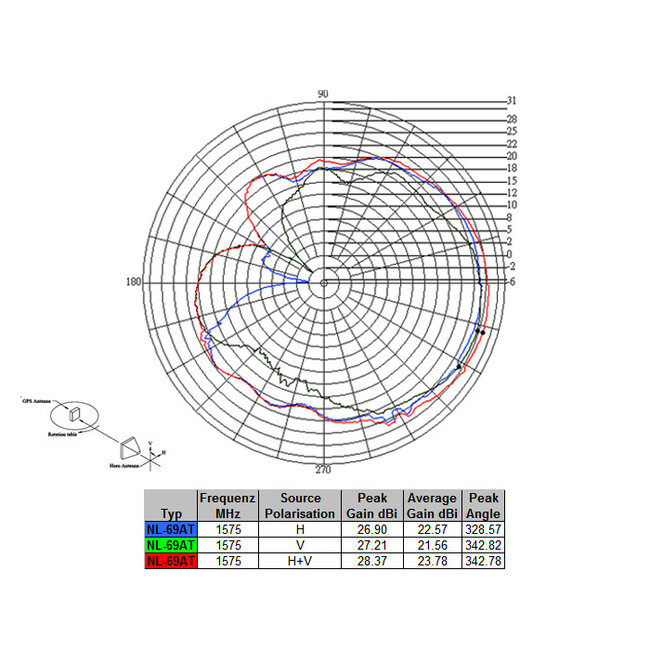

• Antenna gain: 27 dBi
• Impedance: 50 Ohm
• Mounting: Magnet base
• Housing material: ABS
• Colour: black
• Protection class: IP67
• Cable type: RG 174/U
• Cable colour: black
• Cable attenuation: 1.1 dB @ 1500 MHz per meter
• Cable length incl. connector: ca. 3 m
• Dimensions (LxWxH): 40.5 x 38.0 x 12.0 mm
• DC input: 3.0 - 5.5 V
• Power consumption:
11 mA @ 3.0 V typ.
15 mA @ 3.0 V max.
• Weight: 150 g
• Device with a free FAKRA C plug
Package content
• Antenna
