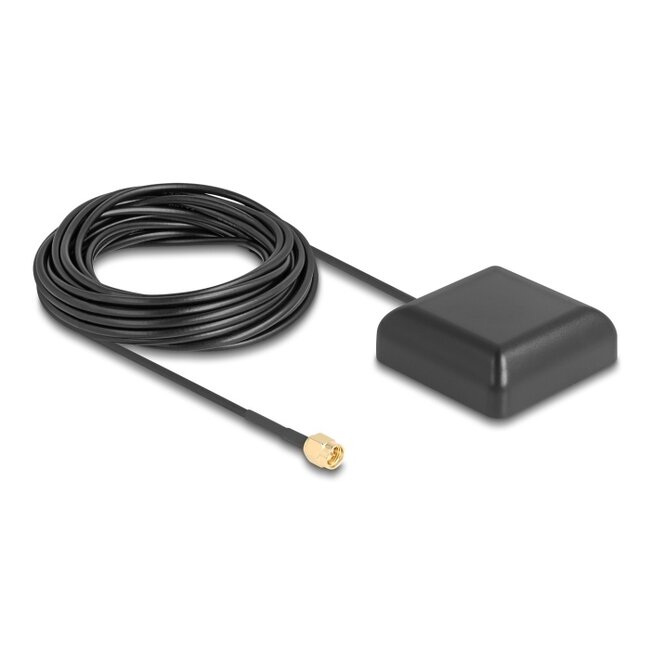

This GNSS antenna by Navilock can be used with an existing GNSS receiver with SMA connection. Improvement of reception will be provided by placing the antenna, e.g. on the hat rack or car roof, where it has a better or free view to the sky. The antenna is waterproof and can temporary also be used outside of the vehicle.
Specification• Connector: 1 x SMA plug
• Connector finishing: brass gold plated
• External active additional antenna for GNSS receiver
• Internal patch antenna:
Antenna gain: 5 dBic
Bandwidth: > 20 MHz
VSWR: 2.0
Polarisation: RHCP
Dimensions (LxWxH): ca. 25 x 25 x 4 mm
Dimension ground plate metal (LxW): ca. 40 x 40 mm (PCB)
• LNA GNSS:
Gain: 30 dB
VSWR: 1.5
Input voltage: 3.0 - 5.0 V
noise figure: 1.5 @ 25 °C +/- 10 °C
• Frequency range: 1575.42 MHz +/- 1.02 MHz
• Impedance: 50 Ohm
• Operating temperature: -40 °C ~ 80 °C
• Protection class: IPX6
• Magnetic bottom
• Current consumption: ca. 10 mA @ 5.0 V
• Cable type: RG-174
• Cable attenuation: 5.70 dB
• Cable length: ca. 5 m
• Dimensions (LxWxH): ca. 50.6 x 50.6 x 15.1 mm
• Device with a free SMA jack
Package content
• GNSS antenna
