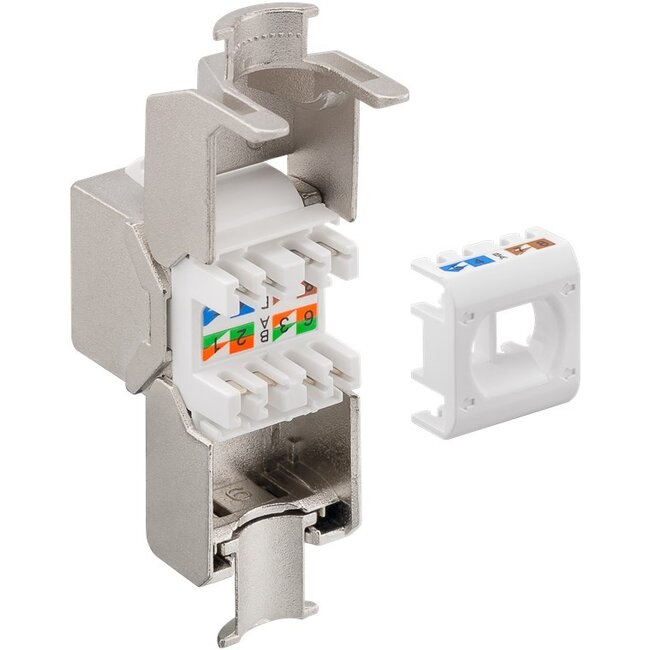

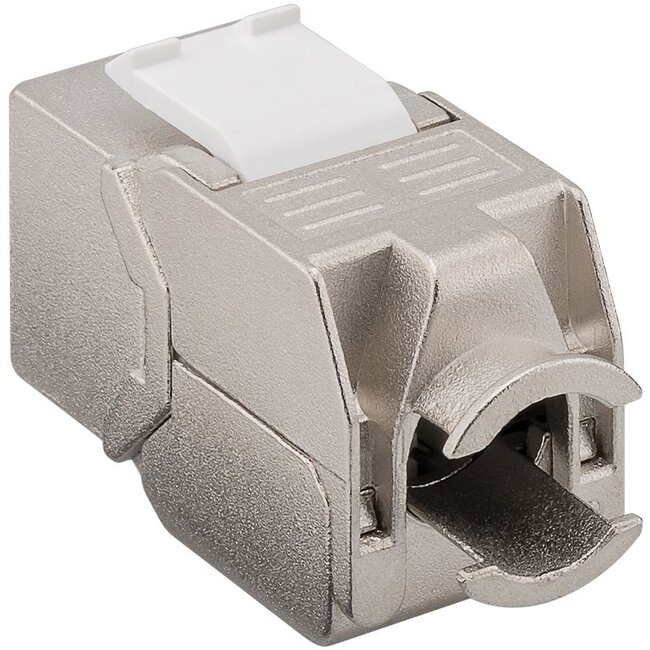

Description Reliable performance of the Keystone module in CAT 8.1 channels is best ensured when combined with the GHMT-certified components listed below.Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09): 2 Connector Channel Copper, Class I up to 2 GHzGHMT Type Approval Balanced cord: Wentronic GmbH CAT 8 patch cordPart no.: CAT 8.1 - m S/FTP PiMF Certified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117Certified installation cables: 61126, 61127, 61128Certified Keystone coupler: 61146
Features - Ideally suited as a connector for setting up a CAT 8.1 channel
- GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)
- For round cables with 5.0-8.5 mm diameter and a solid conductor (AWG 22/1 - 26/1) or stranded conductor (AWG 22/7 - 26/7)
- For quick, tool-free mounting in patch panels, network sockets or housings
- The RJ45 coupler is suitable for Power over Ethernet (PoE++, 4PPoE, Ultra PoE) according to IEEE802.3bt and supports 25GBase-T and 40GBase-T (downward compatible).
- For quick, tool-free mounting in patch panels, network sockets or housings
- The 3 μin gold-plated contacts and STP screen of the zinc die-cast housing ensure durability and perfect signal transmission.
