Description The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

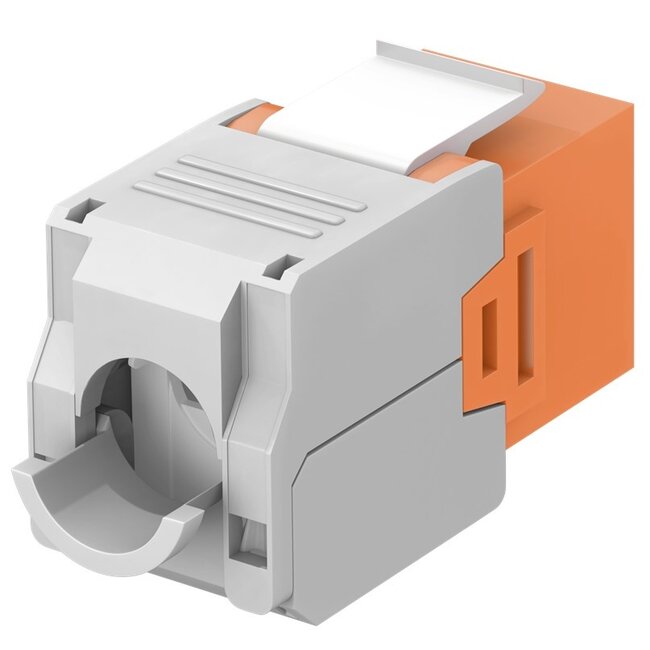

Features - RJ45 jack socket with robust plastic housing for a perfect transmission of electrical or optical signals
- CAT 6A jack socket for Ethernet cables with an outer diameter of 5.0 - 9.0 mm
- Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
- RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
- Commonly used in laboratories, workshops, home entertainment and network installations
- RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings

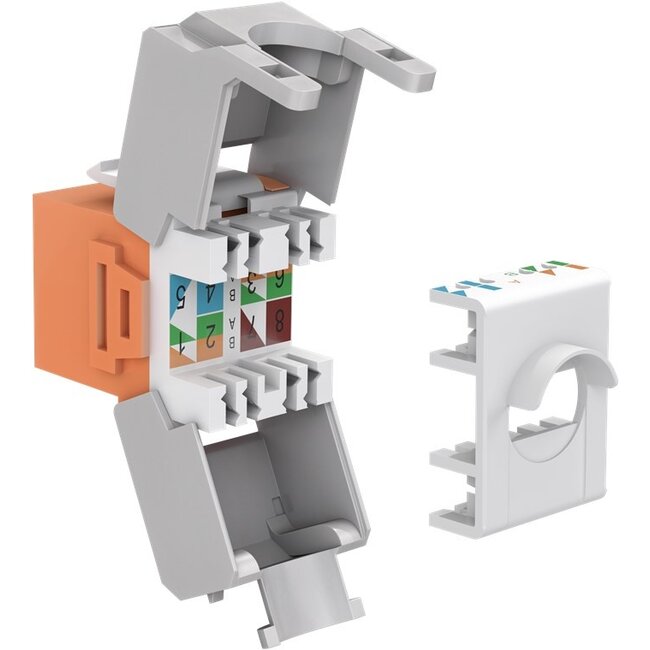

- RJ45 connections are TIA 568A/B colour-coded
