Description The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

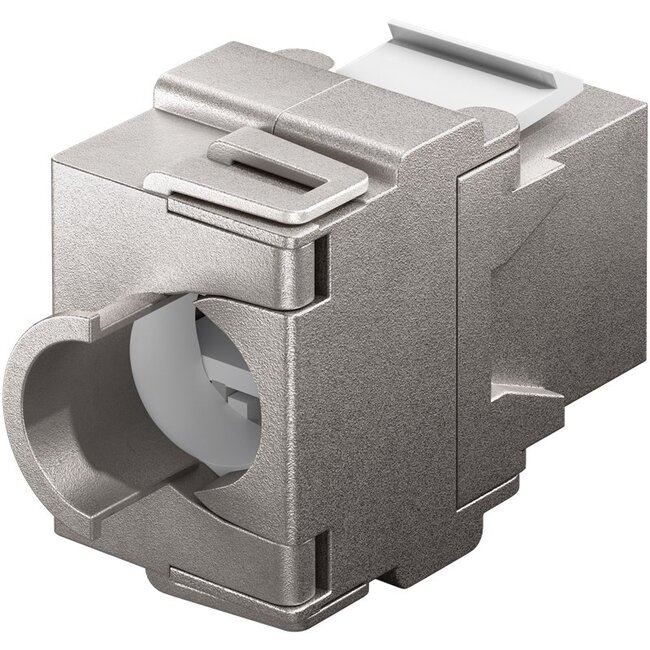

Features - RJ45 female connector with robust zinc-alloy housing for a perfect transmission of electrical signals
- Suitable for 10 Gigabit Ethernet applications and Power over Ethernet (PoE+) according to IEEE 802.3at
- RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings. Not suitable for Keystone empty cases 79355, 79366, 79376, 79379 and 79426.

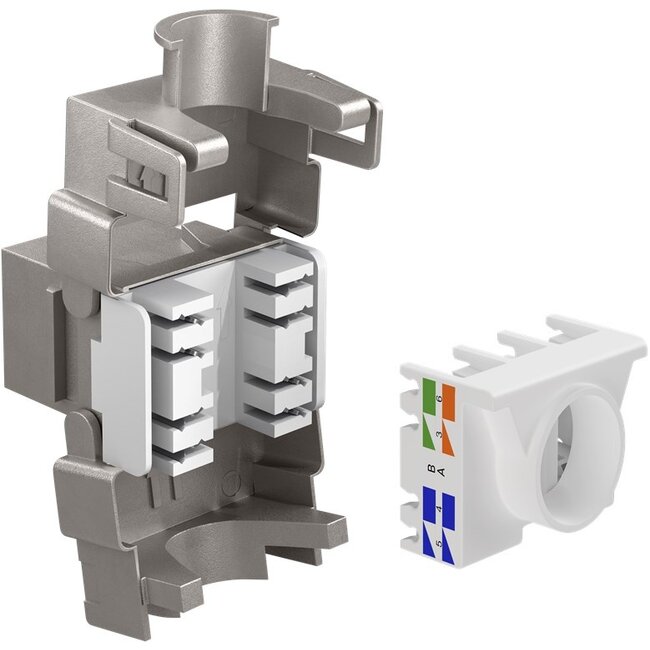

- RJ45 socket for termination with CAT 6A cables
- Commonly used in network installations and for the assembly of permanently installed network cables
- RJ45 socket for termination with CAT 6A cables
- RJ45 connections are TIA 568A/B colour-coded
