Description The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

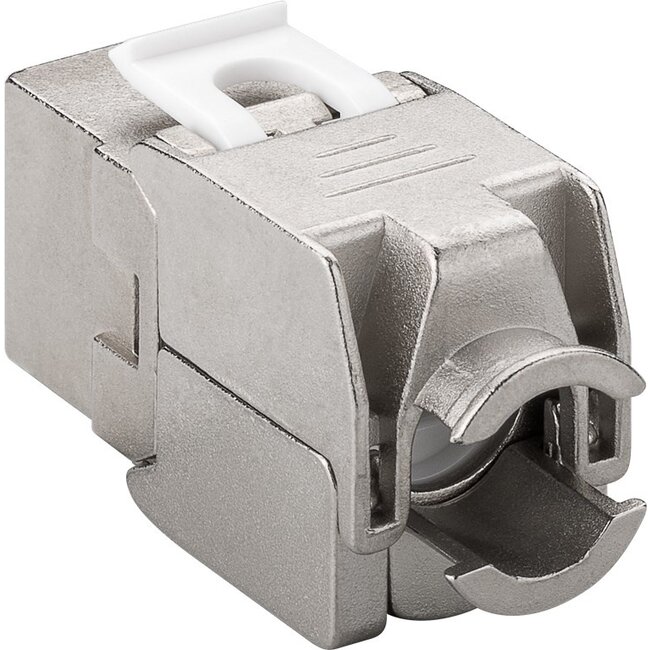

Features - RJ45 jack socket with robust zinc-alloy housing for a perfect transmission of electrical signals
- Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at, supports 10 Gigabit Ethernet applications

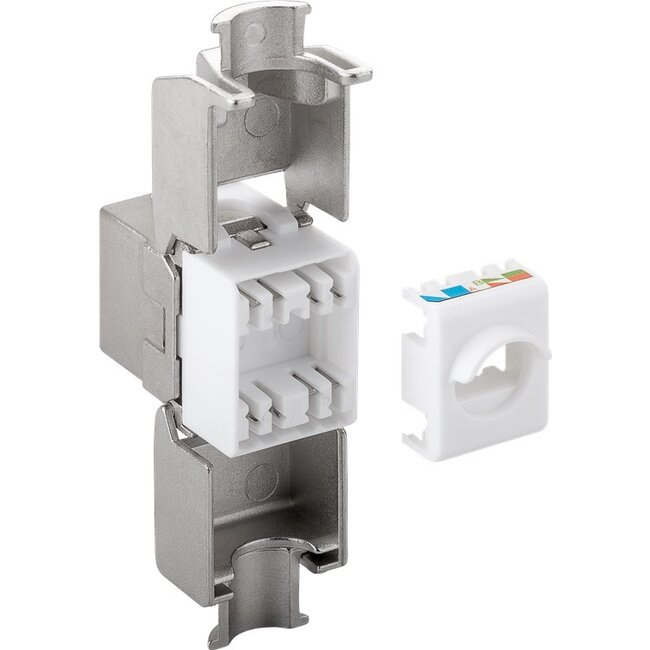

- RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
- Commonly used in network installations and for the assembly of permanently installed network cables
- The Ethernet connector is only suitable for solid wire with a diameter of 0.45 - 0.65 mm. Not suitable for stranded wire.
- Commonly used in network installations and for the assembly of permanently installed network cables
- RJ45 connections are TIA 568A/B colour-coded
