The LED 12 V power supply unit is suitable as a doorbell transformer, for operating surveillance and access systems, door openers, door intercoms, bell systems, etc.

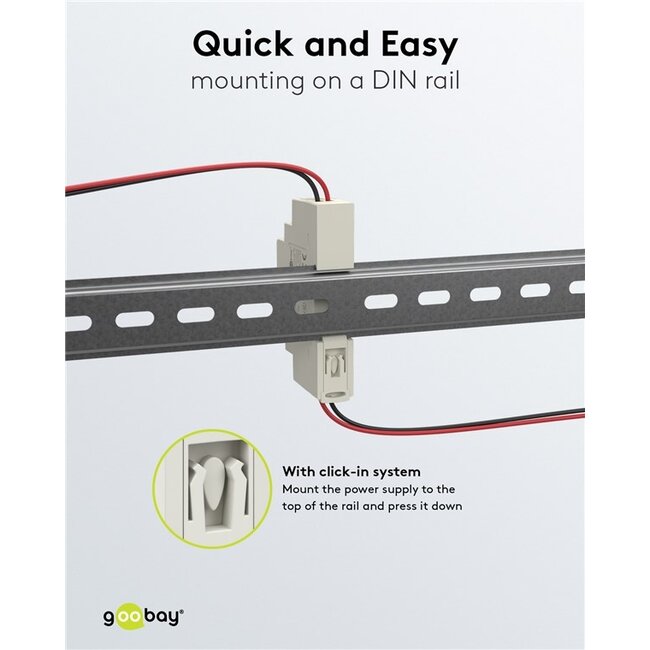

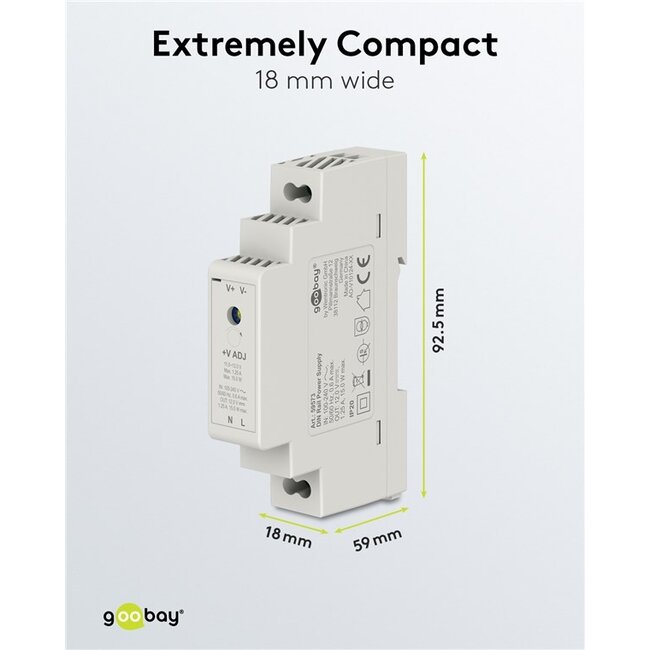

With a width of 18 mm, the LED driver is particularly compact and is quickly and easily mounted on a DIN rail with top-hat profile by means of a click system.

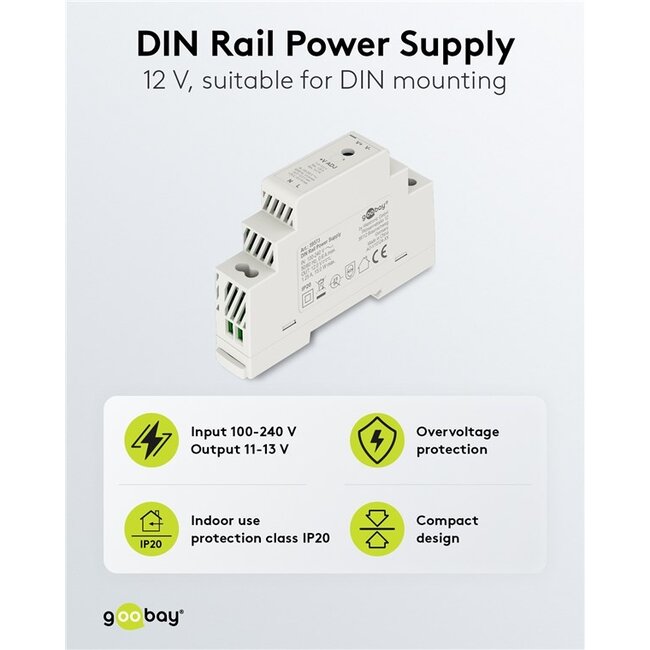

Highly reliable and stable LED transformer 12 V with an input voltage range of 100-240 V (AC) at 50/60 Hz
The highly efficient rectifier has a variable DC output voltage of 11-13 V and low no-load power.
Particularly safe thanks to overvoltage, overload and short-circuit protection, protection class IP20 and safe electronic isolation according to appliance class II
The highly efficient rectifier has a variable DC output voltage of 11-13 V and low no-load power.

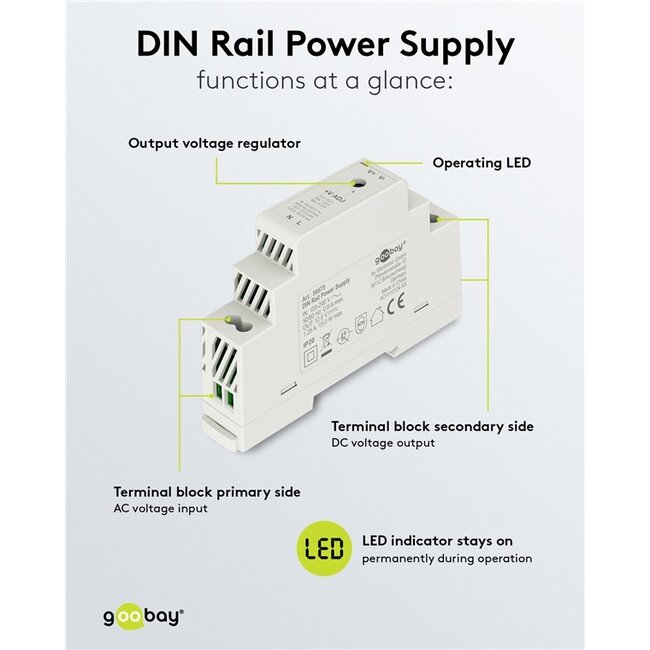

The LED indicator on the DIN rail transformer (DR-15-12) permanently stays on during operation.
Specificaties
SKU
UC-W-59573
