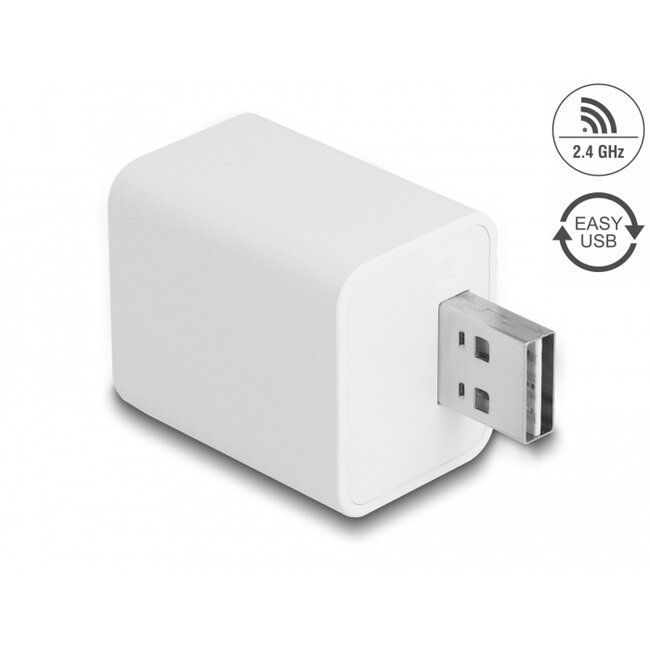

This USB switch by Delock can be controlled via button or WLAN. With the installed Tasmota firmware, the switch can be easily integrated into existing systems for home automation, IoT or M2M. With the help of the web interface, the USB plug can be controlled without having to rely on the cloud or an app.

Multifunctional application

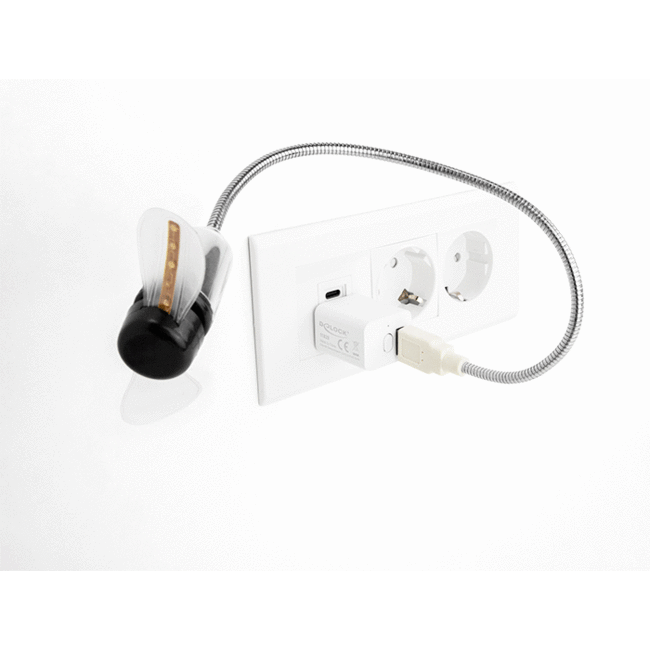

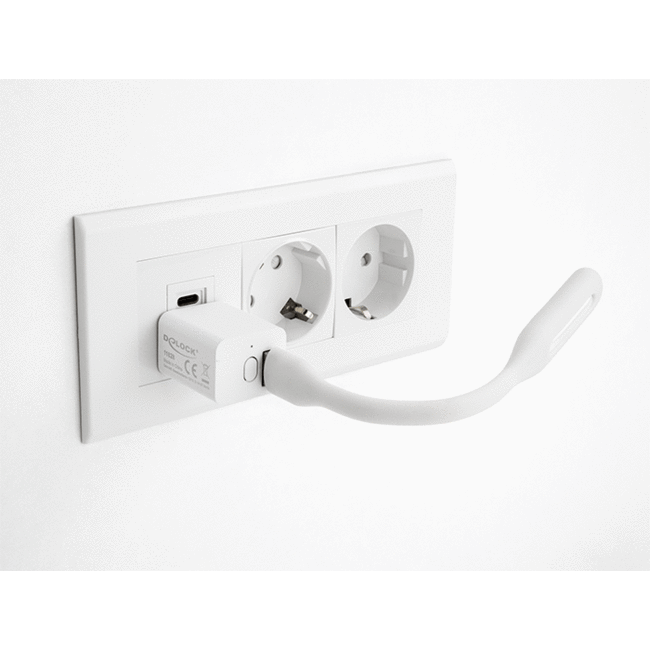

The USB switch can be used to control all common USB loads, such as USB LED light strips or fans. The data lines are connected, so USB devices such as webcams can also be switched; in addition, operation with power supply units or power banks with fast charging function is possible. For example, the charging of mobile phones can be controlled in a targeted manner.

• Connectors:
1 x USB 2.0 Type-A reversible male
1 x USB 2.0 Type-A female
• USB-A male port usable in both directions
• USB 2.0 up to 480 Mbps
• Switch button with 2-colour LED indicator
• Web interface
• Programmable timer control
• Supports MQ Telemetry Transport (MQTT)
• Supports Alexa
• Chipset: ESP8285
• Compatible with IEEE 802.11b/g/n
• Frequency range: 2.4 GHz
• Transmission power (EIRP): 100 mW
• Suitable for indoor use
• Power consumption: max. 1.0 W
• Voltage: max. 12.0 V
• Current: max. 2.0 A
• Output power: max. 18.0 W total
• Dimensions without plug (LxWxH): ca. 34.5 x 29.2 x 23.4 mm

• WLAN Gateway

Package content

• WLAN EASY-USB Smart Switch
• User manual
