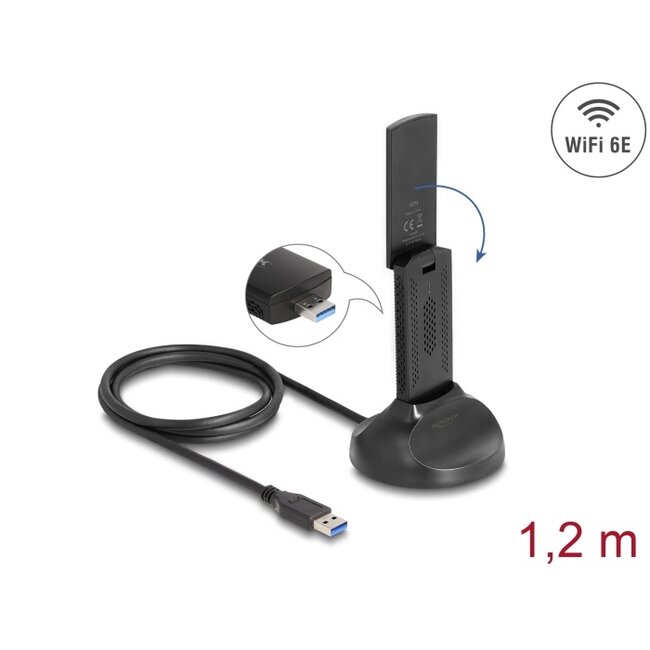

Wi-Fi 6E adapter with foldable antenna and magnetic base

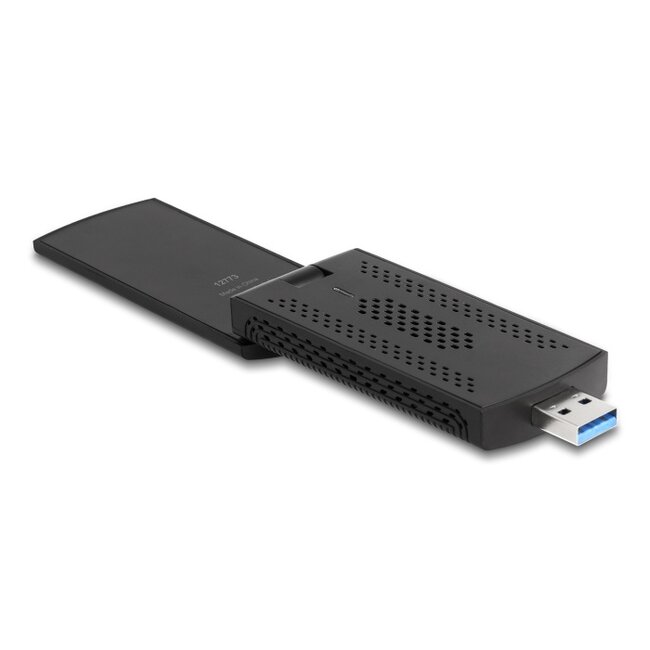

This Wireless LAN USB stick by Delock can be connected to a computer for the connection to a WLAN network. The WLAN stick can be used with an access point or WLAN router in the 2.4 GHz, 5 GHz and 6 GHz band.

Wi-Fi 6E
The 802.11ax technology enables higher data rates, especially in environments with many devices.
The additional Wi-Fi frequencies in the 6 GHz band enable higher throughput and more stable connections for high-bit-rate applications such as video telephony, gaming or streaming.


With the help of the variable inclination of the antenna tilt and the magnetic base, the antenna can be positioned individually.

Note
To use the 6 GHz band, Windows 11 is required.

• Connector:
1 x USB 5 Gbps Type-A male
• Chipset: Mediatek MTK7921AU
• 2x2 (Tx/Rx) mode with 1201 Mbps @ 6 GHz, 5 GHz and 574 Mbps @ 2.4 GHz
• Frequency range 2,4 GHz: 2.400 - 2.4835 GHz
• Transmission power (EIRP) 2.4 GHz: max. 100 mW
• Frequency range 5 GHz: 5.150 - 5.350 GHz, 5.470 - 5.725 GHz
• Transmission power (EIRP) 5 GHz: max. 200 mW
• Frequency range 6 GHz: 5.945 - 6.425 GHz
• Transmission power (EIRP) 6 GHz: max. 200 mW
• Supports MU-MIMO, OFDMA, 1024QAM
• Compatible with IEEE 802.11ax/ac/a/n/b/g
• Encryption WEP, WPA, WPA2, WPA3
• Antenna gain: 2 dBi
• Supports DFS (Dynamic Frequency Selection)
• 1 x LED for activity
• Colour: black
• Dimensions incl. connector (LxWxH): ca. 94 x 37 x 16 mm

• Linux Kernel 5.19 or above
• Windows 10/10-64/11
• PC or laptop with a free USB Type-A port

Package content

• WLAN USB stick
• Magnetic base, cable length ca. 1.2 m
• User manual
