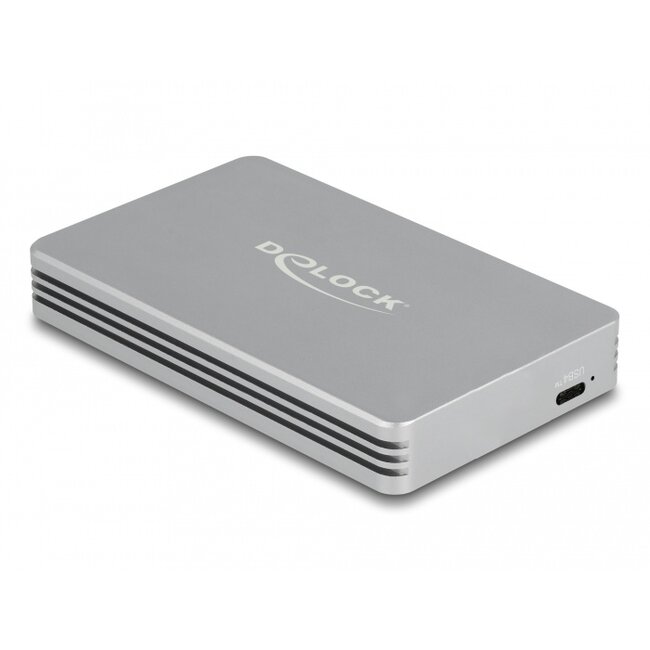

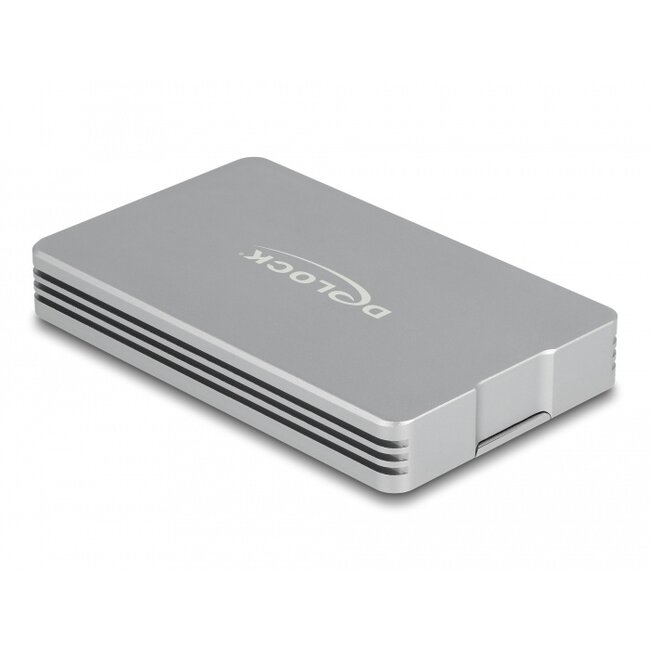

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280 format, it can be connected via Thunderbolt™ 3, Thunderbolt™ 4 or USB-C™ to the PC or laptop. The robust metal housing with cooling fins ensures an optimum temperature of the memory.

USB4™ 40 Gbps
Due to USB4™ compatibility, the Delock enclosure can be connected to Thunderbolt™ 3 and 4 ports, as well as to all USB Type-C™ ports. The maximum data transfer rate depends on the host device.

SSD installation without tools
The special feature of this enclosure is that no tools are required to install the M.2 SSD.

Note
Due to the USB to NVMe controller, the data transfer rate on a USB Gen 2x2 port is only 10 Gbps.

There is no support for SATA M.2 SSD.

• Connectors:
external: 1 x USB4™ 40 Gbps (Gen 3x2) USB Type-C™ female
internal: 1 x 67 pin M.2 key M slot
• Chipset: Intel JHL7440, Realtek RTL9210B
• Supports M.2 modules in format 2280 with key M or key B+M based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Supports NVM Express (NVMe)
• Data transfer rate up to 40 Gbps
• LED indicator for power and access
• Metal housing
• Hot Plug, Plug & Play
• Dimensions (LxWxH): ca. 100 x 60 x 14 mm

• Android 10.0 or above
• Chrome OS 90.0 or above
• iPad Air (4th Generation) or above
• Linux Kernel 5.13 or above
• Mac OS 12.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port or
• Device with a free Thunderbolt™ 4 port

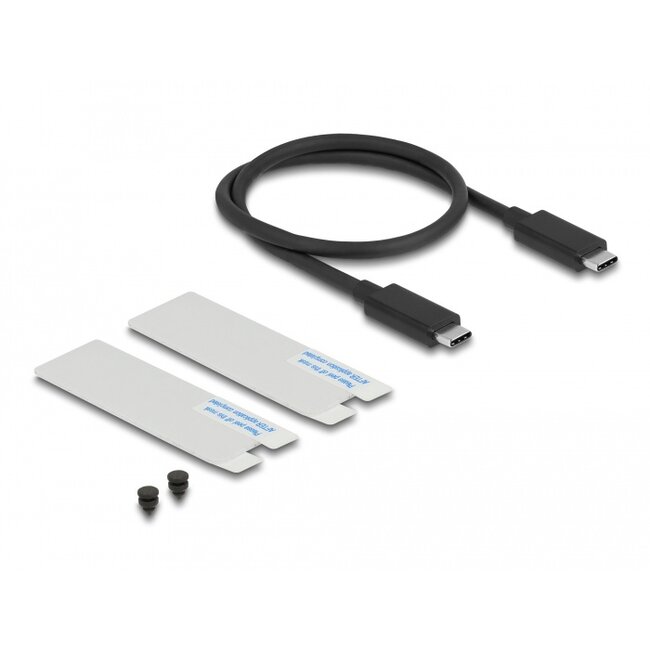

Package content

• External enclosure M.2
• Thunderbolt™ 3 cable, length ca. 50 cm
• 2 x thermal conductive pad
• 2 x rubber nipple
• User manual
