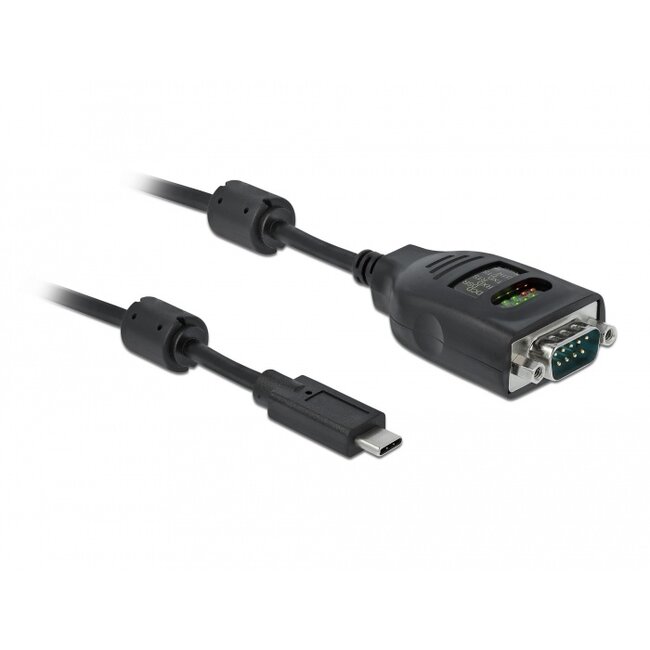

This USB Type-C™ to serial DB9 adapter with RS-232 tester by Delock combines two functions in one device. The RS-232 interface provides a connection for serial printers, measuring devices, machines etc. In addition, the nine LEDs in the connector provide simultaneous information on the status of the RS-232 data and the USB voltage supply. The RS-232 tester can be used for troubleshooting and helps to analyze the serial control and data lines.
Specification• Connectors:
1 x USB Type-C™ male
1 x serial RS-232 DB9 male
• Serial connector with nuts
• Chipset: FTDI FT231XS
• Data transfer rate up to 460.8 Kbps
• FIFO: 512 Byte - RX
• FIFO: 512 Byte - TX
• Databits: 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• ±15 kV ESD protection for all serial signals

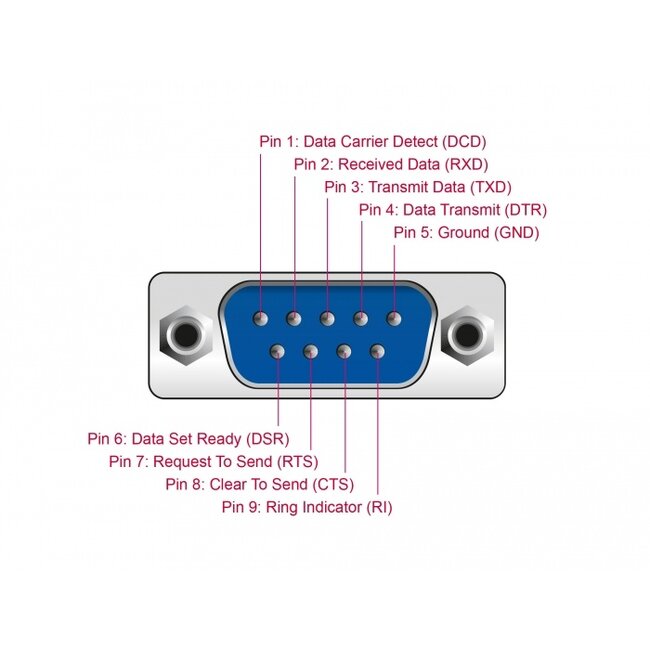

• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND

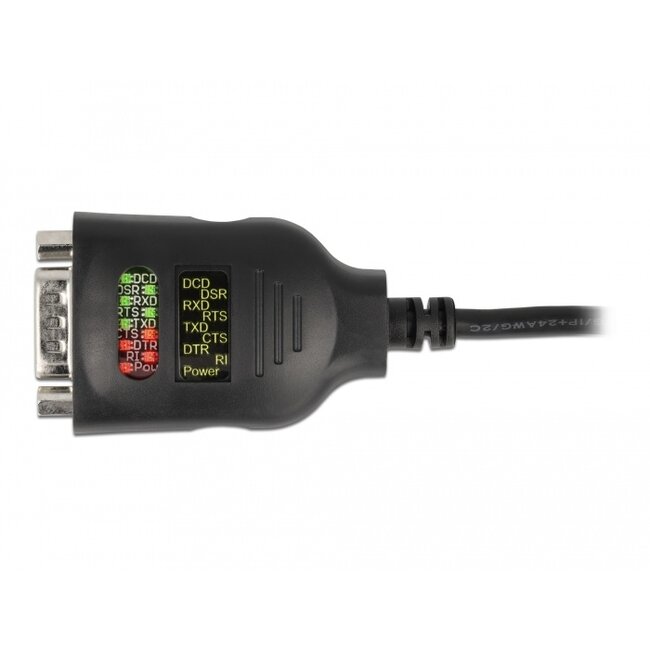

• LED indicator: 9 x bicolour, red (V+), green (V-)
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, USB-PWR
• Operating temperature: -40 °C ~ 85 °C
• Cable length incl. connectors: ca. 2 m
• Linux Kernel 4.9 or above
• Mac OS 10.15 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Package content
• USB Type-C™ to 1 x serial adapter
• Driver CD
• User manual
