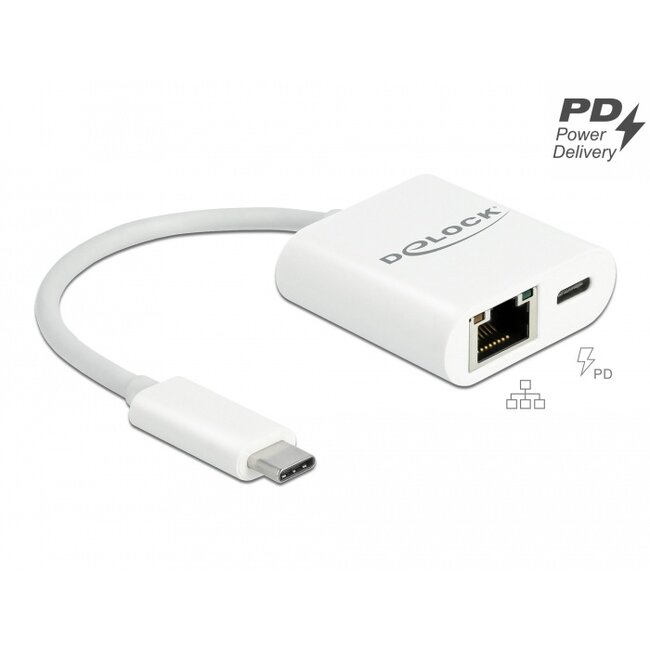

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C™ interface. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.
USB Power Delivery (USB PD 2.0) support up to 60 watt
This adapter has a USB Type-C™ Power Delivery port. If this port is connected to the host device, such as the MacBook, it will charge up to 60 watts during operation.
• Connectors:
1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ male >
1 x Gigabit LAN RJ45 jack
1 x USB Type-C™ PD female (power supply)
• Chipset: Realtek RTL8153, VIA VL100
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
• Compatible with:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3ab: 1000BASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports Wake On LAN (WOL)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation
with back-pressure flow control
• Supports 9k Jumbo Frames
• Output power for host: max. 60 W
• LED indicator for power and activity
• USB bus powered
• Colour: white
• Cable length incl. connectors: ca. 11.5 cm
• Android 9.0 or above
• Chrome OS 78.0 or above
• iPad Pro (2018)
• Linux Kernel 3.18 or above
• Mac OS 10.15.3 or above
• Windows 8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
Package content
• USB Type-C™ Gigabit LAN adapter
• User manual
