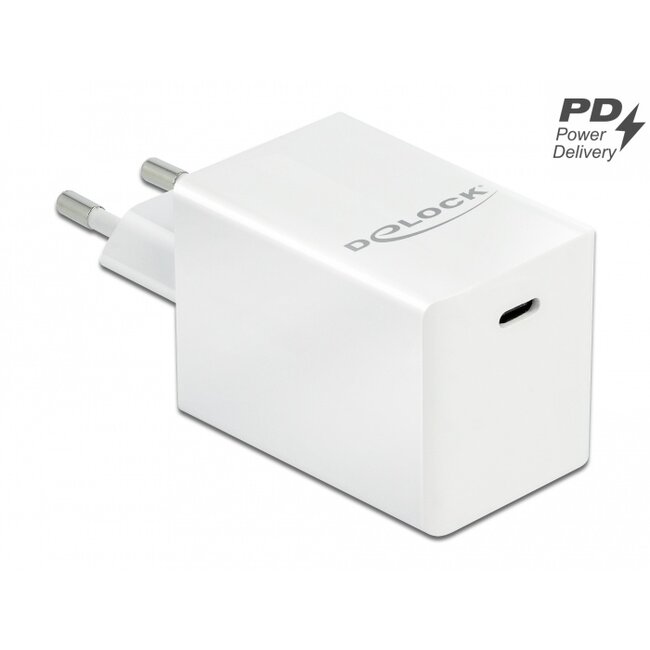

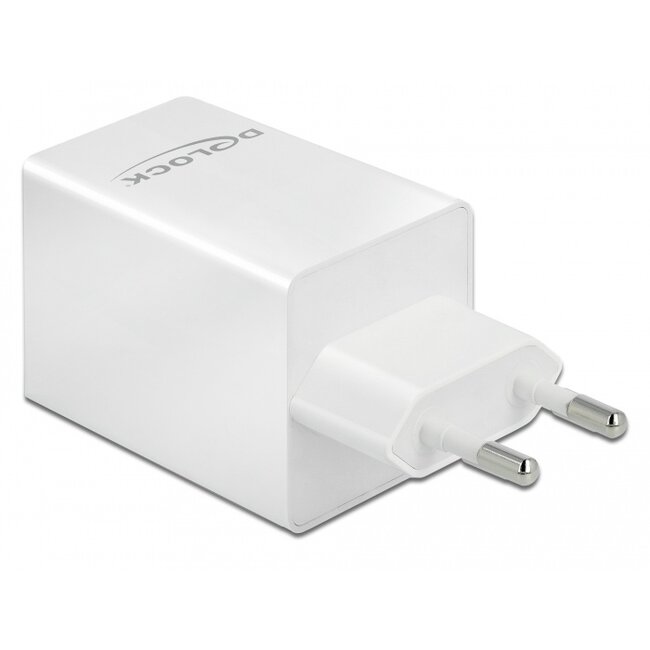

This USB Power Delivery (PD) charger by Delock can be used to charge mobile devices with USB Type-C™ connector. It provides various voltages from 5 V to 20 V and power up to 60 Watt.
GaN technology
The use of novel GaN (gallium nitride) transistors increases efficiency compared to conventional silicon technology. Even with very compact dimensions a high output power can be achieved.
• Connectors:
1 x USB Type-C™ female
1 x plug CEE 7/16
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: PD 3.0: 5.0 V, 9.0 V, 15.0 V, 20.0 V / 3.0 A
• Output power: max. 60.0 W total
• Average active efficiency 82.95 % (5.0 V / 3.0 A)
• Average active efficiency 89.42 % (20.0 V / 3.0 A)
• Efficiency at low load (10 %) 74.63 % (5.0 V / 3.0 A)
• Efficiency at low load (10 %) 78.79 % (20.0 V / 3.0 A)
• No-load power consumption 0.096 W
• USB Power Delivery (PD) 3.0
• Overload protection
• Over current protection
• Overheating protection
• Short circuit protection
• Colour: white
• Dimensions without plug (LxWxH): ca. 53 x 40 x 36 mm
• USB Charger
• User manual
