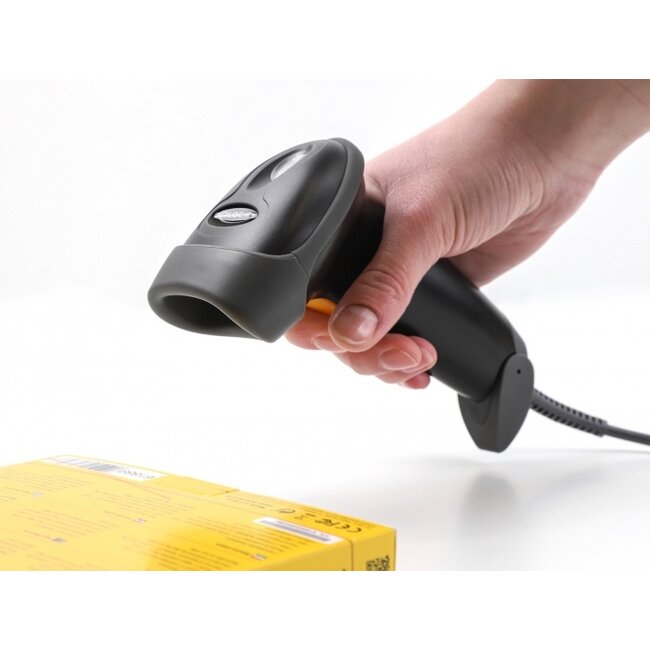

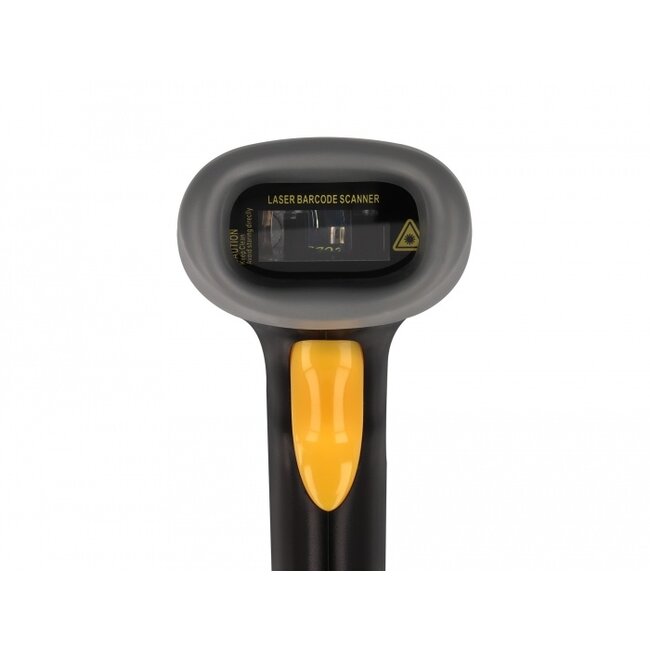

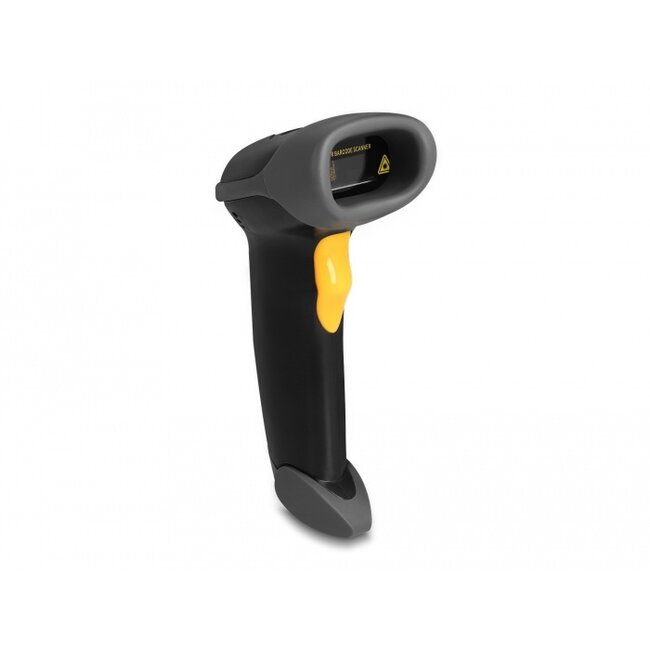

This barcode laser scanner by Delock can be connected directly to a PC or laptop. Alternatively, an adapter can be used to connect the scanner to a mobile phone or tablet. Up to 200 scans per second of all common 1D barcode types can be precisely captured, even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.
Transmission via USB
The data transfer of the scanned barcodes is done via the included USB cable.
Fixed connection

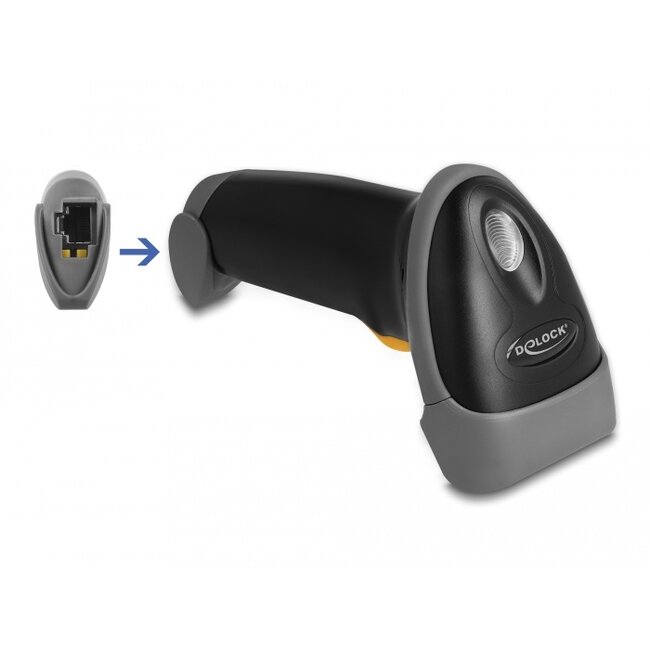

The USB cable will be connected to the scanner via RJ50 plug. The connection is flush, so that the cable can only be removed using with the included ejection tool. Thus there is always a firm connection between the scanner and the system.
Secure hold

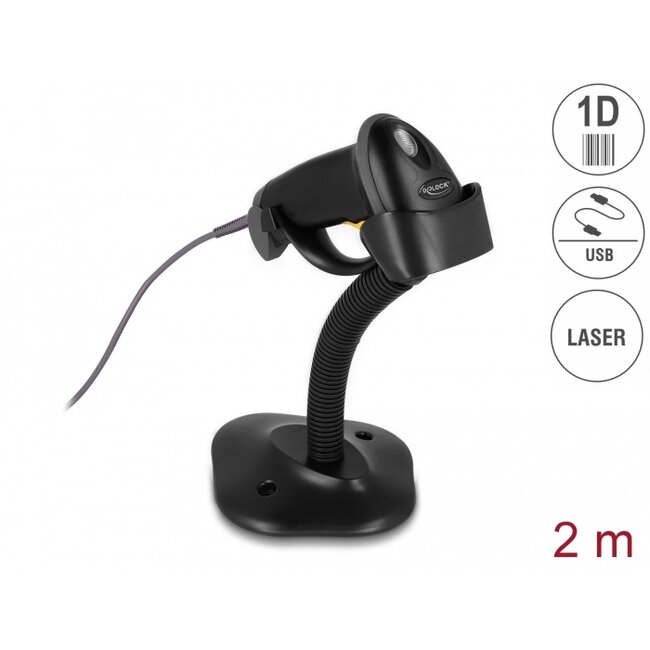

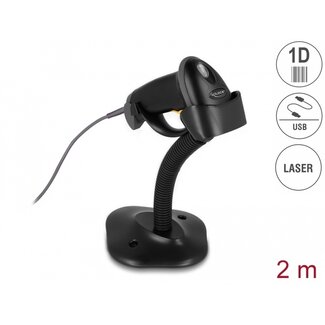

The scanner is supplied with a matching holder that can be individually adjusted thanks to the flexible gooseneck. With the help of the two holes in the base, the stand can be attached to the desk and provides a secure hold while placing it down.
• Connector: 1 x RJ50 jack
• Decoding chip: ARM Cortex 32 Bit
• Resolution: max. 640 x 480
• Trigger: scan button
• Reading distance: ca. 185 mm to 300 mm
• Reading accuracy: 3 mil
• Scan type: laser class 1, 655 nm, <0,5 mW
• Scan rate: up to 200 scans per second
• Scan angle: 44°
• Input voltage: 5 V
• Current consumption:
operation: max. 100 mA
standby: max. 10 mA
• Operating temperature: -20 °C ~ 60 °C
• Storage temperature: -40 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non condensing)
• Colour: black
• Weight: ca. 120 g
• Dimensions (LxWxH): ca. 16.5 x 8.2 x 6.5 cm
• Cable length incl. connector: ca. 2 m
• Scancodes:
Code 128
Interleaved 2 of 5
EAN-8 / EAN-13
ISBN - 13

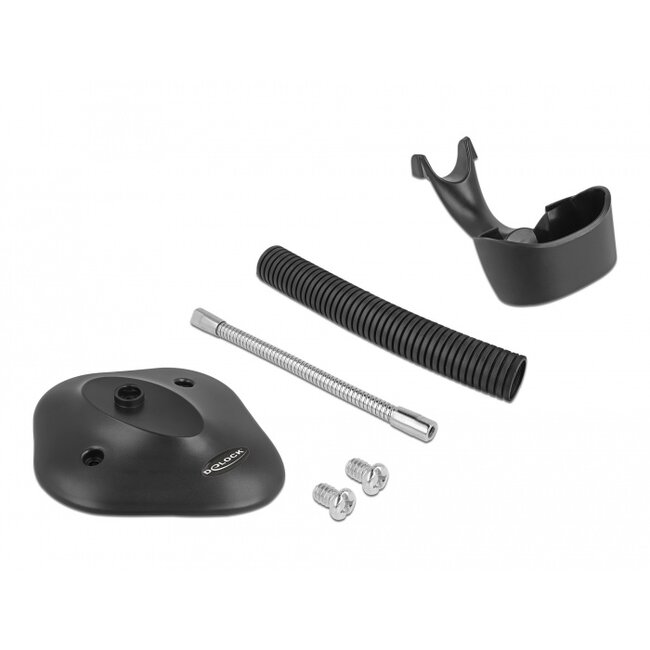

• Dimensions stand (LxWxH):
stand: ca. 172 x 153 x 23 mm
gooseneck: ca. 165 x 23 x 23 mm
holder: ca. 145 x 71 x 37 mm
• Android 11.0 or above
• iPad Air (2020)
• Linux Kernel 5.4 or above
• Mac OS 11.6 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• Barcode scanner
• 1 x stand
• 1 x flexible metal rod
• 1 x plastic cladding
• 1 x bracket

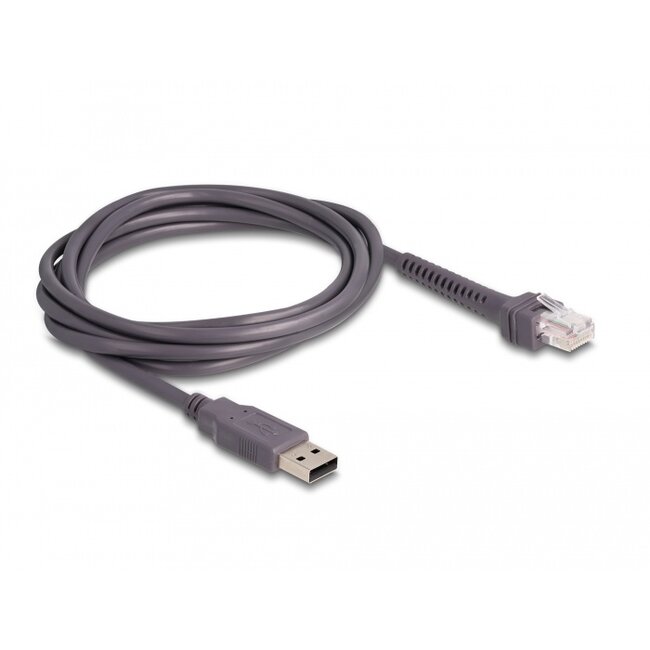

• USB Type-A to RJ50 cable, length ca. 2 m
• Ejection tool
• User manual
