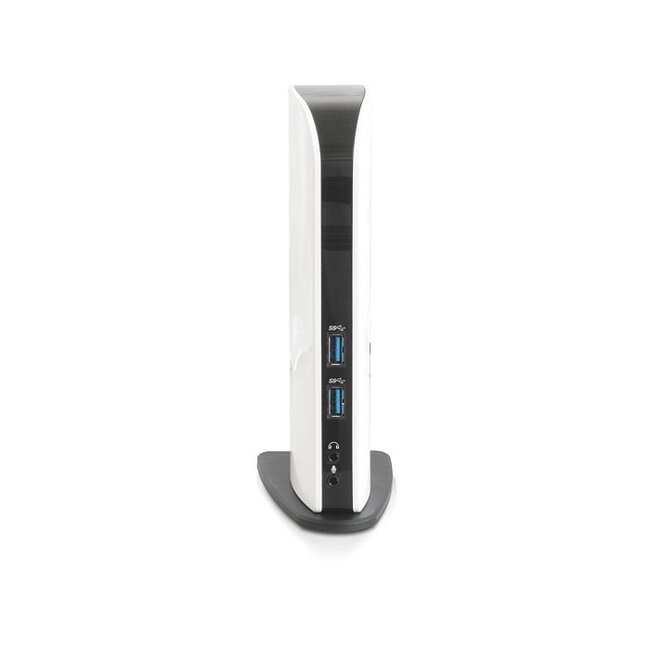

This Delock port replicator can be connected to a single USB port of your computer and expands your system by several interfaces, like USB, audio, Gigabit Ethernet, DVI and HDMI. The DVI and HDMI ports enable the connection of two additional monitors. The port replicator supports a HD resolution of up to 2048 x 1152.
Extended screen by Displaylink
Due to the Displaylink graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.
• Connectors:
front side:
2 x USB 3.0 Type-A female
1 x microphone 3.5 mm stereo jack
1 x speaker 3.5 mm stereo jack

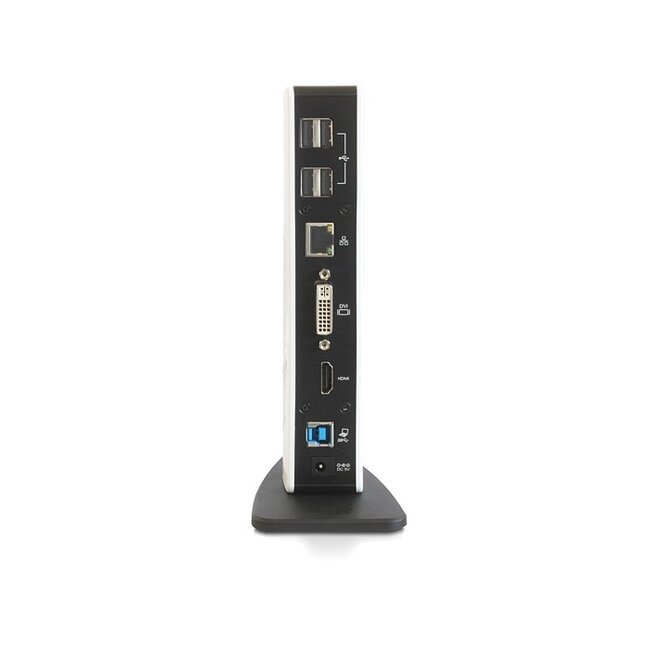

back side:
1 x USB 3.0 Type-B downstream port
1 x DC 5 V power connector
1 x HDMI-A 19 pin female
1 x DVI-I (Dual Link) 24+5 female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
4 x USB 2.0 Type-A female
• HDMI und DVI Ports unterstützen: Erweitern und Spiegeln, mit einer Auflösung von bis
zu 2048 x 1152 (abhängig vom Monitor und der vorhandenen Grafikkarte)
• Hot Plug

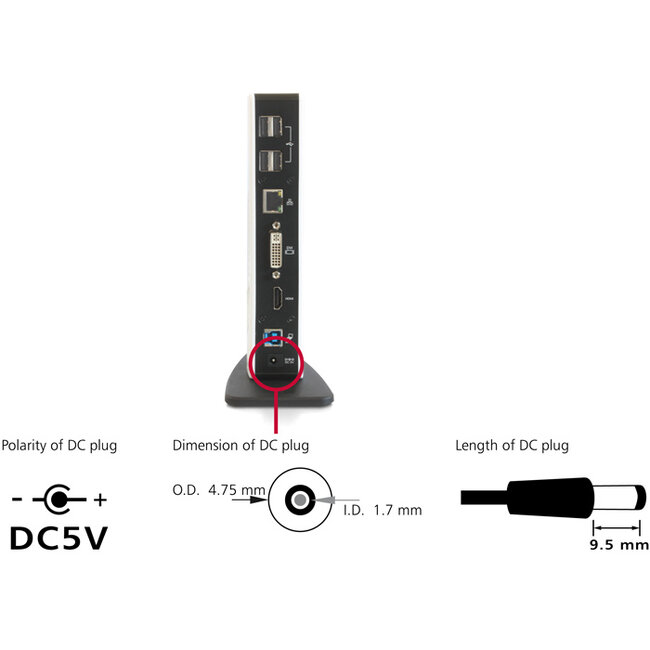

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 5 V / 4 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.7 mm
outside: ø ca. 4.75 mm
length: ca. 9.5 mm
• Windows 7/7-64/8.1/8.1-64/10/10-64, Mac Lion 10.7.4
• PC or laptop with a free USB Type-A port
• 1.6 GHz CPU or above
• Minimum 30 MB free HDD space

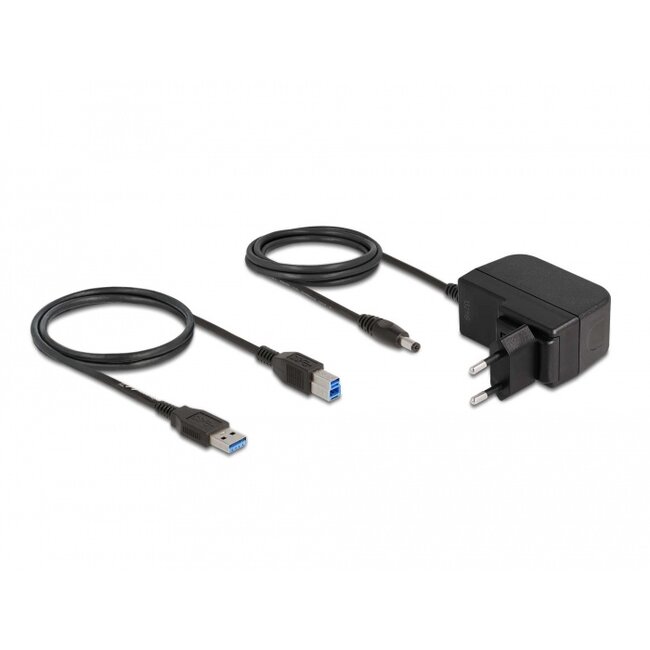

Package content
• USB 3.0 Port Replicator
• USB 3.0 cable
• External power supply
• Driver CD
• User manual
