This USB Matrix switch by Delock can be used with two computers to access two USB devices in any combination. For example, if a printer is connected, the button on the switch can be used to select which computer is connected to the printer. This connection can be switched at any time.
Specification• Connectors:
Input:
2 x USB 3.0 Type-B female
1 x 5 V DC jack 5.5 x 2.1 mm
Output:
2 x USB 3.0 Type-A female
• Switching via button or hotkey
• 2 x button with LED indicator for USB 1 or USB 2
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Downwards compatible to USB 2.0 and USB 1.1
• Plug & Play
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 130 x 74 x 30 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
• Mac OS 10.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port

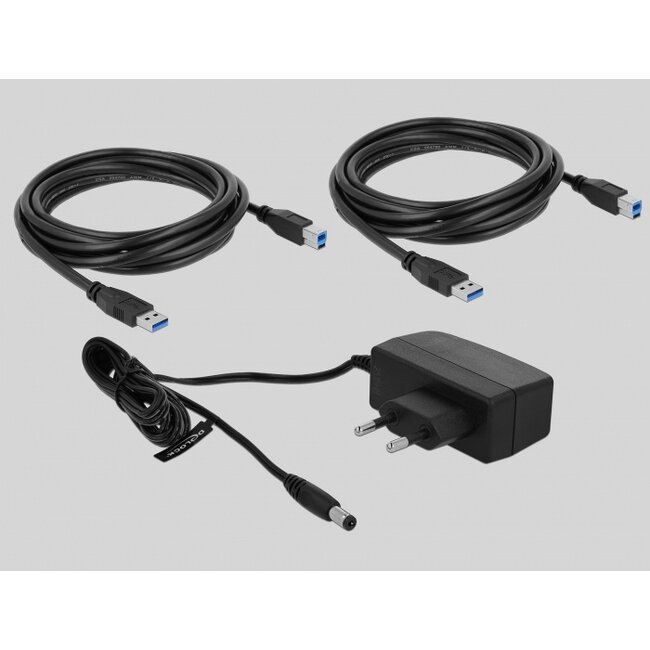

Package content
• USB 3.0 Matrix Switch
• 2 x cable USB 3.0 A male to USB 3.0 B male, length ca. 2 m
• Power supply
• User manual
