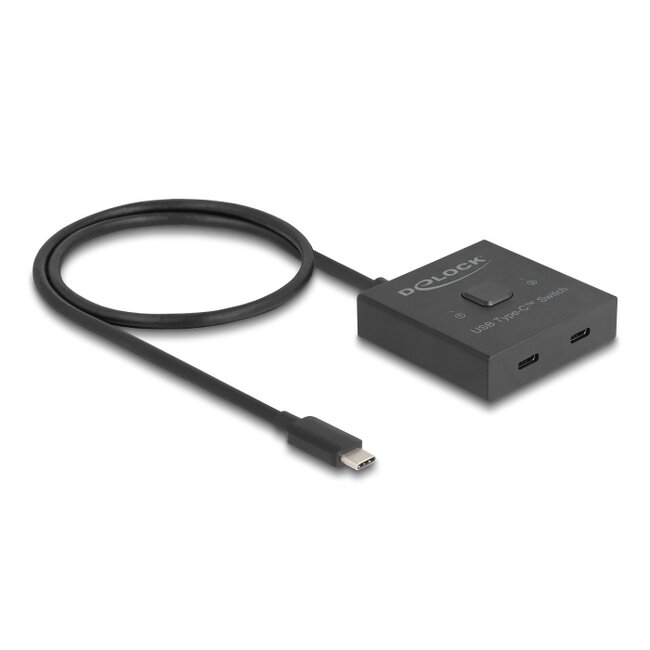

This USB Type-C™ switch by Delock is a manual bidirectional switch for connecting different devices with USB Type-C™ port. This switch offers two different applications.

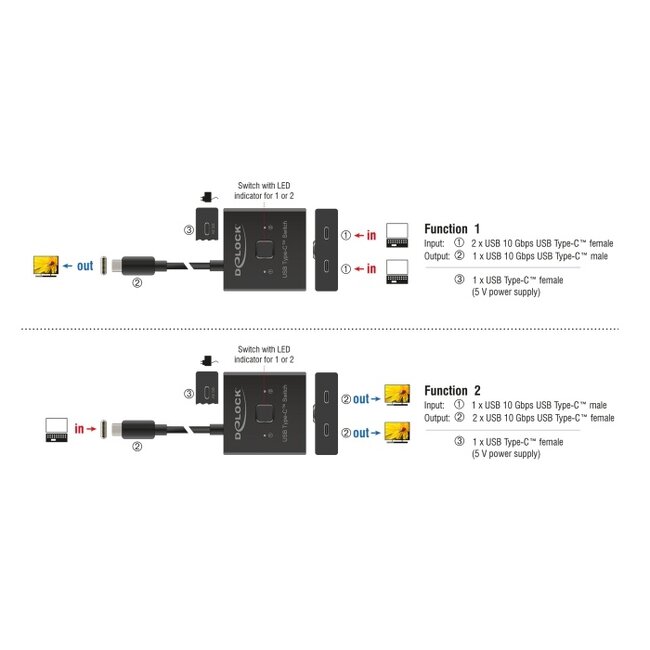

Function 1
One USB Type-C™ device like a monitor or external storage can be connected to two computers. With the push of a button, you can select the computer that will be connected to the device.

Function 2
Two USB Type-C™ devices like a monitor or USB-PD charger can be connected to one computer. At the push of a button, the device that is connected to the computer can be selected.

Flexible use
The switch supports graphics signals with up to 8K resolution, USB-C™ with up to USB 10 Gbps data rate and Power Delivery with up to 100 W. This makes it flexible to use in a wide range of applications.

Note
Thunderbolt™ devices or cables are not supported.
Please use short length and high-quality cables, especially for higher resolutions.

• Connectors:
Function 1
Input: 2 x USB 10 Gbps USB Type-C™ female
Output: 1 x USB 10 Gbps USB Type-C™ male
Function 2
Input: 1 x USB 10 Gbps USB Type-C™ male
Output: 2 x USB 10 Gbps USB Type-C™ female
• 1 x USB Type-C™ female (5 V power supply)
• 1 x button with LED indicator for 1 or 2
• Resolution up to:
7680 x 4320 @ 60 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
• Data transfer rate up to 10 Gbps
• USB Type-C™ Power Delivery (PD):
up to 20 V 5 A, max. 100 W
• Plastic housing
• Colour: black
• Dimensions (LxWxH): ca. 55 x 55 x 15 mm
• Cable length without connectors: ca. 50 cm

• PC or laptop with a free USB Type-C™ port
• USB connection cables
• Power source with a free USB Type-A port

Package content

• Switch bidirectional

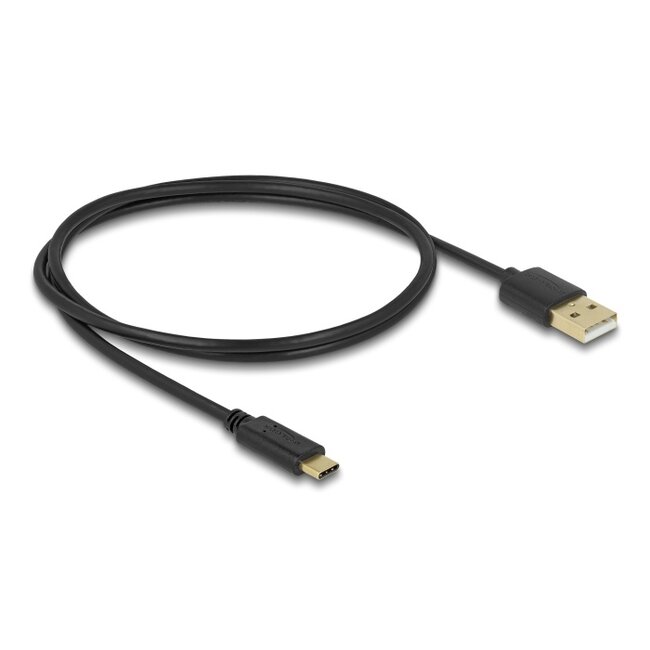

• USB power cable, length: ca. 1 m
• User manual
