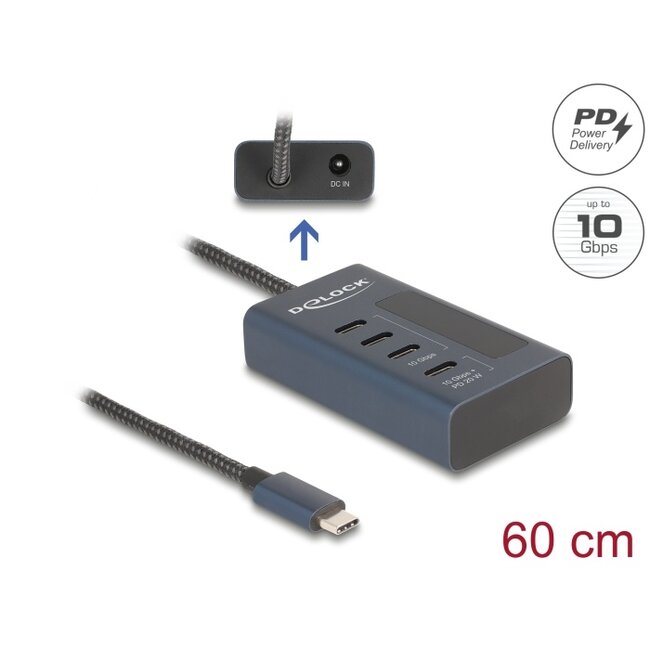

The USB hub by Delock can be connected via USB Type-C™ interface to a PC or laptop. It has four USB-C™ connectors. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected.

USB-C™ PD 3.0 port
The USB Type-C™ PD port provides up to 20 watts of output power. The LED display next to the connector shows the current charging power. Connected devices such as smartphones can be charged or data can be transferred at 10 Gbps.

Note
DisplayPort Alternate Mode (DP Alt Mode) is not supported, so no video signals are transmitted and no monitors can be connected.

• Connectors:
1 x USB 10 Gbps USB Type-C™ male
3 x USB 10 Gbps USB Type-C™ female
1 x USB 10 Gbps USB Type-C™ female PD 3.0 (max. 9 V / 2.22 A)
1 x 12 V DC jack
• Data transfer rate up to 10 Gbps
• Host device cannot be charged via PD port
• 3 x LED indicator
• 1 x power indicator
• Robust metal housing
• Colour: midnight blue
• Plug & Play
• Cable length: ca. 60 cm
• Dimensions (LxWxH): ca. 68 x 39 x 17 mm

Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 12 V / 2 A / 24 W
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm

• Android 11.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

Package content

• Hub USB 10 Gbps
• External power supply
• User manual
