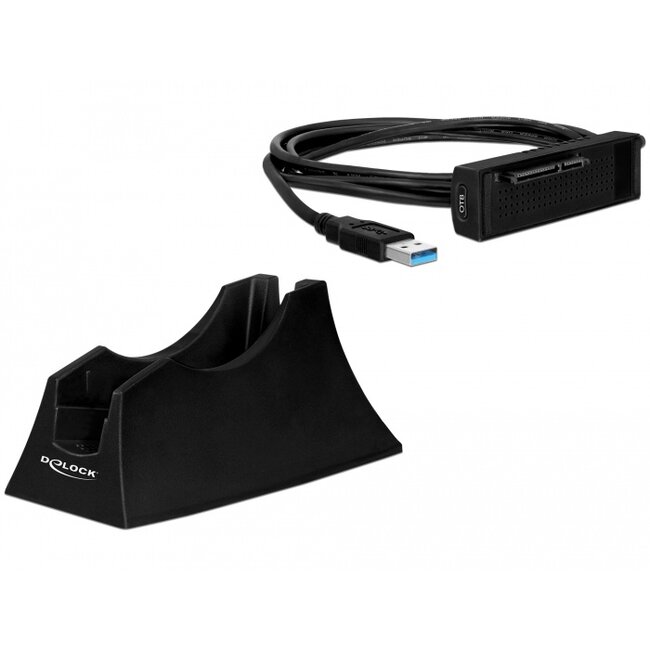

This HDD docking station enables an external connection of a 2.5″ or 3.5″ SATA HDD via a USB interface. The docking cable can also be connected to your hard drive without using the holder. You can protect the hard disk on the PCB side and avoid a possible short circuit by inserting the included cover plates into the mounting holes of your 2.5″ or 3.5″ HDD. Furthermore you can connect a Blu-ray or DVD drive to the docking connector and connect it to your system. With the One-Touch Backup function you can easily synchronize the data on your hard disk by just one push of a button.
Specification• Connectors:
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A male
1 x SATA 6 Gb/s 22 pin receptacle
1 x DC jack
• Function key:
1 x backup button
• For hard drives, SSD
• For optical drive drive when using the docking cable
• Data transfer rate up to 5 Gbps
• With backup function
• LED indicator
• Plug & Play
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 11 mm
• Windows Vista/7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• Docking cable
• HDD holder
• 3.5″ cover plate, 2.5″ cover plate
• External power supply 12 V / 2 A
• Backup software
• User manual
