These waterproof solder wire connectors or heat shrink connectors by Delock are perfect for connecting, soldering, insulating and sealing wires in one step.
Selection of different sizes and colours
This set includes wire connectors with 4 different diameters and 4 different colours for easy differentiation and identification.
Application of solder wire connectors
The stripped wires can be simply placed to the solder sleeve, fixed and heated with a heat gun. After cooling, a waterproof insulation forms around the solder joint and ensures a strong connection of the wires. The wire connectors ensure high tensile strength, tear resistance and protect against mechanical damage.
Multifunctional application
The solder wire connectors are ideal for electricians, craftsmen, for repairs of devices at home or in the workshop.

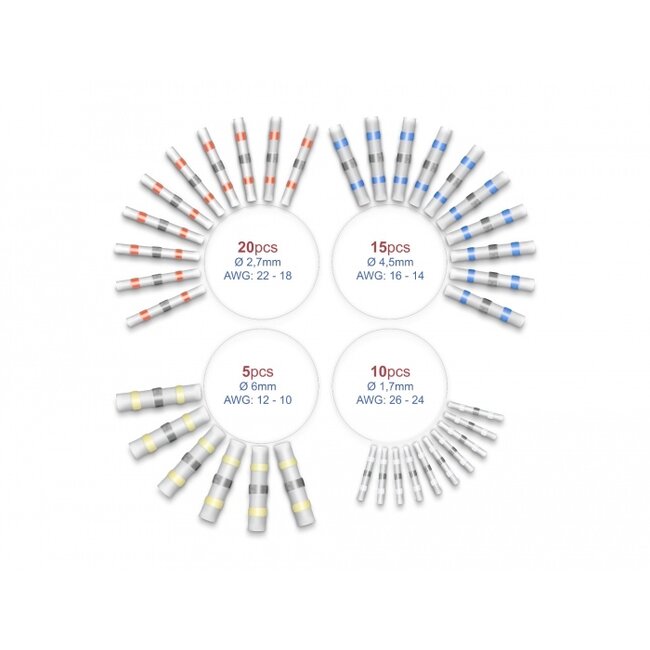

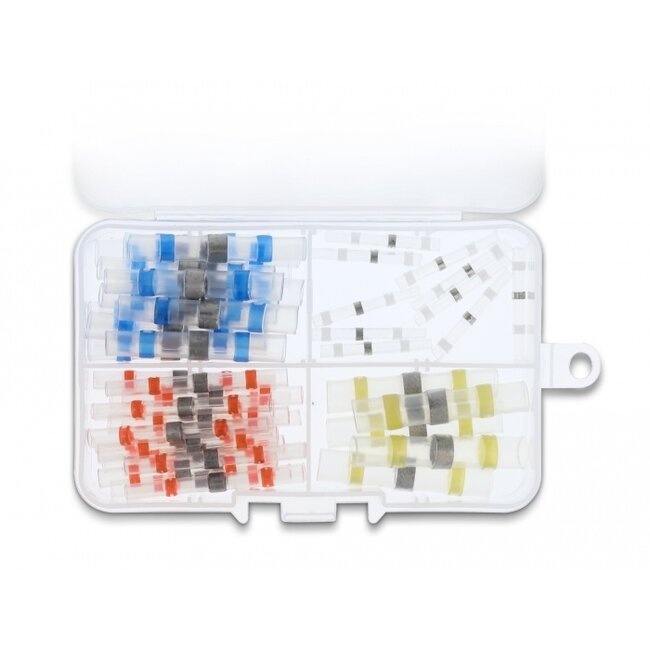

• Content:
10 x diameter 1.7 mm, AWG: 26 - 24, white
20 x diameter 2.7 mm, AWG: 22 - 18, red
15 x diameter 4.5 mm, AWG: 16 - 14, blue
5 x diameter 6.0 mm, AWG: 12 -10, yellow
• Shrinkage ratio 2:1
• Shrinking temperature: 60 °C ~ 125 °C
• Solder melting temperature: 138 °C
• Material: polyolefin
• Box dimensions (LxWxH): ca. 105 x 65 x 23 mm
• 50 x solder wire connectors
