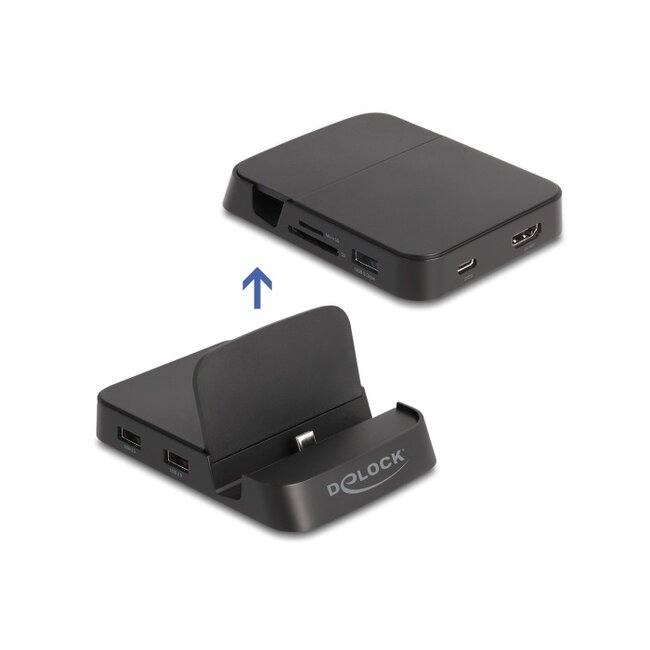

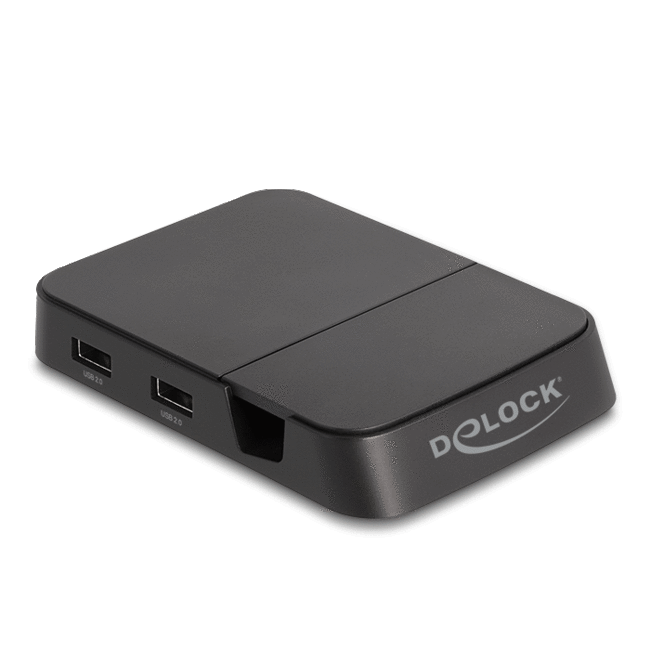

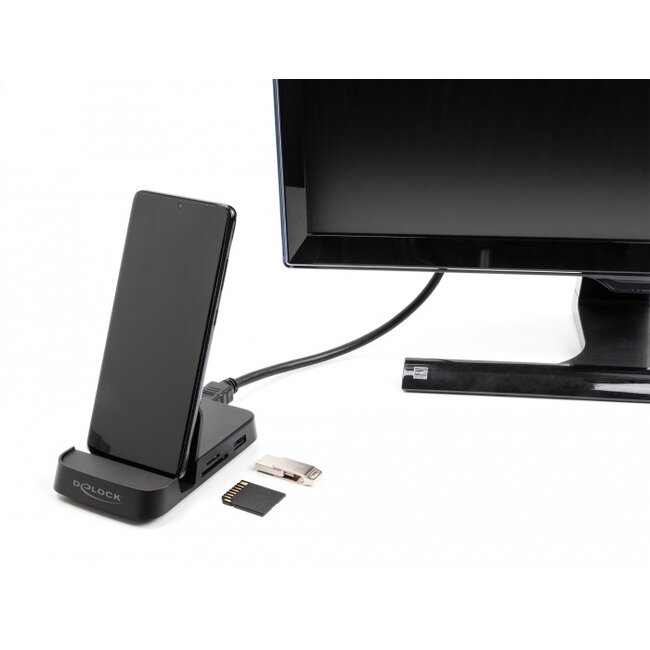

This smartphone docking station by Delock is the ideal addition to your desk or when traveling and turns a smartphone into a full desktop system. In addition to 3 plug & play capable USB Type-A ports, it also offers an HDMI interface, as well as an SD and Micro SD slot for memory cards. A monitor with a maximum resolution of up to 4K 30 Hz can be operated at the HDMI output.
Low power mode
The docking station draws its power from the phone thanks to low the power mode but can also be operated with the smartphone power adapter for more power or to relieve the phone.
Note
The docking station is suitable for Android smartphones that have the USB 5 Gbps standard and a USB Type-Câ„¢ port as well as supporting DisplayPort Alternate Mode.

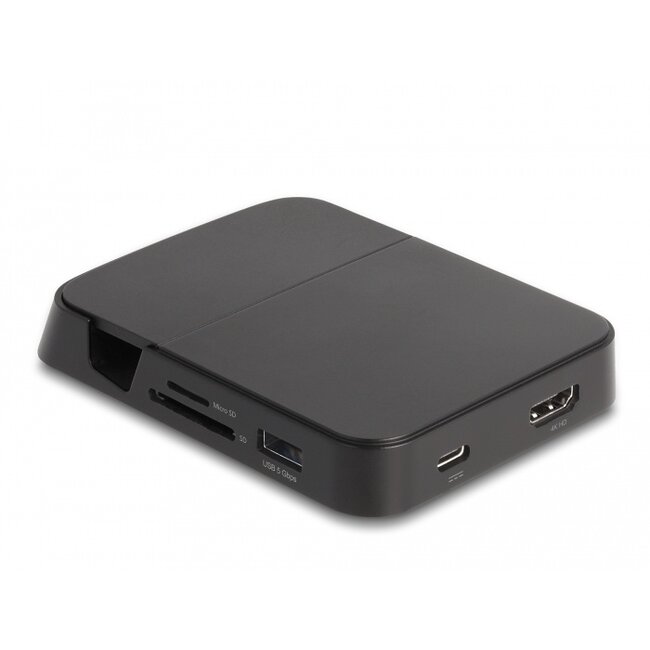

• Connectors:
1 x USB 5 Gbps USB Type-Câ„¢ male
1 x USB 5 Gbps Type-A female
2 x USB 2.0 Type-A female
1 x HDMI female
1 x USB Type-Câ„¢ female (power supply)
• Maximum resolution: 3840 x 2160 @ 30 Hz
(depending on the system and the connected hardware)
• Transmission of audio and video signals
• Input voltage: 12 V
• Output power: 1 x USB Type-C™ male max. 15 W
• Supports HDCP
• Supports Samsung DeX
• Plastic housing
• Colour: black
• Weight: ca. 82 g
• Dimensions (LxWxH): ca. 109 x 80 x 20 mm
• Plug & Play
• Android 10.0 or above
• Windows 10/10-64/11
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free Thunderbolt™ 3 port
Package content
• Docking station
• User manual
