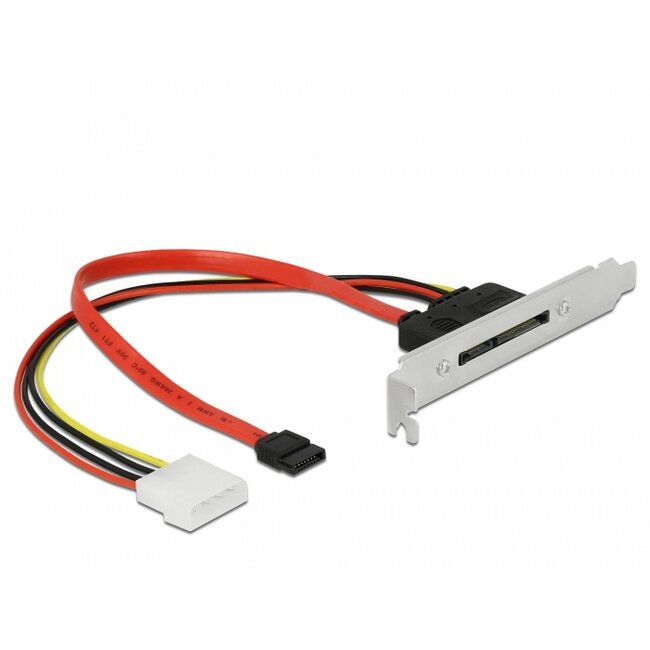

The slot bracket by Delock expands the PC by a SATA 22 pin plug and makes it possible to lead the internal SATA connector to the outside, in order to connect external SATA devices with the help of a cable (e.g. item 84406). This allows e.g. card readers (item 91661 and 91673) or hard disks to be operated externally in case of service.
The cables of the slot bracket are connected internally to the motherboard and the power supply unit. Thus the internal power connection and the SATA connection are led to the outside, in order to connect devices with SATA 22 pin connection to the computer.
Note
It is not possible to connect SATA cables with latching function.
• Connectors:
internal:
1 x SATA 6 Gb/s 7 pin receptacle
1 x Molex 4 pin male
external:
1 x SATA 6 Gb/s 22 pin plug
• Data transfer rate up to 6 Gb/s
• Downwards compatible to SATA 1.5 Gb/s and 3 Gb/s
• Screw type: #4-40 UNC
• Cable gauge:
26 AWG data line
18 AWG power line
• Slot bracket: standard
• Cable length without connectors: ca. 25 cm
• PC with one free slot
• A free SATA 7 pin plug on the motherboard
• A free Molex 4 pin receptacle
Package content
• Slot bracket
