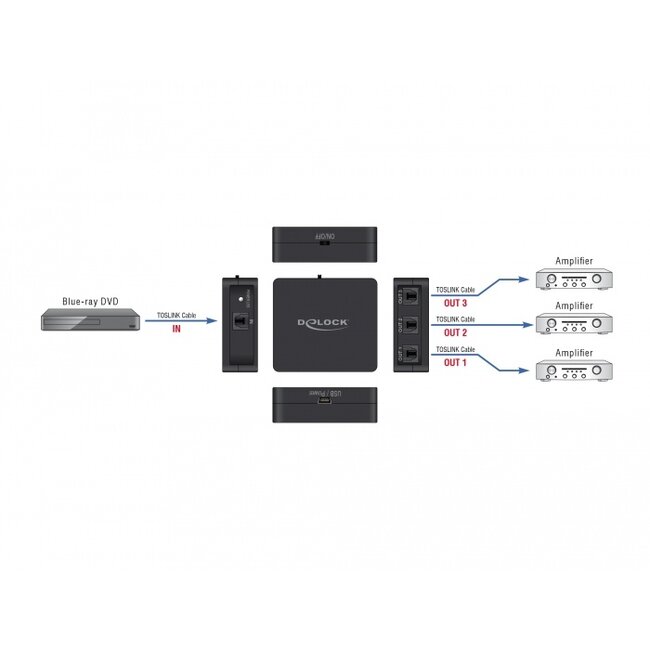

With this TOSLINK splitter by Delock up to three TOSLINK devices can be operated at the same time at one TOSLINK output.
Supports HD audio formats
The splitter supports all popular 2.0 and 5.1 audio formats such as LPCM, Dolby Digital, DTS Audio and therefore offers a sound experience like in a cinema.
High resolution sampling rate
The splitter offers a sampling rate of up to 24 bit and 96 kHz. This allows a loss-free playback of the sound in the High-Res audio range.
High transmission distance
The splitter supports an output transmission distance of up to 40 m via an optical TOSLINK cable with a signal loss of less than 0.2 dB / m.
USB powered
The splitter does not require an additional external power supply, power will be supplied via the included USB cable.
• Connectors:
Input:
1 x TOSLINK female S/PDIF
1 x USB Type Mini-B female (5 V power supply)
Output: 3 x TOSLINK female S/PDIF
• Supported sample rates: 32 / 44.1 / 48 / 96 kHz
• Bit rate 16 - 24 Bit
• Baud rate: max. 16 Mbps
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Supports signal retiming
• On / Off switch
• Power LED (blue)
• Plastic housing
• Colour: black
• Dimensions (LxWxH): ca. 61 x 54 x 20 mm
• Voltage: 5 V
• Surge Protection
• USB bus powered
• Digital optical audio signal
• A free USB Type-A female port
Package content
• TOSLINK splitter

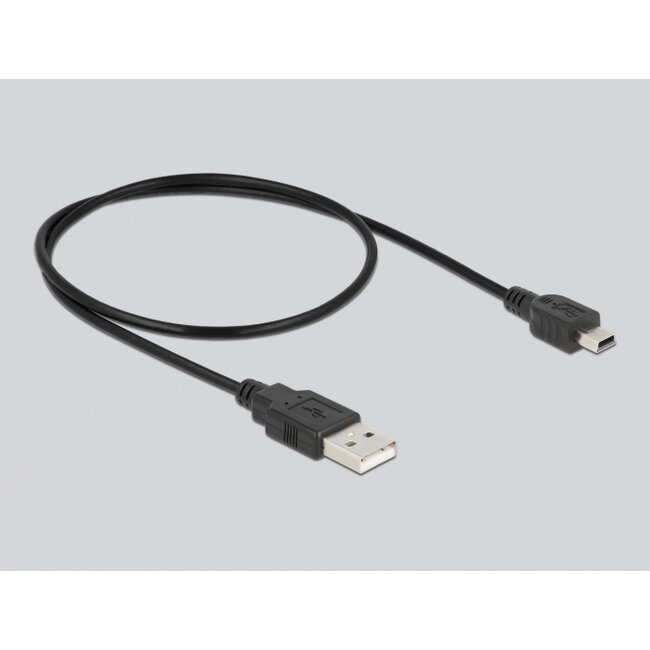

• USB Type-A to Type Mini-B cable, length ca. 75 cm
• User manual
