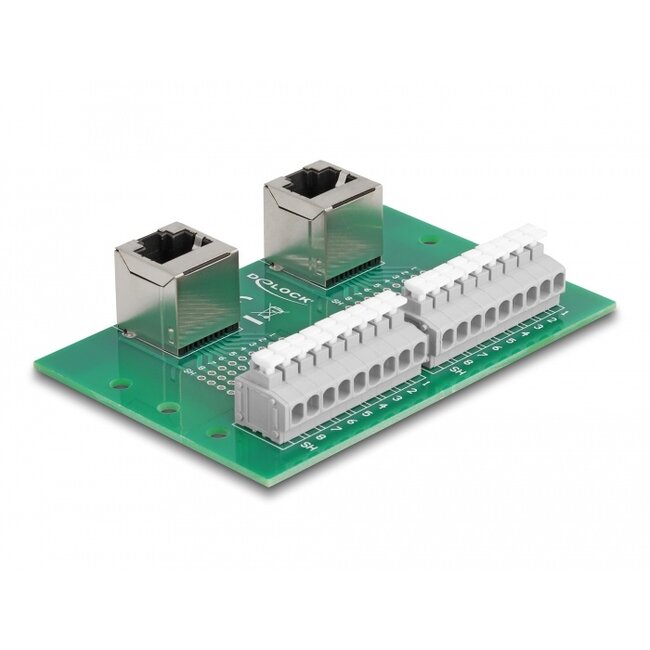

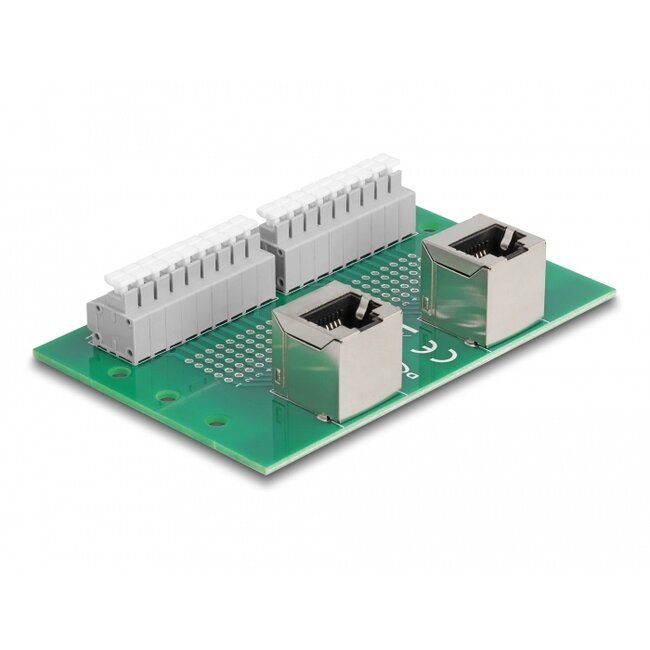

This adapter by Delock can be used to connect various network devices. Strands with stripped ends can be connected via the terminal block toolfree.

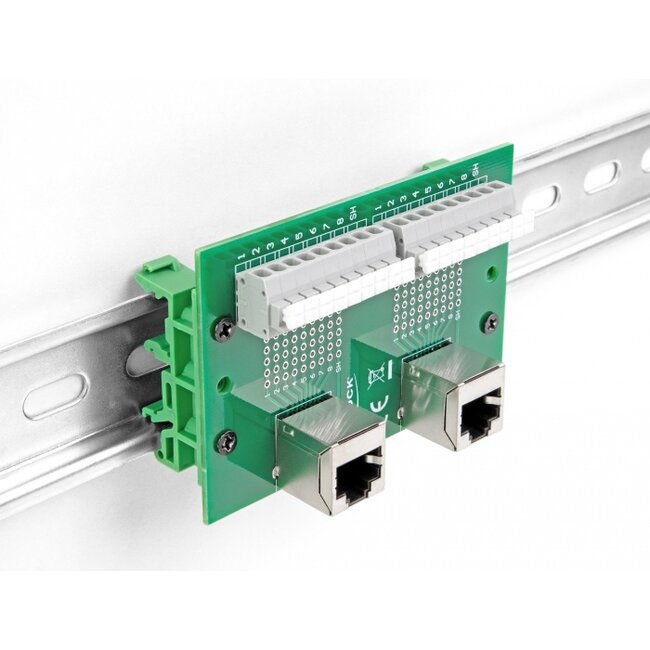

DIN rail mounting
With the clips included in the delivery content, the adapter can be attached to a 15 mm or 35 mm wide DIN rail.

• Connectors:
2 x RJ45 female angled
2 x 9 pin terminal block
• Pin assignment: 1:1
• Pitch: 3.81 mm
• Useable for a cable gauge from 24 to 12 AWG
• DIN rail mounting: 15 mm and 35 mm
• Operating temperature: -40 °C ~ 100 °C
• Dimensions (LxWxH): ca. 91 x 60 x 18 mm

• Two free RJ45 male
• 15 mm or 35 mm DIN rail

Package content

• Adapter

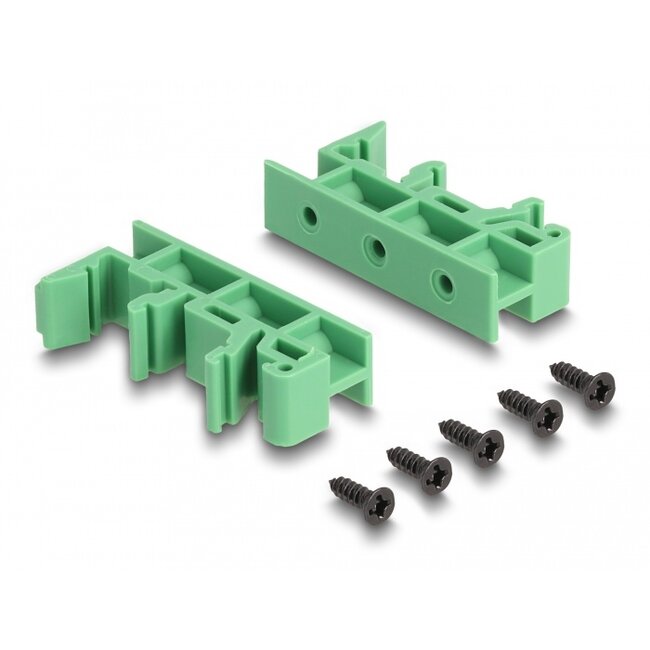

• 2 x DIN rail clip
• 5 x screws
