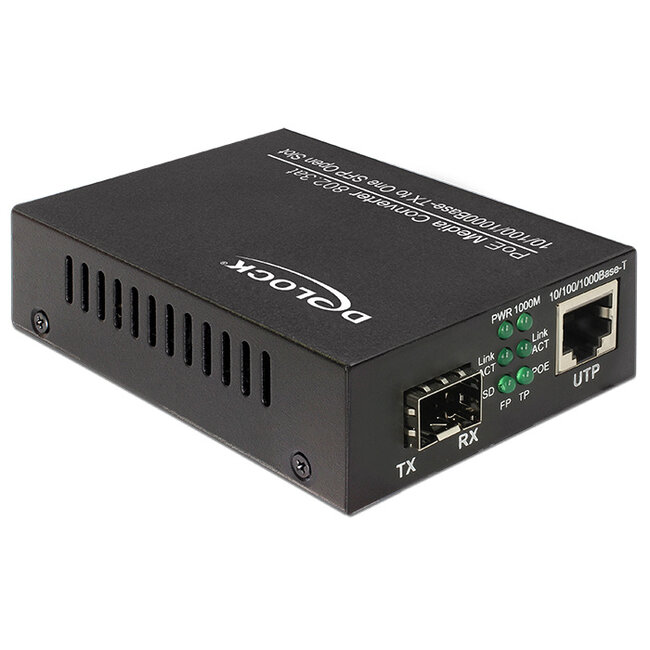

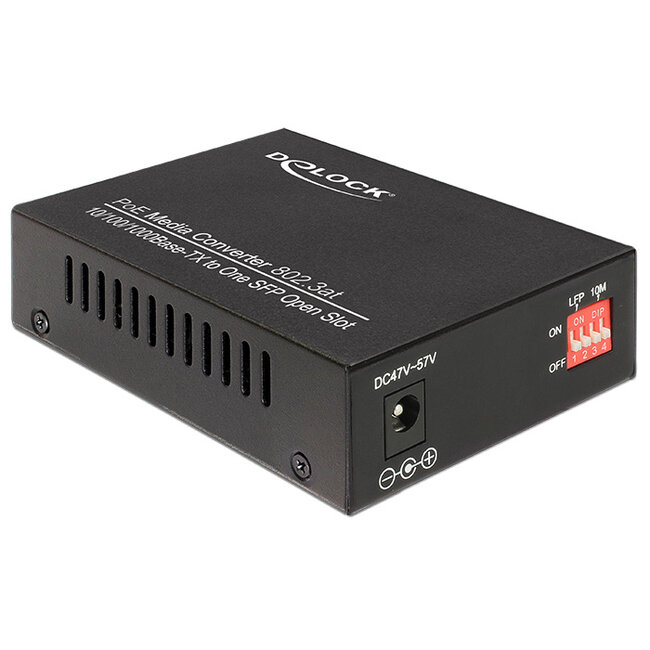

This Gigabit Ethernet Media Converter by Delock can be used to expand a network with an optical fiber interface. In the SFP slot, various optional 1 Gb/s SFP modules by Delock can be used. The RJ45 port supports Power over Ethernet according to IEEE802.3af / 802.3at, so PoE-enabled devices, such as an IP camera or a PoE splitter, can be supplied with power via the network cable.
Specification• Connectors:
1 x SFP slot for 1000Base-X SFP module (SFP module not included)
1 x RJ45 jack for 10/100/1000 Mb/s Base-T (PoE+)
1 x DC jack 5.5 x 2.1 mm (power)
• Data transfer rate up to 1 Gb/s
• 6 LEDs for status monitoring
• LFP (Link Fault Passthrough)
• Supports IEEE 802.3 / 802.3u / 802.3ab / 802.3z
• Supports IEEE 802.3at (PoE+) and 802.3af (PoE)
• Spare-Pairs power transmission (Mode B, pairs 4/5 and 7/8)
• Power output: max. 30 W
• Metal housing
• Fanless
• Operating temperature: -20 °C ~ 60 °C
• Dimensions (LxWxH): ca. 95 x 71 x 26 mm

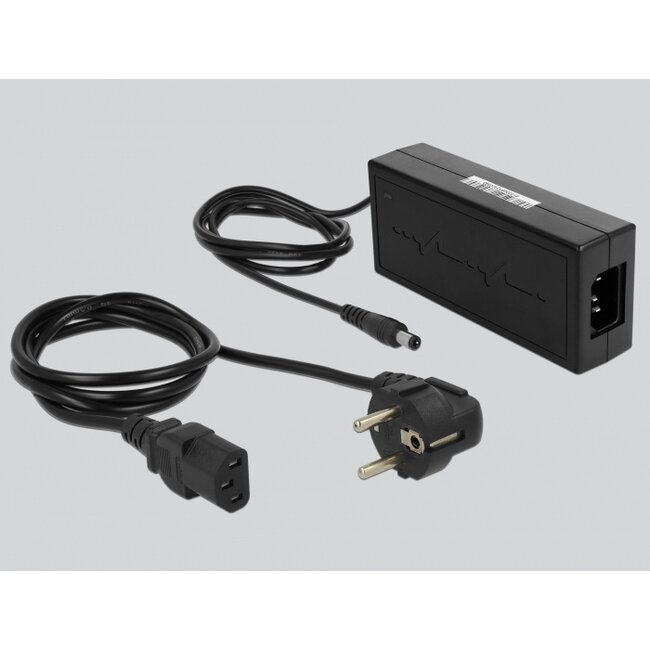

Power supply specification
• Power supply with IEC connector
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: DC 48 V / 1.25 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
• 1000Base-X SFP module
• Device with one free RJ45 port
Package content
• PoE Media Converter
• Power supply
• Power cord
• User manual
