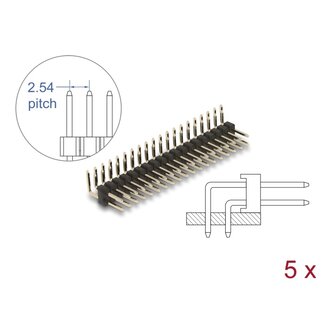

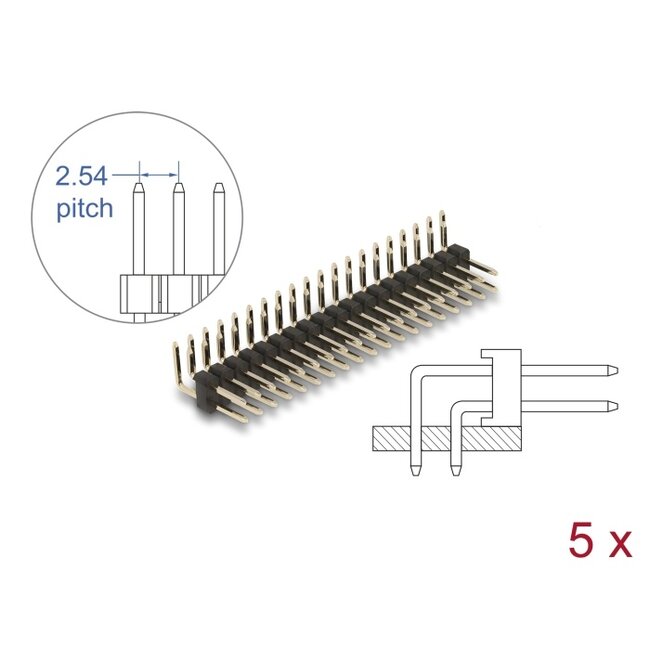

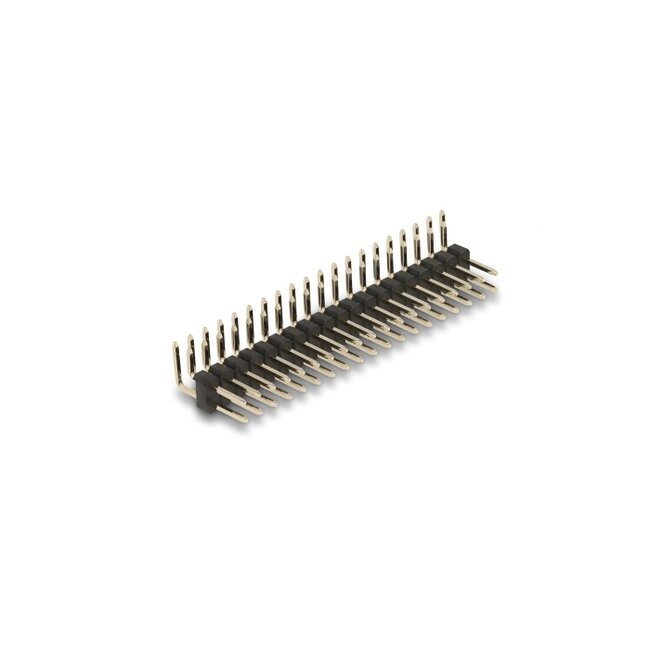

These pin headers by Delock can be used on printed circuit boards to create a connection between individual boards.

• Number of pins: 40
• Pitch: 2.54 mm
• Contact resistance: 20 mΩ
• Isolation resistance: 1000 MΩ / min.
• Withstanding voltage: 500 V AC / DC
• Operating temperature: -40 °C ~ 105 °C
• Processing temperature: 230 °C (30 - 60 seconds)
• Contacts gold-plated
• Material of header: polyester UL 94V-0
• Colour: black
• Dimensions (LxWxH): ca. 50.8 x 12.9 x 5.0 mm

• 5 x pin header
