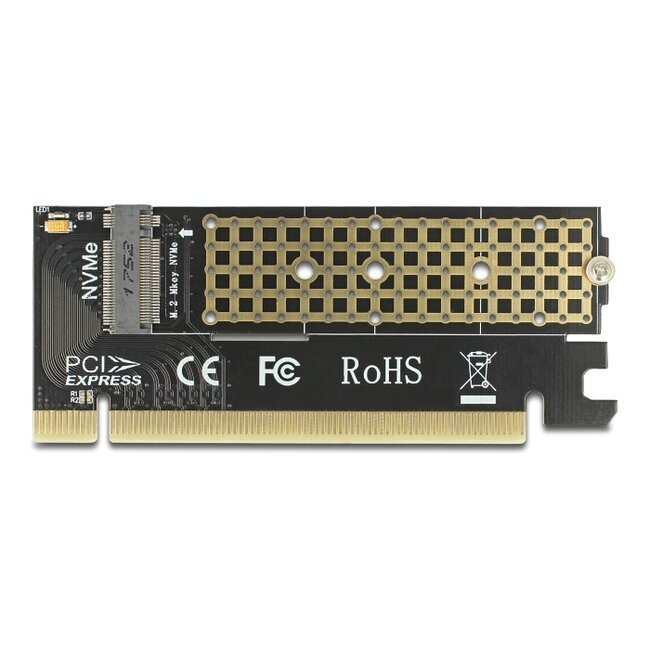

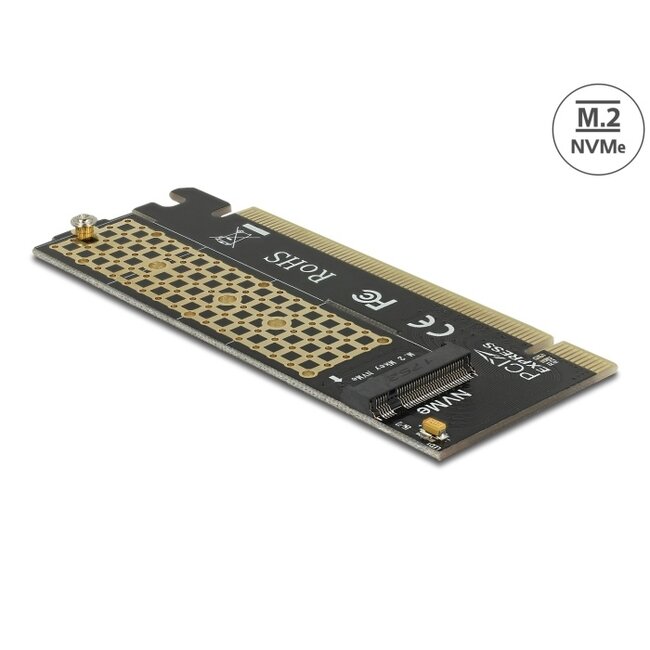

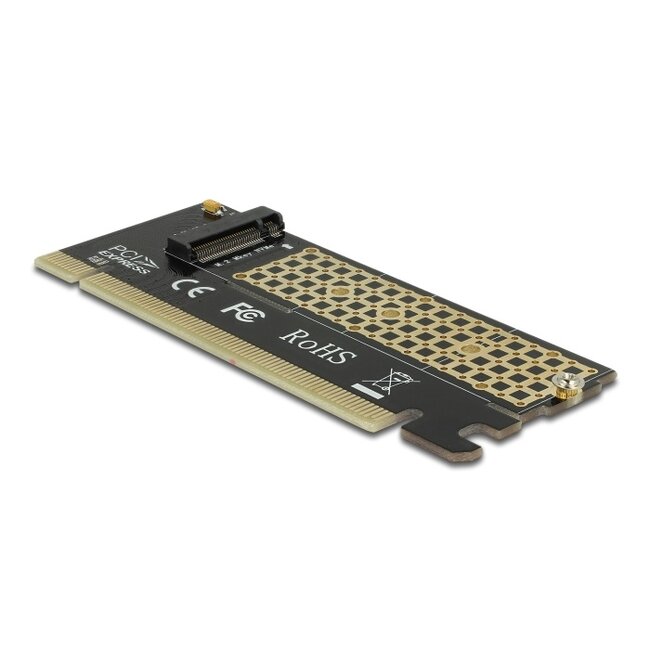

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. If the card will be installed in the PC, the slot bracket does not have to be removed.
Specification• Connectors:
1 x M.2 key M slot
1 x PCI Express x16 (4-Lane), V4.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230
with key M or key B+M based on PCIe
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• 1 x LED indicator
• Holes in the PCB for cooling the SSD
• Holder for lock on PCI Express x16 slots
• Dimensions (LxWxH) without PCIe connector and lock holder: ca. 98 x 32 x 5 mm
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express x16 / x32 slot
Package content
• PCI Express card
• 1 x fixing screw for M.2 module
• Screwdriver
• User manual
