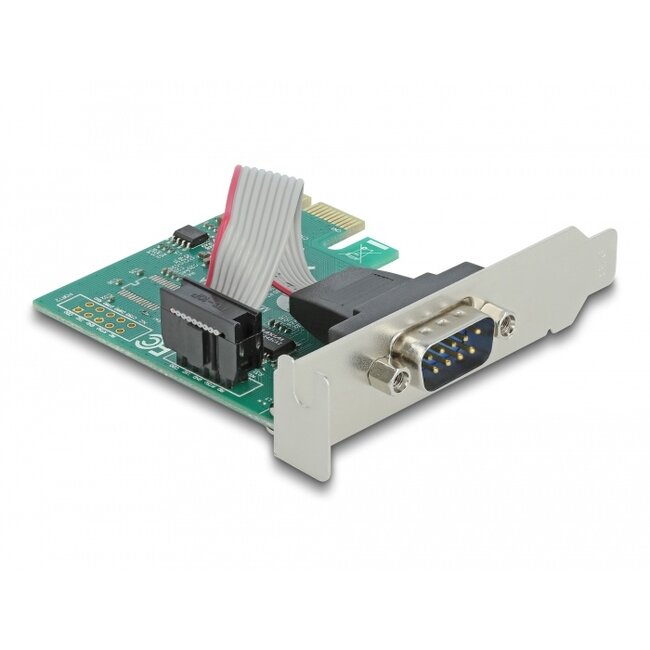

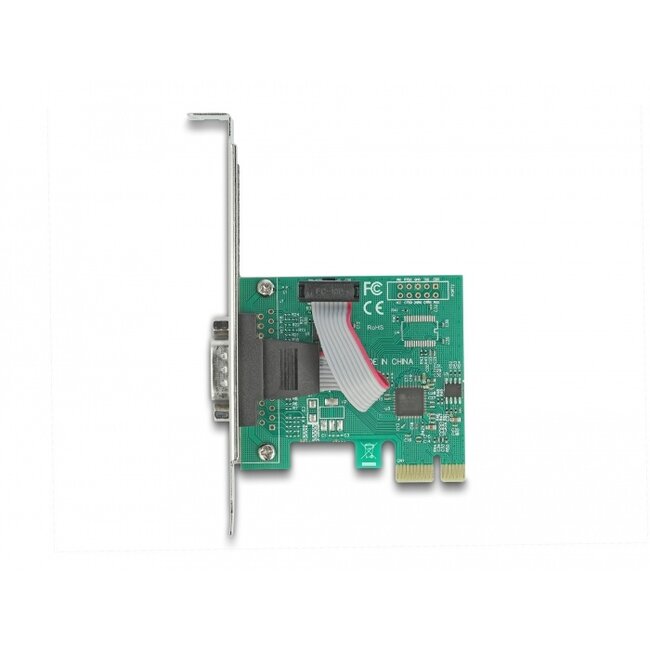

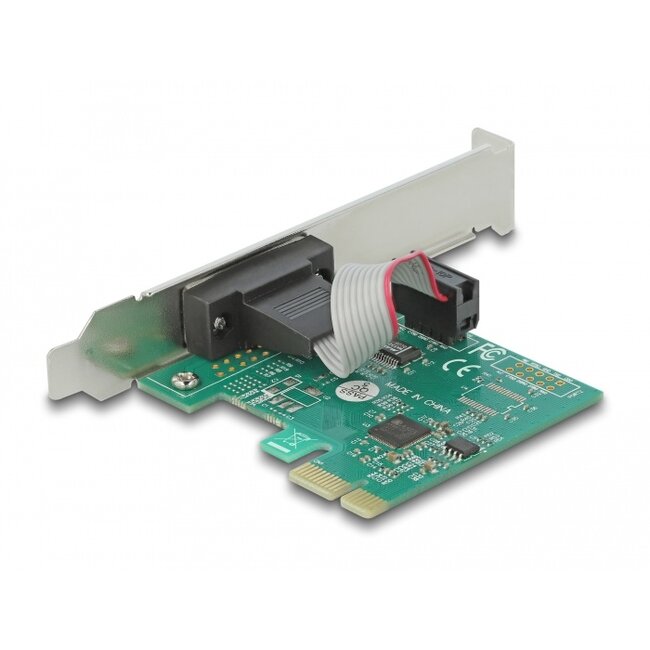

The PCI Express card by Delock expands a PC by one external serial port. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.

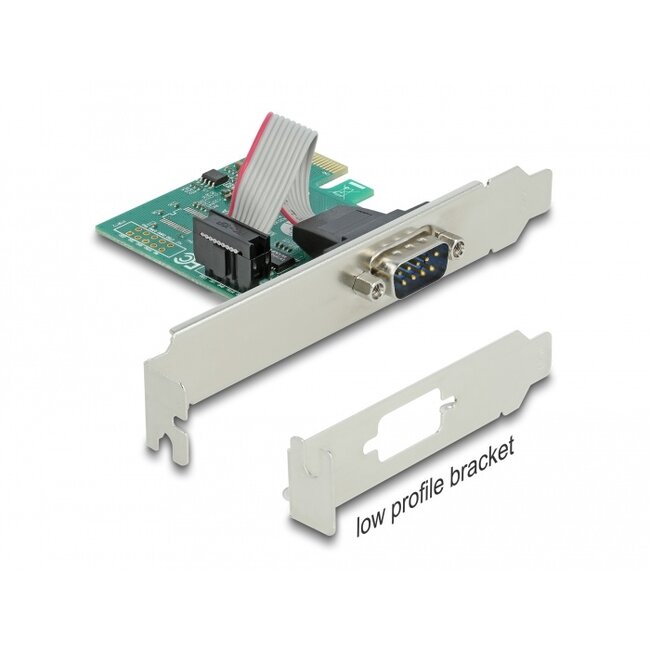

Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
• Connectors:
external: 1 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Data transfer rate up to 921.6 Kbps
• FIFO: 256 byte
• Databits: 5, 6, 7, 8, 9
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 70 °C
• Linux Kernel 2.6.24 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot
Package content
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
