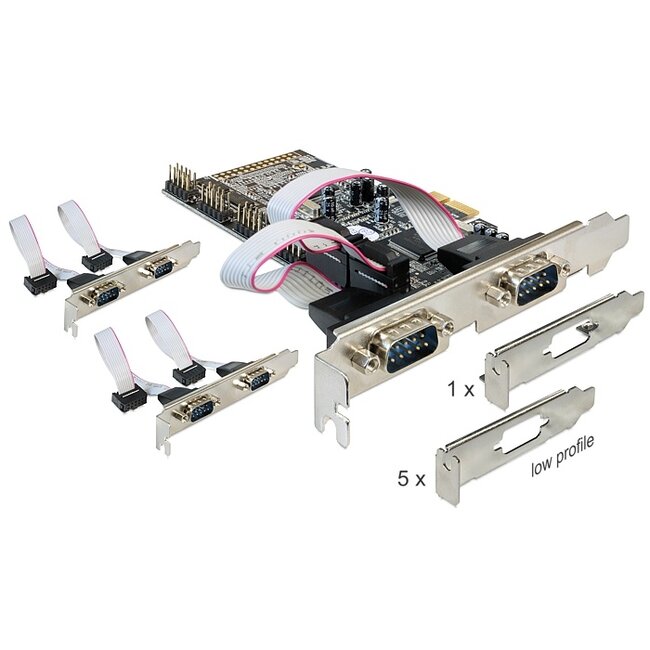

The Delock PCI Express card expands your PC by six external serial ports. You can connect devices like scanner, printer, mouse etc. to the card.
Specification• Connector:
external:
2 x serial RS-232 DB9 male
2 x serial RS-232 DB9 male (separate rear bracket)
2 x serial RS-232 DB9 male (separate rear bracket)
internal:
1 x PCI Express x1, V1.1
• Chipset: Moschip
• Data transfer rate up to 230.4 Kb/s
• FIFO: 256 byte
• Compatible with 16C550 UART
• Windows Server-2003/Server-2003-64/Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64/11, Linux Kernel 2.6
• PC with one free PCI Express slot and two rear slot
Package content
• PCI Express card
• 2 x rear bracket
• 6 x low profile bracket
• Driver CD
• User manual
