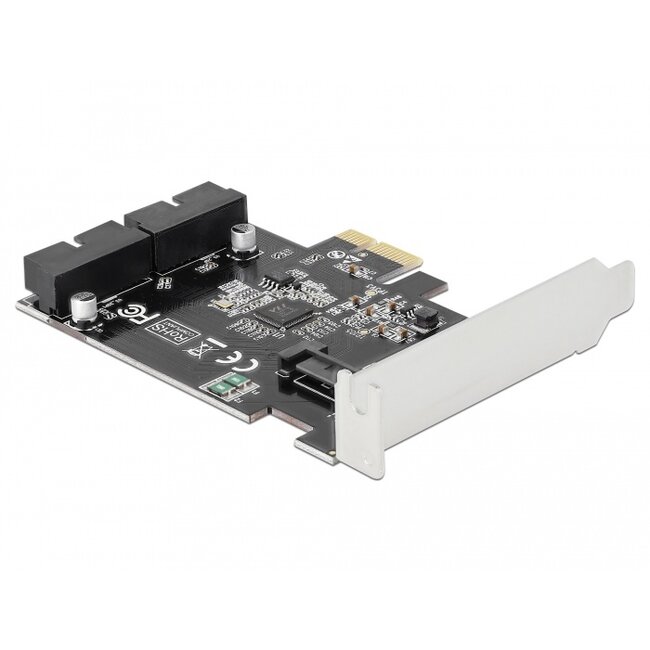

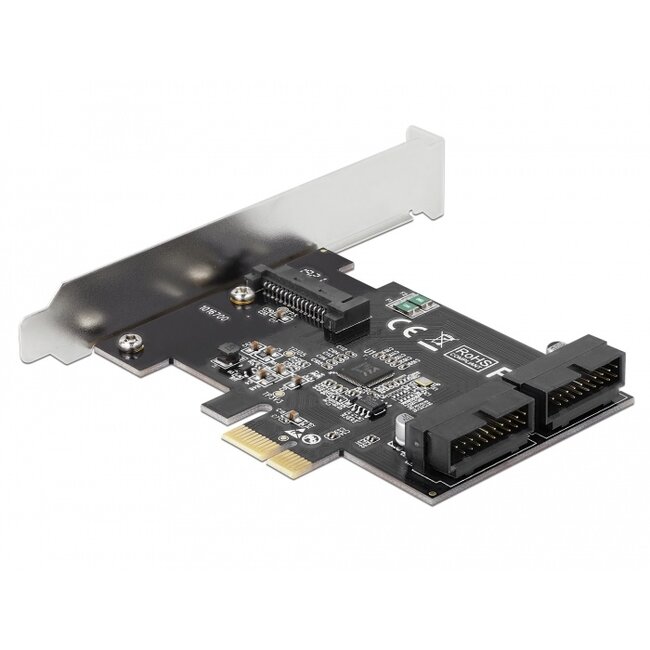

This PCI Express card by Delock expands the PC by two internal USB 3.0 pin header. Different USB devices, such as docking stations, card readers, external enclosure etc., can be connected to the card, by using an optional cable.

Optional expansion of the USB ports
The PCIe card enables the expansion of the external USB ports on the front of the computer or on the slot bracket, by additional cables, slot brackets or front panels.

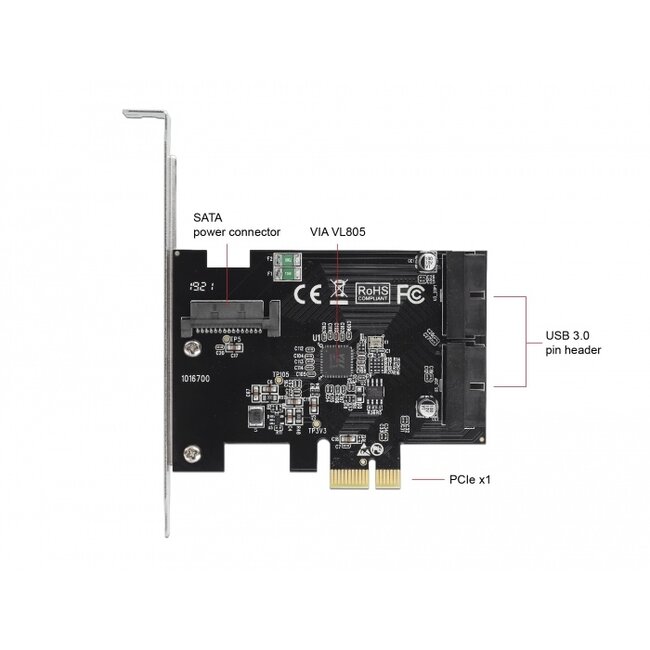

• Connectors:
2 x 19 pin USB 3.0 pin header male
1 x PCI Express x1, V2.0
1 x SATA 15 pin power connector
• Chipset: VIA VL805
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Supports xHCI specifications V1.0
• Supports UASP

• Linux Kernel 4.9.4 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Package content

• PCI Express card
• Low profile bracket
• User manual
