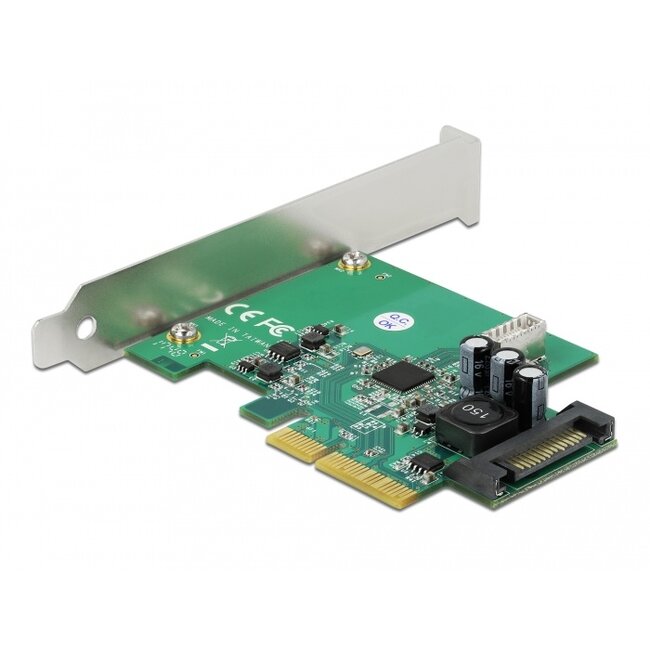

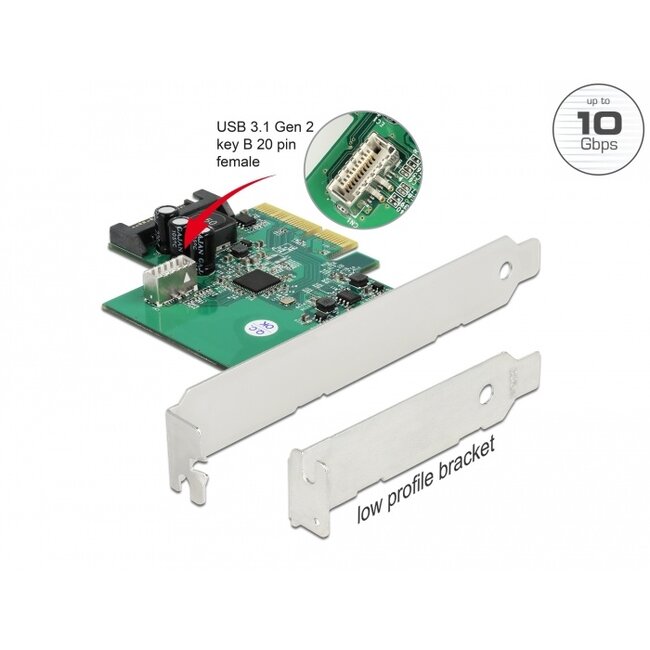

This PCI Express card by Delock expands the PC by one internal USB 3.2 key B 20 pin female port. Various cables can be connected to the card to provide up to two USB Type-A interfaces.
Specification• Connectors:
internal:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) key B 20 pin female
1 x SATA 15 pin power plug
1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3142
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Compliant with USB Attached SCSI Protocol (UASP) Rev. 1.0
• Linux Kernel 4.4 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Optional: power supply with a free SATA power connector
Package content
• PCI Express card
• Low profile bracket
• User manual
