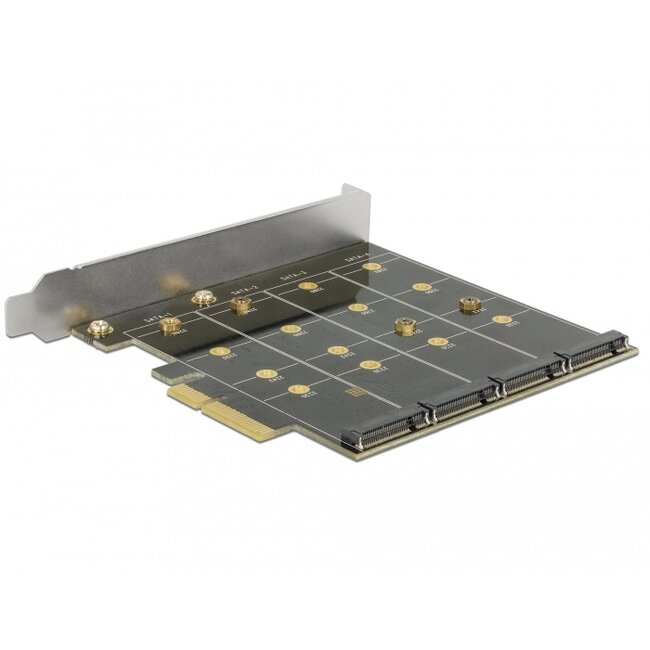

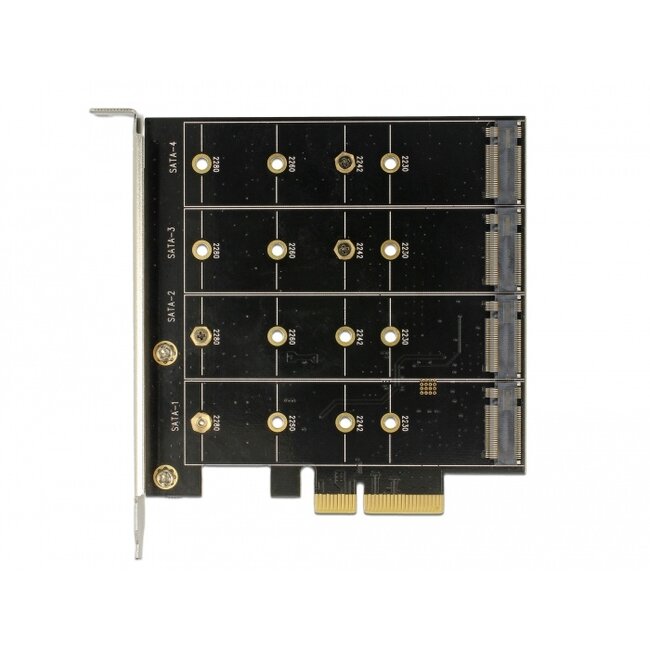

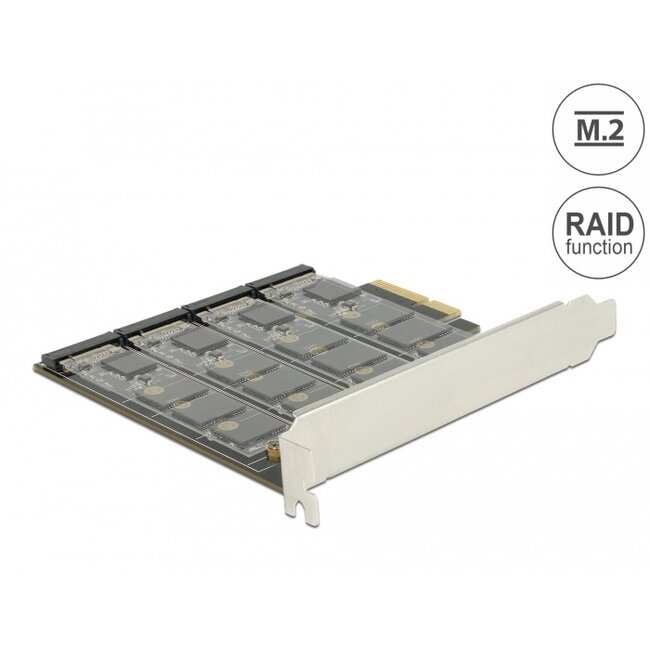

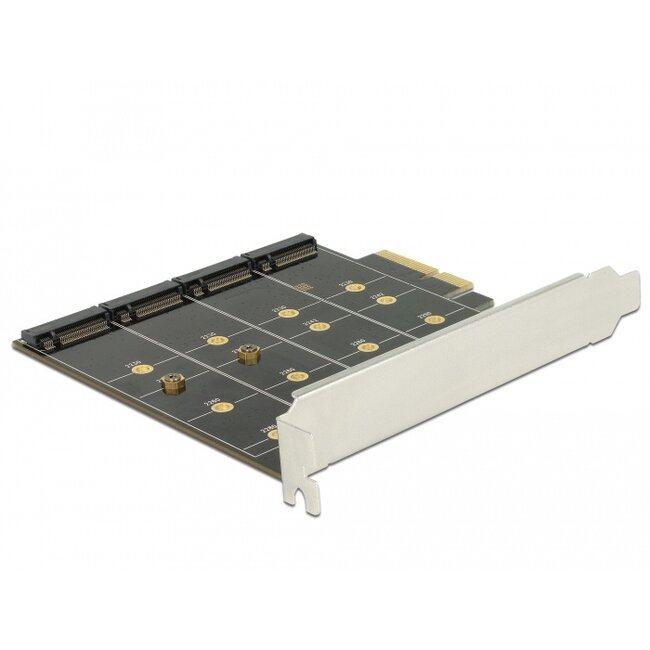

This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SATA modules can be connected in format 2280, 2260, 2242, 2230 with this card. When using more than one SSD, there is the possibility to use different RAID level.

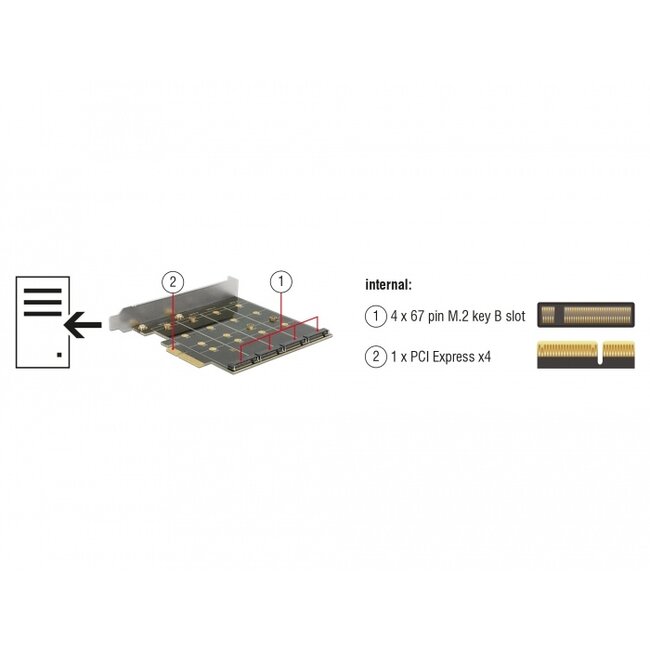

Specification• Connectors:
internal:
4 x 67 pin M.2 key B slot
1 x PCI Express x4
• Chipset: Marvell 88SE9230
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B
or key B+M based on SATA
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, 1, 10
• Windows 8.1/8.1-64/10/10-64, ex Linux Kernel 2.6
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card
• Screwdriver
• Driver CD
• User manual
