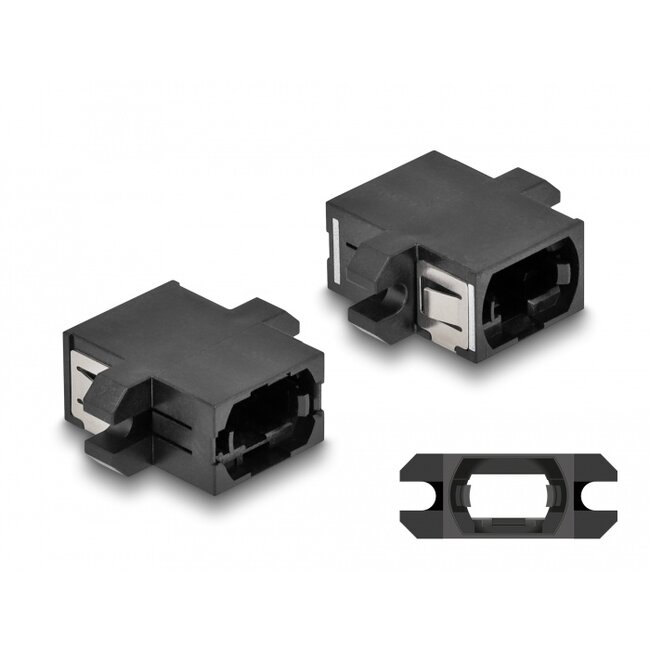

With this MPO coupling by Delock, two MPO male connectors can be easily connected to each other. The coupling enables a direct connection with the MPO optical fiber cables and is suitable for simple mounting in optical fiber connection boxes, cabinets, HD cassettes and patch panels.

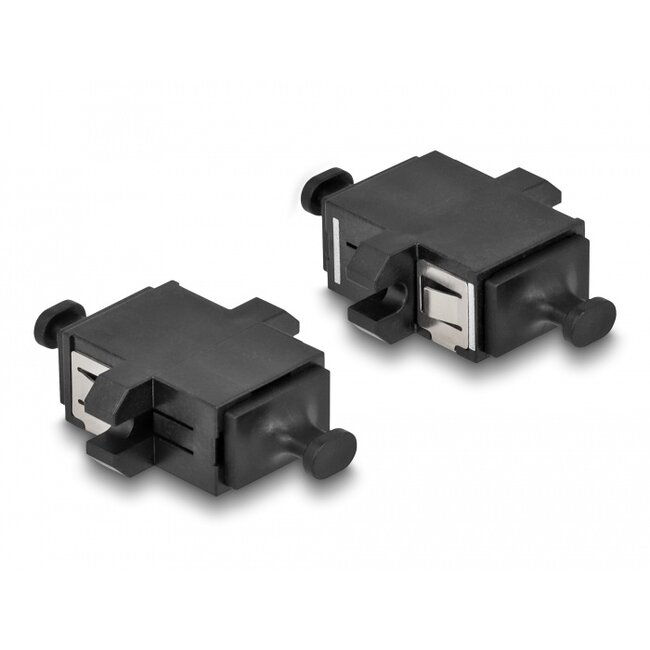

Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
• Connectors:
1 x MPO female
1 x MPO female
• Key-up to key-down direction
• With dust cover
• Mounting via metal holder or screws
• 2 x mounting holes
• Mounting hole diameter: ca. 4 mm
• Pitch of screw hole: ca. 20 mm
• Panel cut-out (WxH): ca. 14.8 x 9.8 mm
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Material: plastic
• Dimensions (LxWxH): ca. 25.0 x 19.8 x 9.8 mm
• A free MPO male port
Package content
• MPO coupler
