This FTTH optical fiber connection box by Delock is ideal for quickly and securely setting up the fiber optic network in buildings. It can accommodate up to two SC Simplex or LC Duplex couplers.

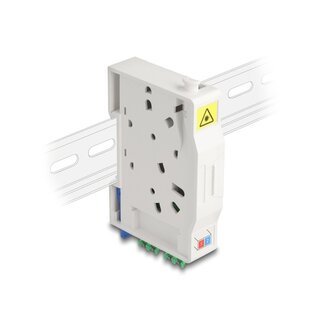

Connection box for DIN rail mounting
The integrated clips allow the mounting on 35 mm DIN rail.
The integrated splice holder enables clean routing of the individual fibers for optimal transmission of lightwave signals.
• Optical fiber connection box for FTTH applications

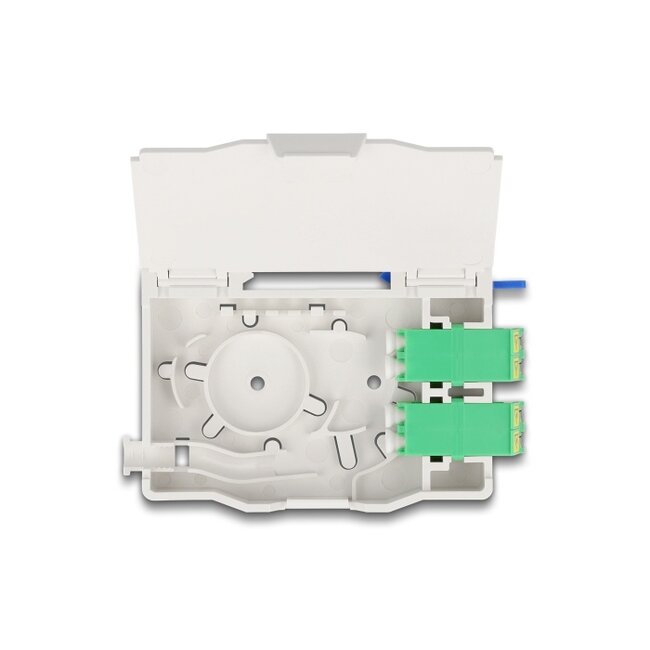

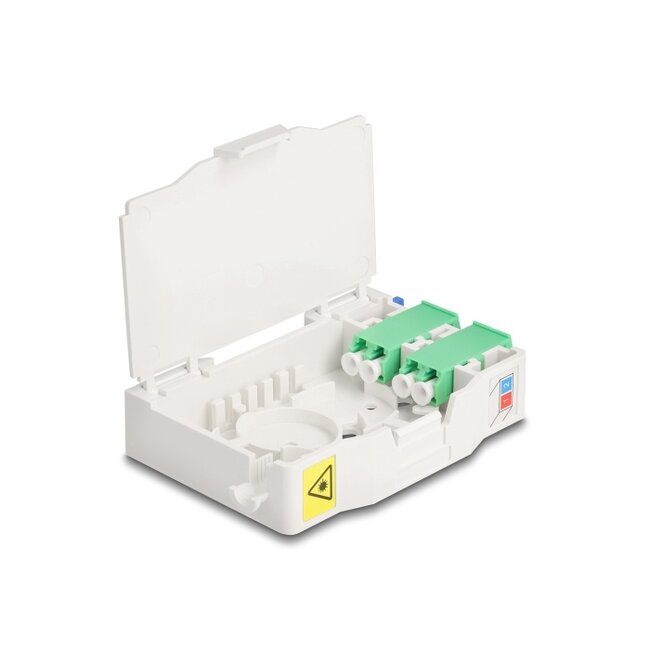

• Connection box with 2 x LC Duplex couplers
• 2 slots for SC Simplex or LC Duplex couplings
• DIN rail mounting: 35 mm
• With splice holder
• Protective flip
• Housing colour: white
• Housing material: ABS
• Dimensions (LxWxH): ca. 85.0 x 60.6 x 18.0 mm
• Optical fiber connection box
• 2 x LC Duplex coupler

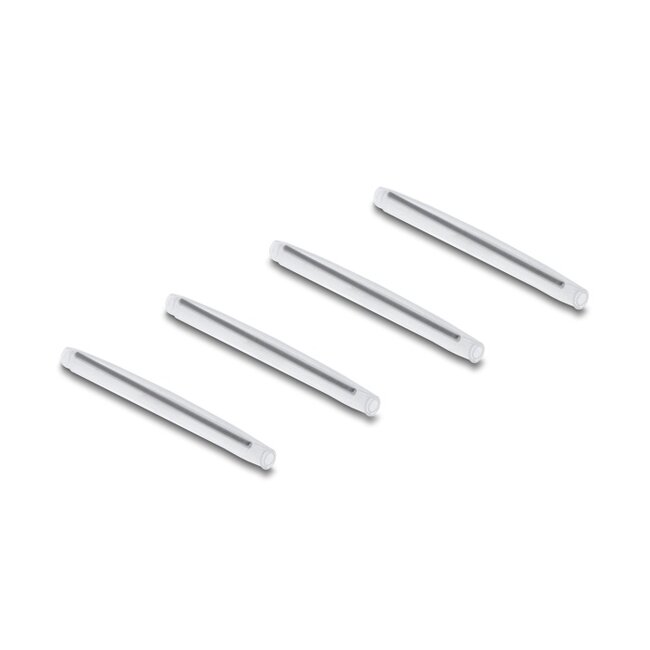

• 4 x heat shrink splice protection
