This pre-assembled FTTH connection set by Delock is ideal for quickly and securely setting up the fiber optic network in buildings.

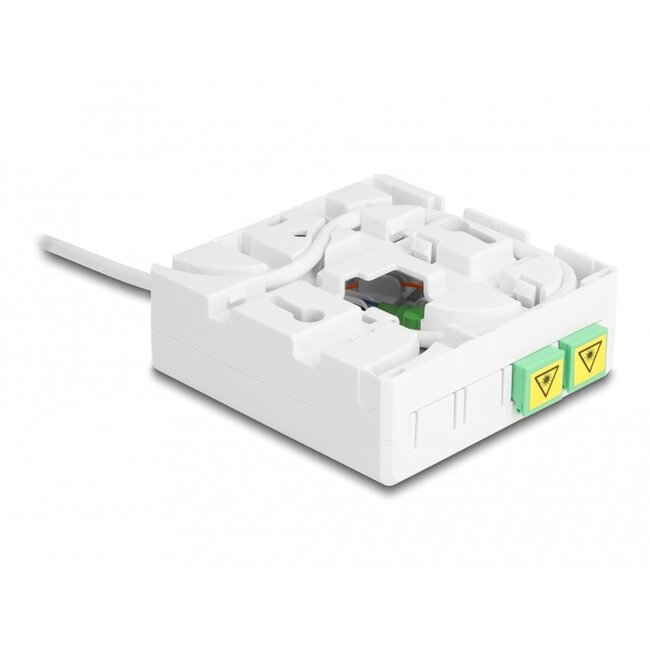

Connection box for wall and DIN rail mounting
The connection box has mounting openings for fastening to flush-mounted and cavity wall boxes. The integrated clips allow the mounting on a 35 mm DIN rail horizontally and vertically.

With FTTH drop cable

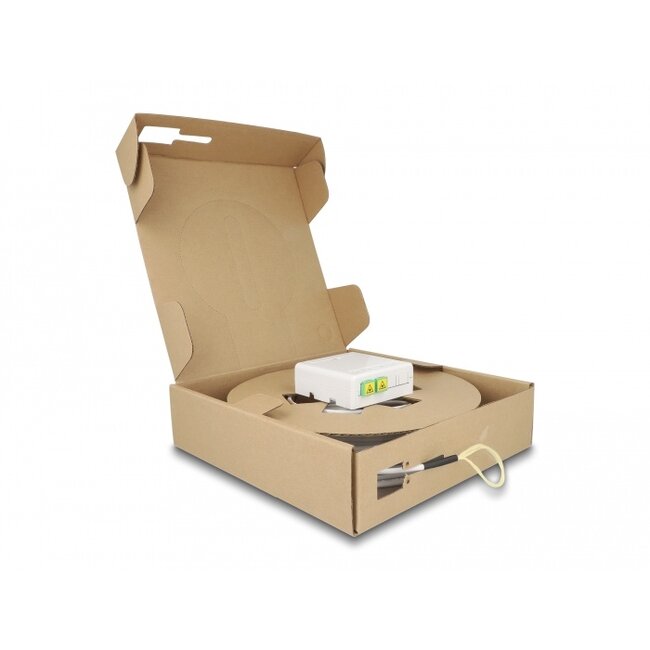

The drop cable is on a reel in a cardboard box and the cables are already mounted in the connection box. The closed cardboard box allows cables to be easily pulled out and laid right up to the house distributor.

• Optical fiber connection box for FTTH applications

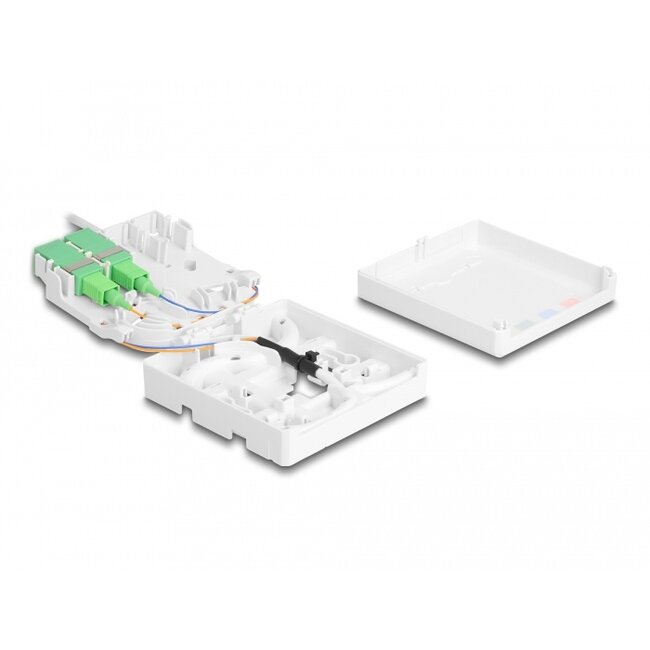

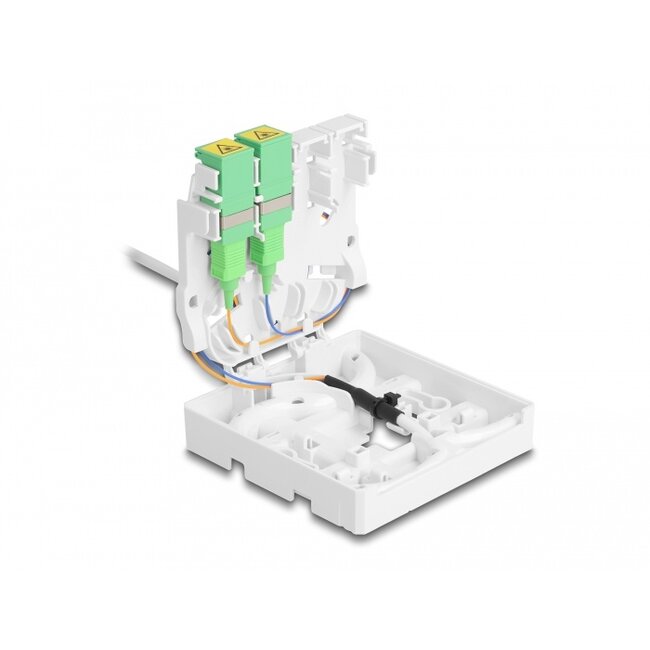

• Connection box with 2 x SC/APC Simplex couplers
• 4 slots for SC Simplex or LC Duplex couplings
• DIN rail mounting: 35 mm
• Wall mounting
• Cable diameter: ca. 4 mm
• Drop cable with G657.A1 fiber
• Cable jacket material: LSOH
• Cable length: ca. 20 m
• Suitable for indoor and outdoor use
• Environmental temperature: -40 °C ~ 85 °C
• Housing colour: white
• Housing material: ABS
• Dimensions (LxWxH): ca. 260 x 260 x 60 mm

• Optical fiber connection set
