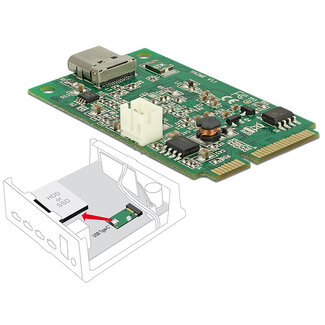

This Mini PCIe module by Delock expands the system by one internal USB-C™ port.
Note
This item does not support the USB Type-C™ Power Deliver protocol.
• Connectors:
1 x Mini PCI Express, Rev. 1.2
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female
1 x 2 pin power connector (5 V)
• Chipset: Asmedia ASM1142
• Interface: PCI Express revision 2.0
• Form factor: Mini PCIe full size
• Data transfer rate:
SuperSpeed USB up to 10 Gb/s
PCI Express up to 5 Gb/s
• Maximum output power: 15 Watt (5 V / 3 A)
• Supports xHCI specifications V1.1
• Compliant with USB Attached SCSI Protocol (UASP) Rev. 1.0
• Hot Swap
• Supports remote wake-up via USB
• Operating temperature: 0 °C ~ 60 °C
• Storage temperature: -20 °C ~ 70 °C
• Humidity: 5 ~ 95 %
• Over current protection
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6.x
• Mainboard with a free Mini PCIe slot with a PCIe interface
Package content
• Mini PCIe module
• Driver CD

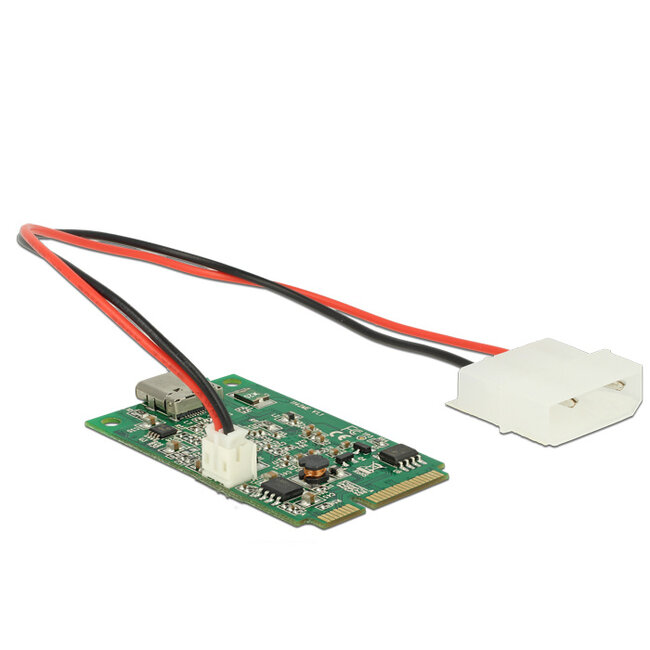

• Power cable, length ca. 20 cm
• User manual
