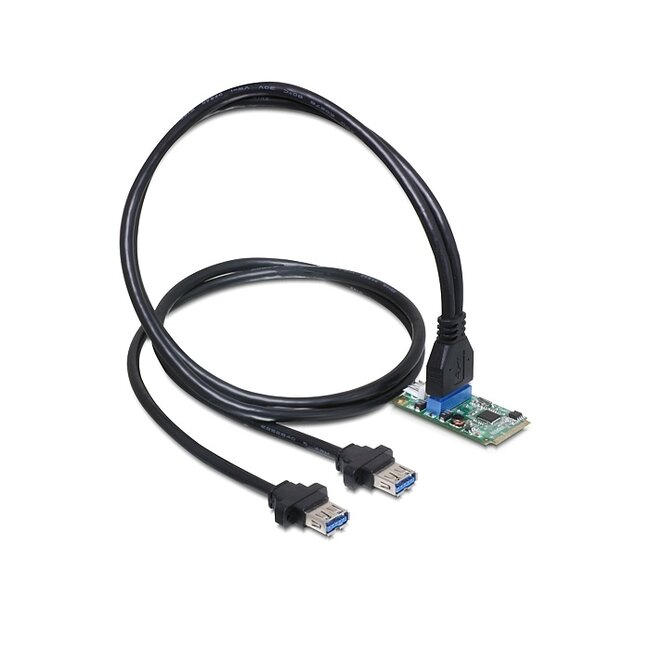

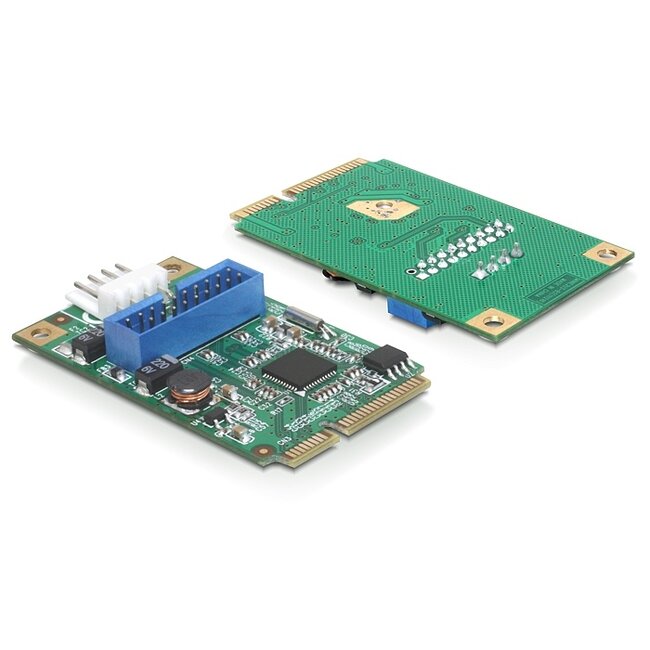

This Mini PCIe module by Delock provides an internal 19 pin USB 3.0 pin header male port. On this port different USB 3.0 devices with pin header female interface can be connected. In the package content is also a connection cable with a pin header female port to two USB-A female ports.
Specification• Connectors:
1 x 19 pin USB 3.0 pin header male
1 x 4 pin power connector
• Chipset: Renesas
• Form factor: Mini PCIe full size
• Interface: PCI Express revision 2.0
• Data transfer rate up to 5 Gbps
• Supports xHCI specifications V1.0
• Electrical power per port: max. 4.5 watt (5 V / 900 mA)
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64
• Motherboard with a free Mini PCIe slot with a PCIe interface
Package content
• Mini PCIe module
• Cable USB 3.0 pin header female to 2 x USB-A female
• Driver CD
• User manual
