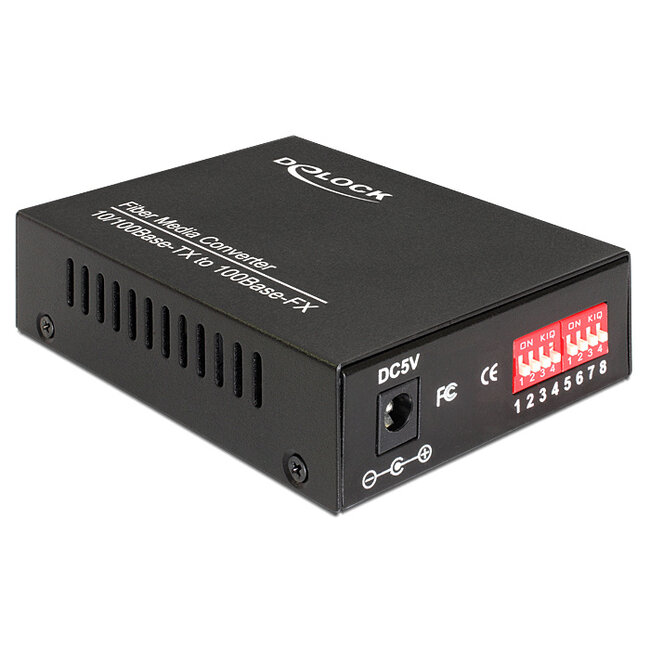

This Delock Fast Ethernet Media Converter can be used to expand your network by an optical fiber interface.
05/2020 New power supply
• For Single-Mode-Fiber, 1310 nm wavelength
• Distance up to 20 km with 9/125 µm fiber
• Connector:
SC Duplex connector for 100 Base-FX
RJ45 connector for 10/100 Base-TX
• Transmission rate up to 100 Mb/s
• 6 LEDs for status monitoring
• DIP-Switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10 or 100 Mb/s mode
• Power supply with 5 V included
• Power consumption: 2,5 W
• Dimensions (LxWxH): ca. 95 x 70 x 26 mm

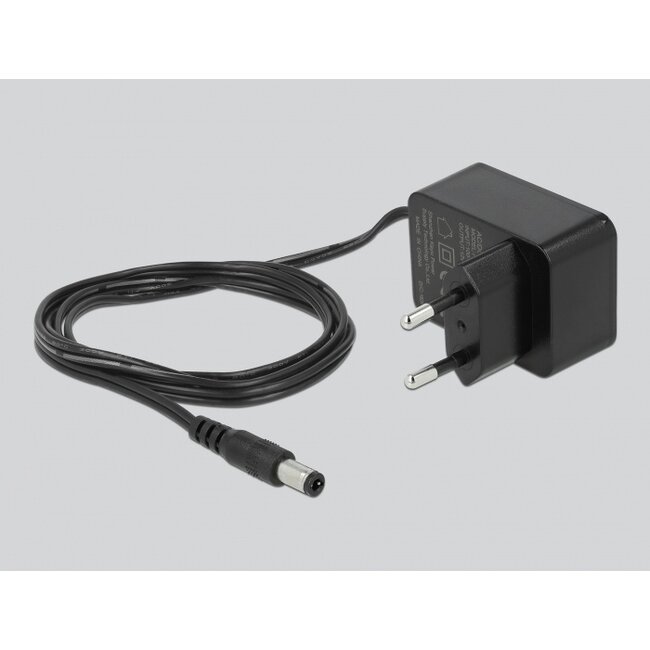

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
• Media Converter
• Power supply
• User manual
