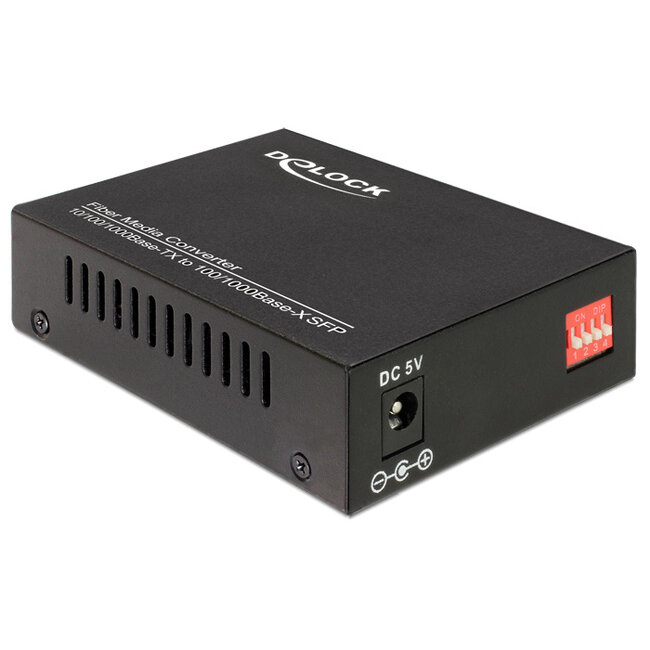

This Gigabit Ethernet Media Converter by Delock can be used to expand a network with an optical fiber interface. In the SFP slot, an optional 100 Mb/s or 1 Gb/s SFP module can be used.

01/2019 New power supply

• Connectors:
1 x SFP slot for 100/1000Base-X SFP module (SFP module not included)
1 x RJ45 jack for 10/100/1000 Mb/s Base-T
1 x DC jack 5.5 x 2.1 mm (power)
• Data transfer rate up to 1 Gb/s
• 6 LEDs for status monitoring
• DIP-switch for configuration of LFP (Link Fault Pass Through)
• Supports IEEE 802.3 / 802.3u / 802.3ab / 802.3z
• Power consumption: 2.5 W
• Metal housing
• Fanless
• Operating temperature: 0 °C ~ 55 °C
• Dimensions (LxWxH): ca. 94 x 70 x 26 mm

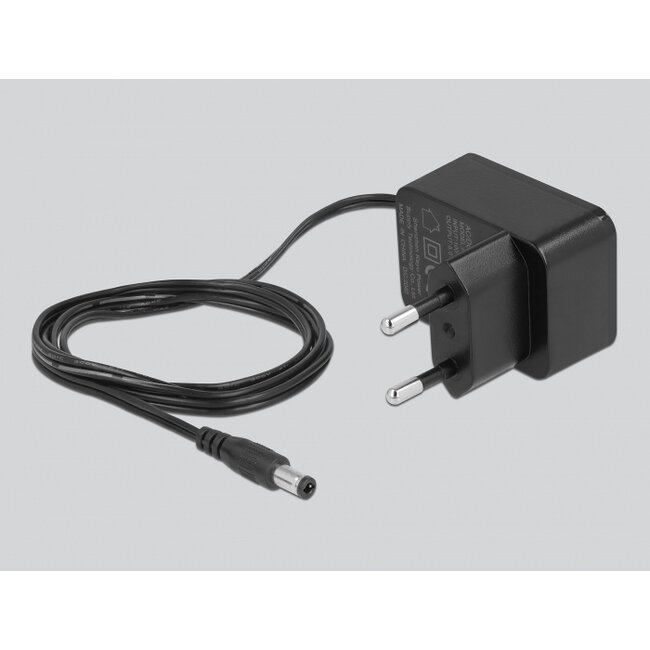

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm

• 100/1000Base-X SFP module
• Device with one free RJ45 port

Package content

• Media Converter
• Power supply
• User manual
