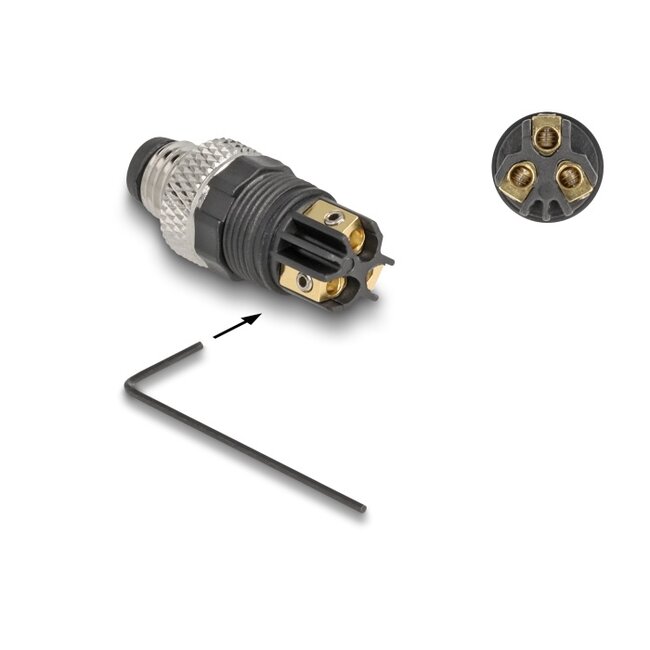

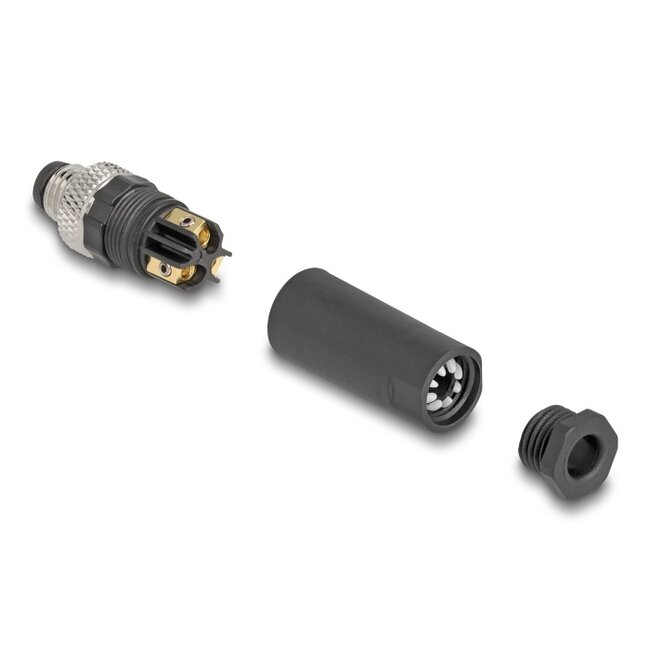

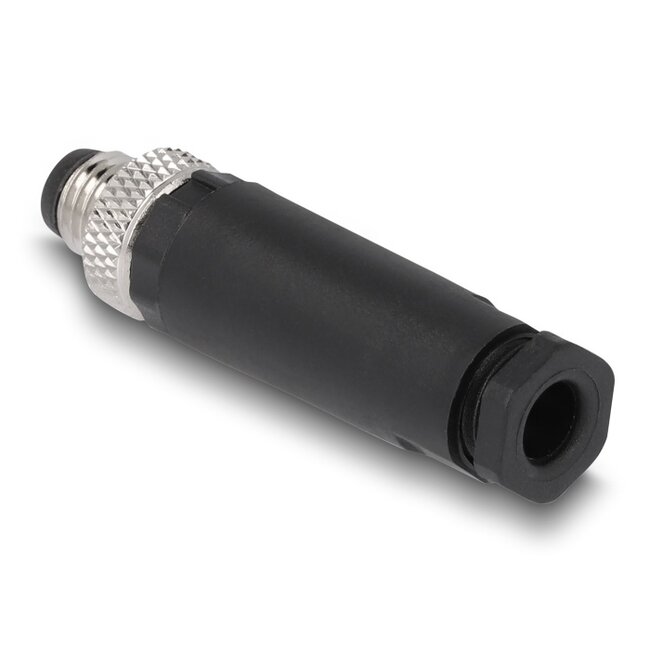

This connector by Delock can be used to connect a cable via a screw terminal connection with an M8 connector, e.g. for machine control or automation.

• Connectors:
1 x M8 male A-coded 3 pin
3 x screw terminal
• Useable for a cable gauge range from 26 to 22 AWG (0.13 - 0.32 mm²)
• Operating voltage: max. 60 V
• Current: max. 3 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Cable entry max. 3.0 - 4.5 mm
• Thread size: M8 x 1.0 mm
• Housing material: PA66
• Colour: black
• Dimensions (LxD): ca. 45 x 12.1 mm

• A free M8 female port

Package content

• Connector

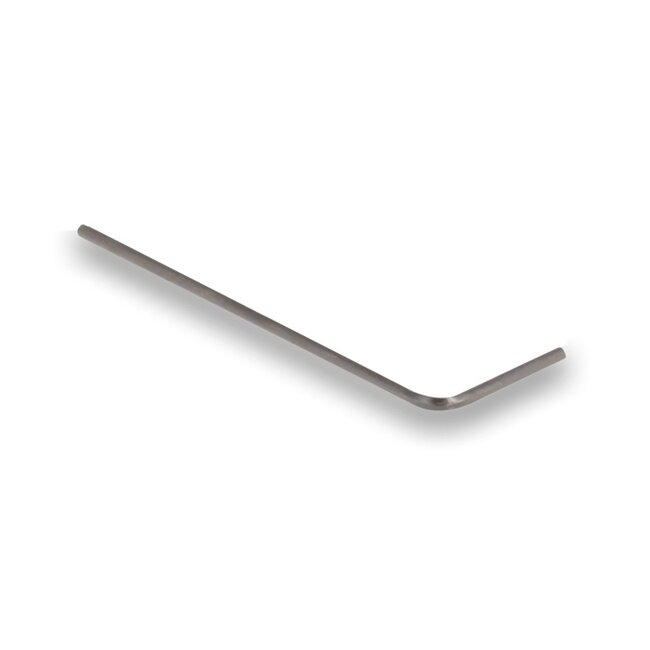

• Allen key
