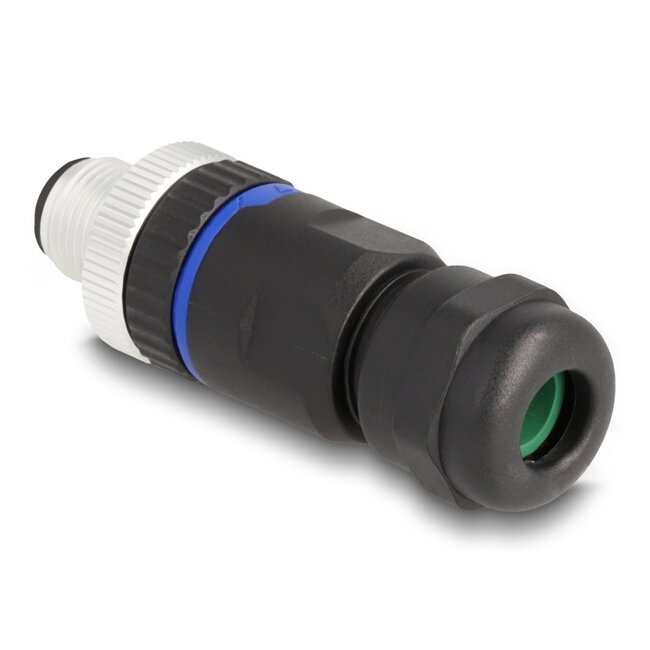

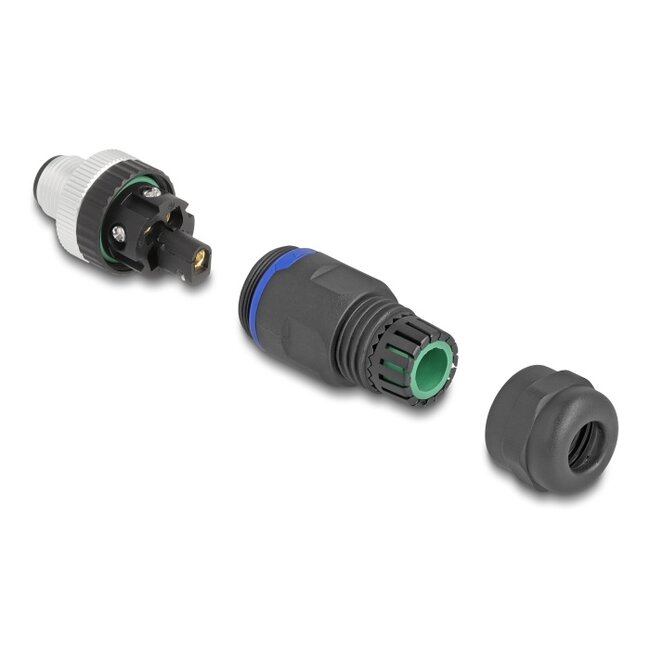

This connector by Delock can be used to connect a cable via a screw terminal connection with an M12 connector, e.g. for machine control or automation.
Specification• Connectors:
1 x M12 male A-coded 5 pin

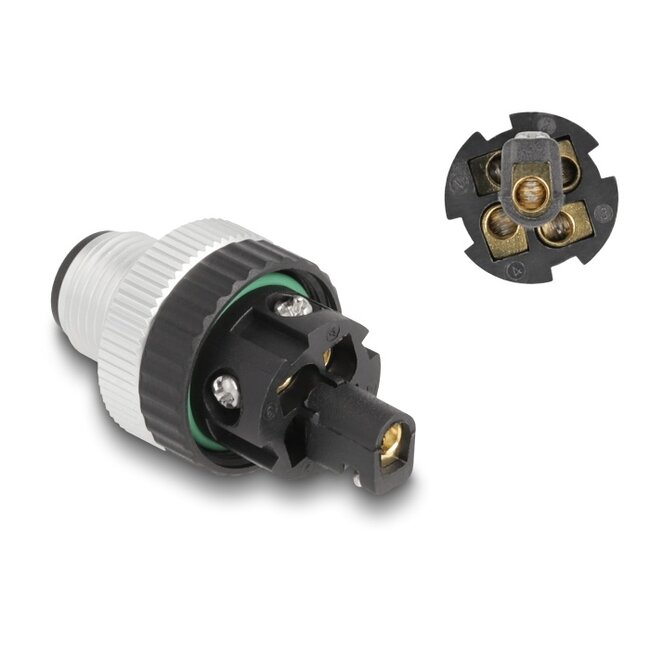

5 x screw terminal
• Useable for a cable gauge range from 26 to 20 AWG (0.13 - 0.52 mm²)
• Operating voltage: max. 60 V
• Current: max. 4 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Cable entry max. 3.0 - 8 mm
• Thread size: M12 x 1.0 mm
• Housing material: PA66
• Colour: black

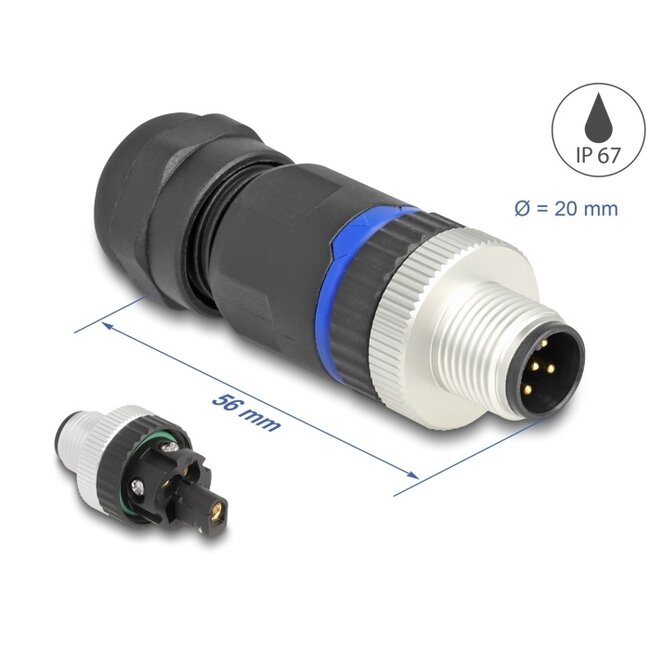

• Dimensions (LxD): ca. 56 x 20 mm
• A free M12 female port
Package content
• Connector
