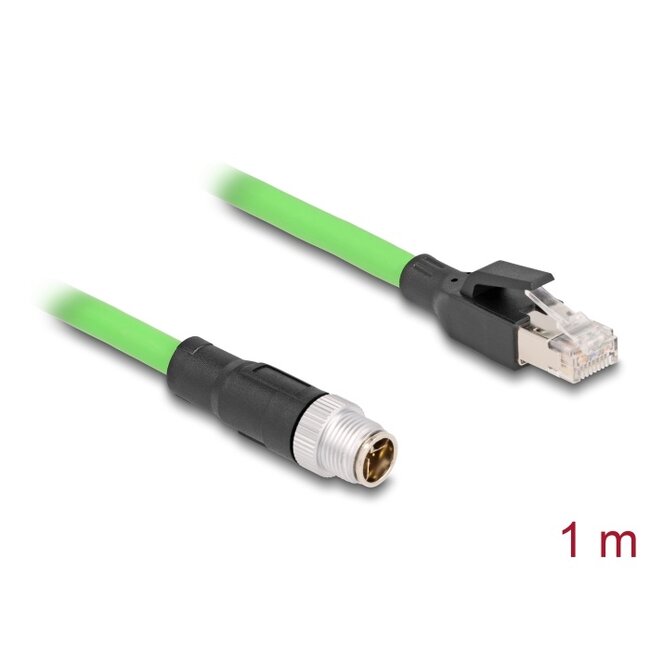

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
Drag chain suitability
The high-quality processed cable supports up to 10 million bending cycles, therefore it is also suitable for use in drag chains and other harsh environments.
The cable sheath made of polyurethane (PUR) is oil and UV resistant, so the cable also meets the high requirements for industrial applications, e.g. in the tool and automation sector.
• Connectors:
1 x M12 male X-coded 8 pin
1 x RJ45 plug
• Suitable for drag chains
• SF/UTP
• Shielding: aluminium foil, tinned copper braiding
• Copper conductor
• Cable gauge: 26 AWG (0.129 mm²)
• Cable diameter: ca. 6.8 mm
• Cable jacket material: PUR (TPU)
• Max. number of bending cycles: 10,000,000
• Smallest bending radius:
54.4 mm with fixed installation
102.0 mm with flexible installation
• Oil-resistant
• UV-resistant
• Flammability class: UL 94
• Operating temperature:
-25 °C ~ 80 °C with fixed installation
-25 °C ~ 70 °C with flexible installation
• Protection class: IP67 (M12) / IP20 (RJ45)
• Colour: green
• Length incl. connectors: ca. 1 m
• M12 cable
