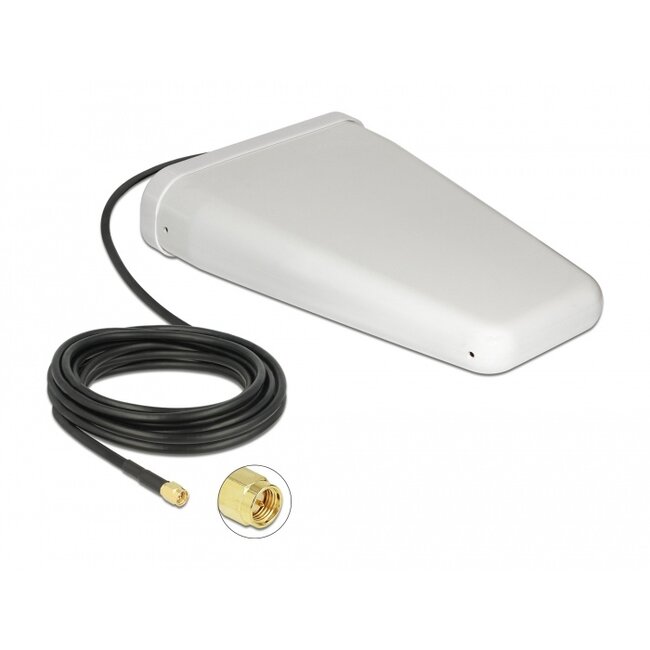

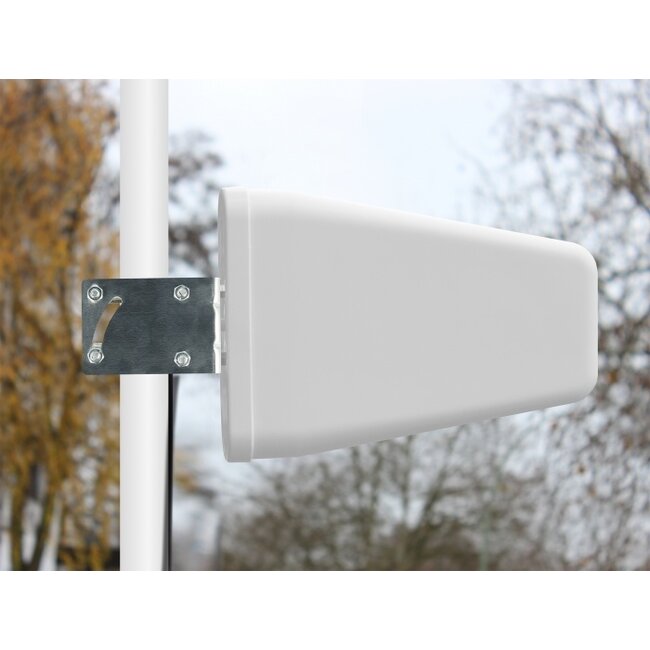

This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
Specification• Connector: 1 x SMA plug
• Frequency range: 698 - 960 MHz, 1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 7 - 9 dBi
• Polarisation: vertical
• Horizontal beam angle: 90°
• Vertical beam angle: 60°
• Impedance: 50 Ohm
• VSWR: 2.0
• Operating temperature: -40 °C ~ 60 °C
• Housing material: ABS UV resistant
• Colour: white
• Dimensions (LxWxH): ca. 290 x 210 x 65 mm
• Cable type: coaxial
• Cable type: RG-58
• Cable colour: black
• Cable attenuation: 0.5 dB @ 800 MHz per meter
• Cable diameter: ca. 5 mm
• Cable length incl. connectors: ca. 5 m
• Device with a free SMA jack
Package content
• LTE antenna

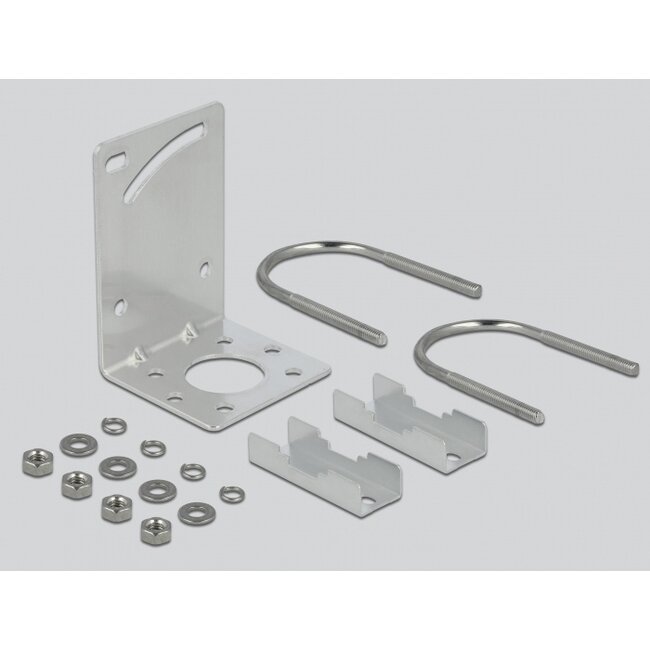

• Pole mounting kit
