This antenna by Delock allows the usage of different LTE, GSM and UMTS bands indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification• Connector: 1 x SMA plug
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• ZigBee, Bluetooth, WLAN 2.4 GHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 2 - 6.5 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• VBW vertical beamwidth: 60°
• Transmission power: max. 100 W
• Antenna type: rod antenna
• Operating temperature: -40 °C ~ 70 °C
• Housing material: GFRP UV resistant
• Colour: white
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable length incl. connectors: ca. 30 cm
• Antenna length: ca. 28 cm
• Diameter:
ca. 22.00 mm (max.)
ca. 9.00 mm (SMA)
• Device with a free SMA jack
Package content
• LTE antenna

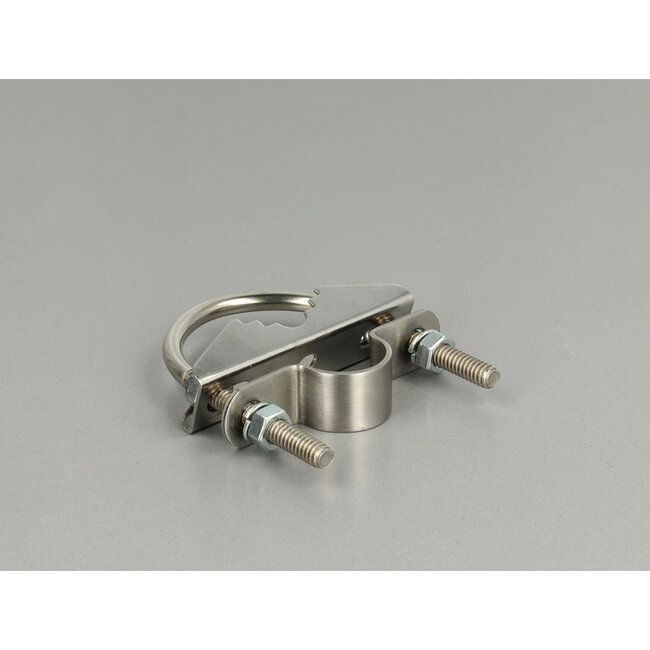

• Pole mounting kit
